Weichai Steyr MC13 series marine engine power 361kw 368kw with a wide range speed, good reliability
Model |
MC13.49C001 |
MC13.50C001 |
Type |
in-line, water-cooled, four-stroke, turbocharged and intercooled, high pressure common rail |
|
NO. of cylinder |
6 |
|
NO. of valve/cylinder |
4 |
|
|
Bore×stroke (mm×mm) |
126×166 |
|
|
Displacement (L) |
12.419 |
|
Compression ratio |
19:01 |
|
Rated power/speed (kW/r/min) |
361/1900 |
368/1900 |
|
Net weight (kg) |
975 |
|

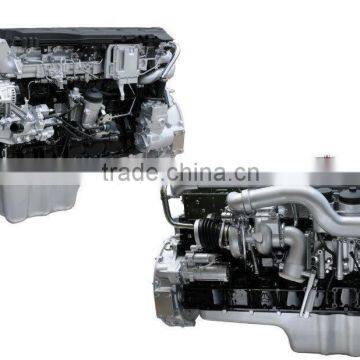

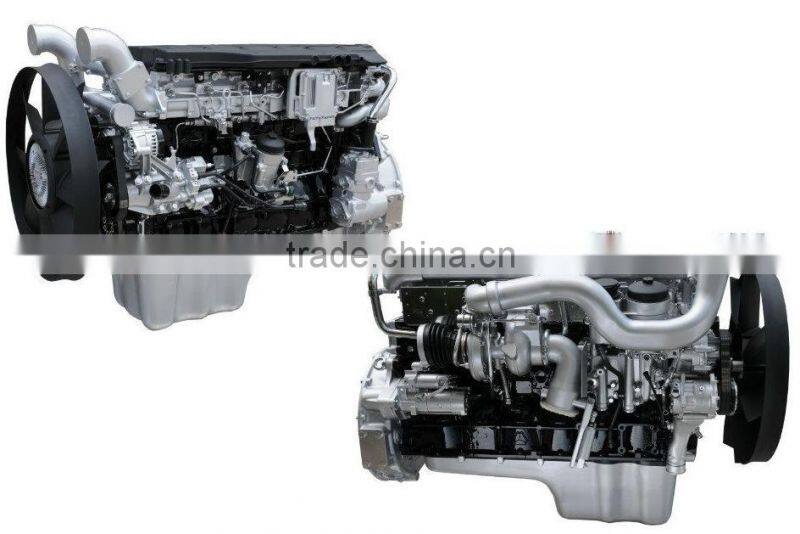

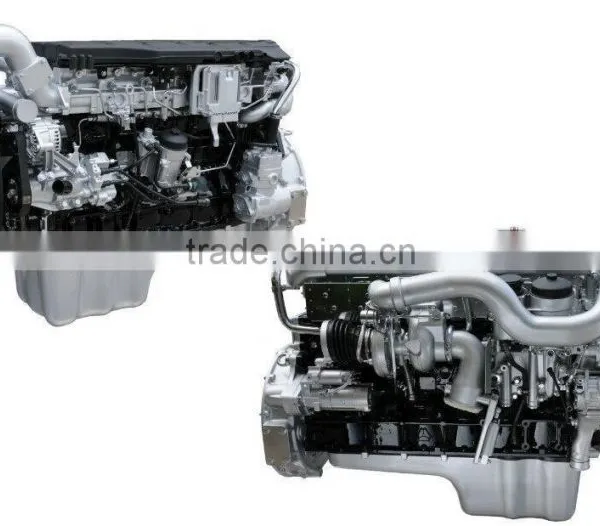

MC13 marine diesel engine
Product overview
The SINOTRUK’s MC13 series engine synchronized product technology, production process ,quality standards and release process with German man company‘s D20,D26series engine. The main fittings adopt mainly MAN company original brand such as a world-class supplier. MC13 engine has synchronous production with Germany, meet the road National standard IV- V and non road Ⅲ. Its performance, fuel economy, reliability, durability, noise and other indexes reached the international leading level.
Technical characteristics:
Vermicular cast iron cylinder block
Sharply improves stiffness and strength of the cylinder body, reduce weight
Integral cylinder head
Good sealing, high strength, good rigidity, high reliability
Overhead camshaft
Valve-train stiffness sharply improved, precision control of the gas phase, improves combustion, and at the same time reduces the mechanical damage and failure rate
Independent cooling waterway and lubricating oil way in cylinder block and cylinder head
Eliminate risk of oil and water leakage between cylinder block and cylinder head; significantly improve the cooling performance and reliability.
The rear timing gear chamber
Effectively reduce gear noise
Advanced modular design
25% fewer parts, reduce the sealing components, reduce the leakage risk.
Long life B10 life raise up to 1.5 million kilometers
Long oil change cycle Oil change mileage is 60000 kilometers
Economic and efficient The minimum specific fuel consumption is 186g/kW.h
Powerful MC11 maximum rated power is 540 Ps, maximum torque of 2500Nm
