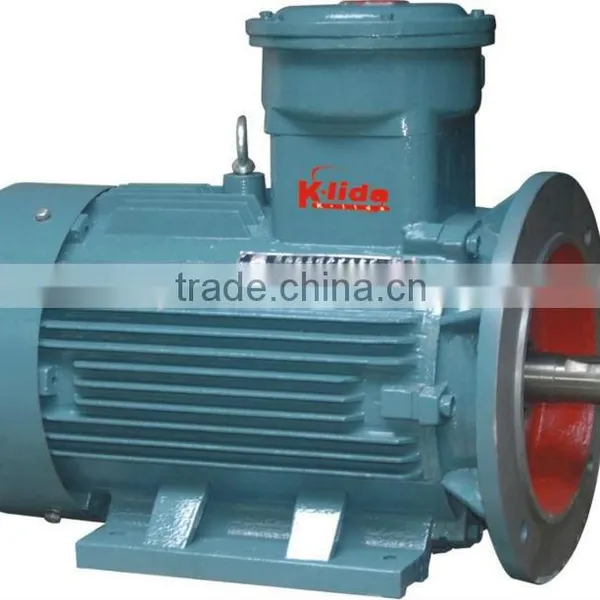

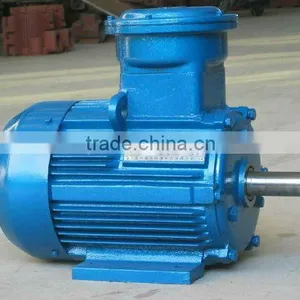

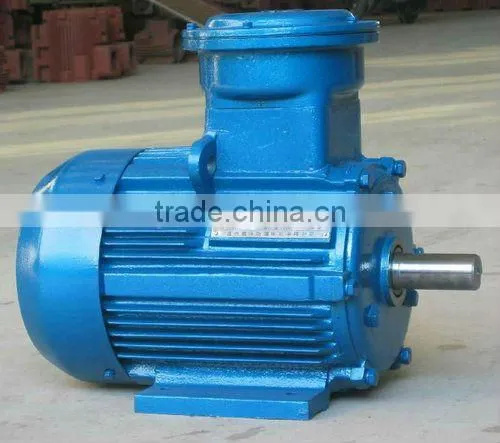

Hot sell YB2 Series high-voltage Explosion-Proof Three Phase AC Motor

Specifications

Nanyang YB2 explosion-proof motor
1,High efficiency, Energy-saving
2,Low noise, Little vibration
3,Coolling method: IC411

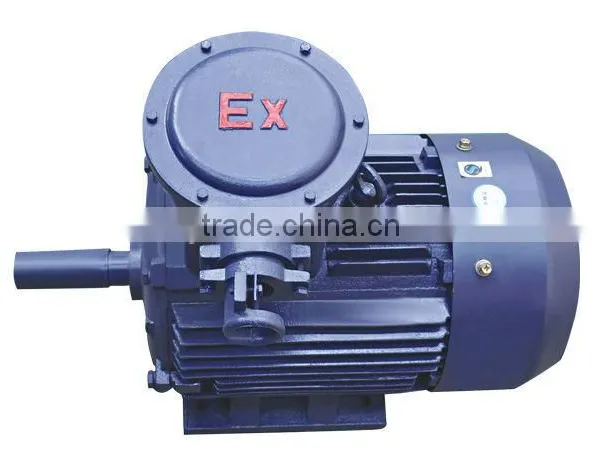

            YB2 Series high-voltage Explosion-Proof Three Phase AC Motor

Advantage:

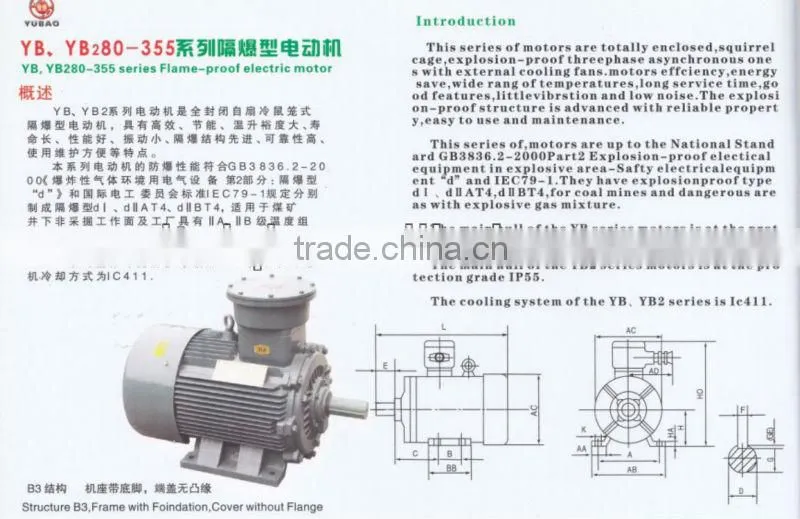

YB2 Series Explosion-Proof Three Phase AC Motor, safety performance of this products confirms to the standard of GB 3836.1-2000, electric equipment for using in the explosive gas environment and GB 3836.2-2000, electric equipment for using in the explosive gas environment. The explosion-proof mark is "Exdl" and "ExdllBT4", suitable for the non-mining working area in underground mine or where there are explosive gas mixtures in factories.

Ideal for the coal mine where methane and coal dust may be present (EX dI) and dangerous explosion areas (EX dIIBT4) in the plant with the class IIB and temperature T1~T4 flammable gas.



1. Ambinent tempertuer should not be more than 40ºC
2. The elevation should not be exceed 1000 meters.
3. The relative humindity should not be more than 90%.
4. Rated Frequency: 50Hz
5. Rated voltage: 380V 660V 380V/660V/1140V/6000V/10000V
6. Operation mode is S1
7. Protection degree: IP55, Insulation class: F.









Introduction:

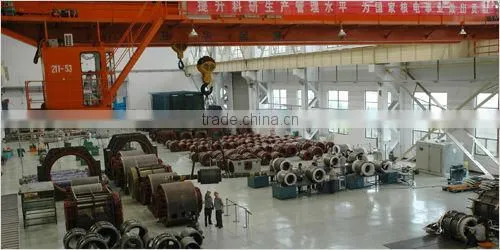

Nanyang Explosion Protection Group Co. Ltd  locates in Nanyang city, Henan province, is the largest scientific research and production base of explosion-proof motors in China, the national export base for electro-mechanic products, and the national innovation enterprise as well as the chairman member of Ex motors branch of CEEIA.

 Its main products include various explosion-proof motors, general-purpose motors, motor/generators, light-weighted generators, Ex-blowers, explosion-proof electric apparatus as well as monitoring instruments with total 218 series, 2388 varieties and 96233 specifications, covering motors from 0.12kW to 100MW applicable for many industries like petroleum, coal mine, chemical, metallurgical, electric power, military industry, nuclear power and so on. The annual production capability is 10 million kW registered trademark is “CNE”.



 CNE owns 5 subsidiaries, locating in 3 cities, Nanyang, Shanghai and Chenzhou. Mr. Wei Huajun is the president and legal representative of the company.
