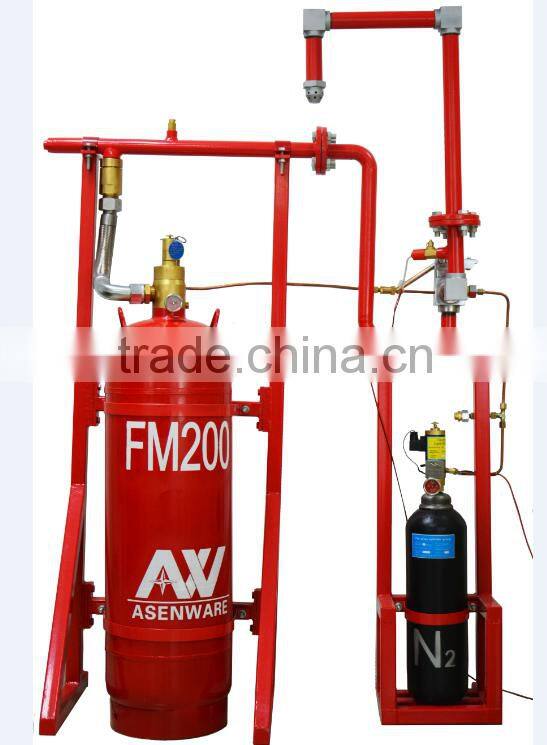

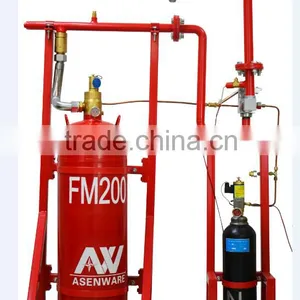

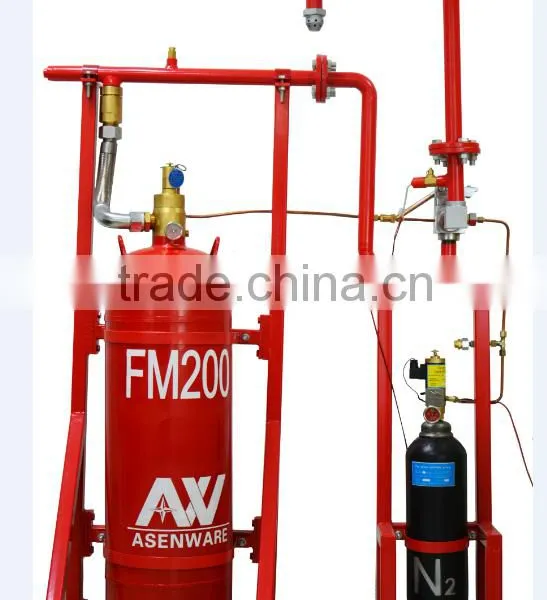

Asenware fm200 fire fighting equipments with N2 driving pipe network type Specification.
Table 1 HFC-227ea Physical Properties:
Molecular Weight :170
1.013bar absolute boiling point at atmospheric pressure: -16.4℃
Freezing Point :-131.1℃
Critical temperature :101.7℃
Critical pressure :2.912MPa
Critical density : 621kg/m 3
Steam pressure at 20 ℃ : 0.391MPa
Liquid density at 20 ℃:1407 kg/m
Saturated vapor density at 20 ℃: 31.176 kg/m 3
Specific volume of steam when overvoltage at 20 ℃ 0.1013MPa:0.1373kg/m 3
Asenware fm200 fire fighting equipments with N2 driving pipe network type Technical Performance:
Performance :Technical instructions
Purity :≥99.6% Mass Ratio
Acidity :≤3×10 -4 % Mass Ratio
Water content :≤1×10 -3 % Mass Ratio(≤10ppm)
Non-volatile residue :≤0.01% Mass Ratio
Suspended solids :Invisible
Heptafluoropropane at room temperature is a colorless, odorless, non-conductive, may be stored in the low-pressure liquefied gas fire extinguishing agent, a density of about 6 times the air density (the physical properties shown in Table 1) of the formula CF3CHFCF3, trade name HFC-227ea, foreign called FM-200 (its technical performance are shown in Table 2), the extinguishing agent suitable for total floodingfire extinguishing system.
When the activity of free radicals generated by the decomposition extinguishing agent is sprayed to the protection zone, flame or fire extinguishing agent contact hot surfaces, the radical chain reaction seize combustion generated active substances, destruction combustion process chain transfer, and ultimately achieve the purpose of extinguishing the ways a chemical fire, cooled, diluted or cut off the air and other physical effect is minimal.
Because of its high performance fire, the equipment clean, does not destroy the ozone layer, etc., is the
alternative to Halon fire extinguishing agent of choice for products, now available in many countries and regions of the world has been widely used.in electricity, water conservancy, metallurgy, petrochemical, telecommunications, industrial and mining enterprises, banking, civil aviation and other industries of various important places of protection in our country, such as a computer room,communications room, precision instrument rooms, physics and chemistry laboratories, generator room, changed appliances, books, libraries, databases, archives,treasury, oil platforms, hydraulic oil tanks of flammable liquids and other combustibleroom and easy to produce electrical fire hazard areas..
