HDMI Cable 1.4,19PIN,for HDTV

Specifications

1.High speed
2.Version:1.3b/c,1.4a,1.4
3.24K Gold plated connectors
4.FCC,CE,ROHS,UL Compliance
5.Supports 1080P,1440P

JL1101(Type A-A),19PIN,HDMI male-male,high speed round cable:

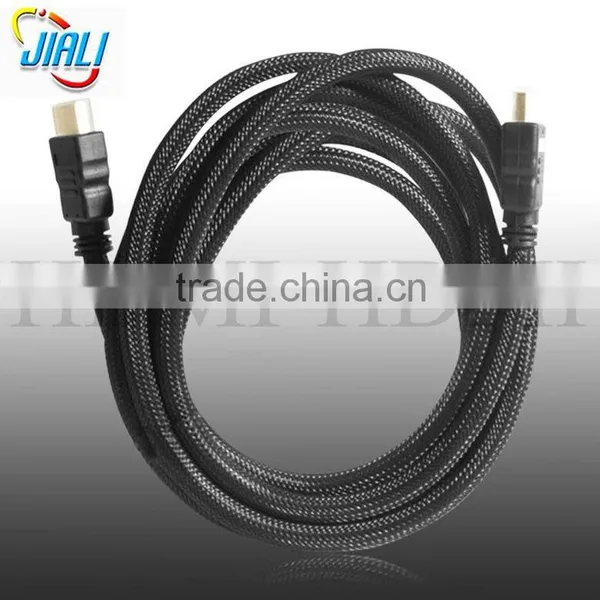

a) without Nylon jacket,b) with Nylon jacket,c) with ferrites;



Normal wire gauge:

a) 1.3 V: (30AWG*1P+D+Wings & AL Foil)*4C+30AWG*7C+AL Foil+D+Braid+PVC;

b) 1.4 V: (30AWG*1P+D+Wings & AL Foil)*5C+30AWG*4C+AL Foil+D+Braid+PVC;



Features:

1) Good quality & pretty competitive prices.Be used in many electronical devices which

     contain DVD player,video game player(PS2,PS3 & X-BOX 360),home theater,HDTV etc;

2) 24K gold-plated connector ensure superior signal transfer and lifetime of maximum performance;

3) Inside conductor: 99.99% pure high quality oxgen-free copper;

   a)1.3 V:4 screened twisted pairs of OFC stranded conductors with foam PE insulation layer;

  b)1.4 V:5 screened twisted pairs of OFC stranded conductors with foam PE insulation layer;

  For improving the high frequency response for wide-bandwidth and efficient signal transfer;

4) Each twisted pair and 1 ground wire are wrapped around by wings & AL Foil;

5) High density triple shielding for maximum rejection of EMI and RFI;

6) Compatible with multiple audio formats from stereo to multi-channel sound;

7) Transfer digital audio and video signals at warp speed of 10.2 gigabytes per second;



Electrical Characteristics:

1) Conductor resistance: AT 20 °C Max 28 AWG: 237.25 ohm/km;

2) Fext: <-26dB; 3) Impedance: 100±10ohm;
4) Attenuation: at 0.3~825MHz<8dB/5m,0.825~2.745GHz<21dB/5m,2.745~4.125GHz<30dB/5m;
7) Time delay skew: within a pair 151 ps Max/5m; 8) Between pair 151 ps Max/5m;
9) Version: HDMI1.3/1.4; 10) AWG: 26/28/30 (optional); 11) Plated: gold/nickel (optional);
