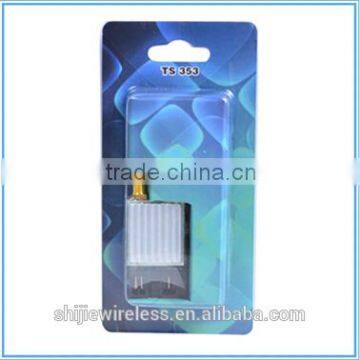

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane thumbnail-1
FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane thumbnail-2
FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane photo-1
FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane photo-2
US$ 38.00 - 38.00 MOQ: 10 Units
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Other, Power
Material:
Other, Metal
Contact Supplier Request Quote Chat Now
Shenzhen Shijie Wireless Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Other, Power
Material Other, Metal
Scale Other, 1:1
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name shijie wireless
Model Number TS353
Product Description
Specificaitons:
Item Name:  FPV 5.8G Transmitter TS353
Video Format supported: NTSC/PAL
Working Frequency: 5645-5945Mhz
Antenna Connection: SMA-pin
Power Input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
Transmitting Current: 220mA
Dimension: 55 x 26 x 17mm (excluding antenna)

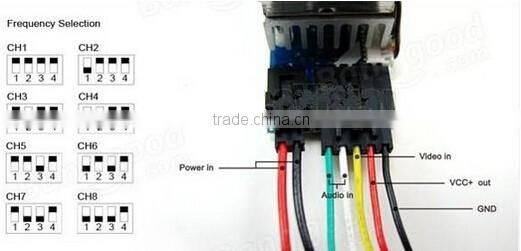

Working Frequency :
CH1: 5705
CH2: 5685
CH3: 5665
CH4: 5645
CH5: 5885
CH6: 5905
CH7: 5925
CH8: 5945

Features:
FPV 5.8G 400mW AV transmitting module, a wonderful choice for avoiding interference for who using 2.4G radio system
Dimension and weight is similar to 200mw TX, yet the range is extended.
Compare to the 500mw version which with cooling fan installed, the 400mw version is lighter, and consuming less power (longer in-air time).
Also eliminated vibration to video transmitting system caused by cooling fan.
The 400mw version is a well balanced solution among weight, dimension, range, power consumption etc

Package Includes:
1 x transmitting TS353
1 x TX antenna
1 x wires

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane



Different connectors can be chose:

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane



Factory View:

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane



Certifications:

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC PlaneFPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane



Shipment way:

FPV 400mW TS353 5.8GHz 8CH AV Video Transmitter TX 3.5KM for RC Plane
