Home > Security & Protection > Fire Control > Fire Alarm & Smoke Detector > Asenware High Performance uv Detector Fire Protection System
Asenware High Performance uv Detector Fire Protection System
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Model Number:
AW-FD602-UV
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer Directly Sale Fire Alarm Break Glass With Best PriceNegotiableMOQ: 1 Set -
Economic Conventional 108db Big Sound Fire Siren HooterUS$ 1 - 5MOQ: 100 Pieces
-
Home Protect Fire Alarm Siren Speaker High QualityUS$ 1 - 9MOQ: 100 Pieces
-
Asenware Conventional System Fire Alarm Eletric Horn HooterUS$ 1 - 5MOQ: 100 Pieces
-
For Fire Fighting Manual Waterproof Fire Alarm Bell Hot SellingUS$ 1 - 10MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ASENWARE
Model Number
AW-FD602-UV

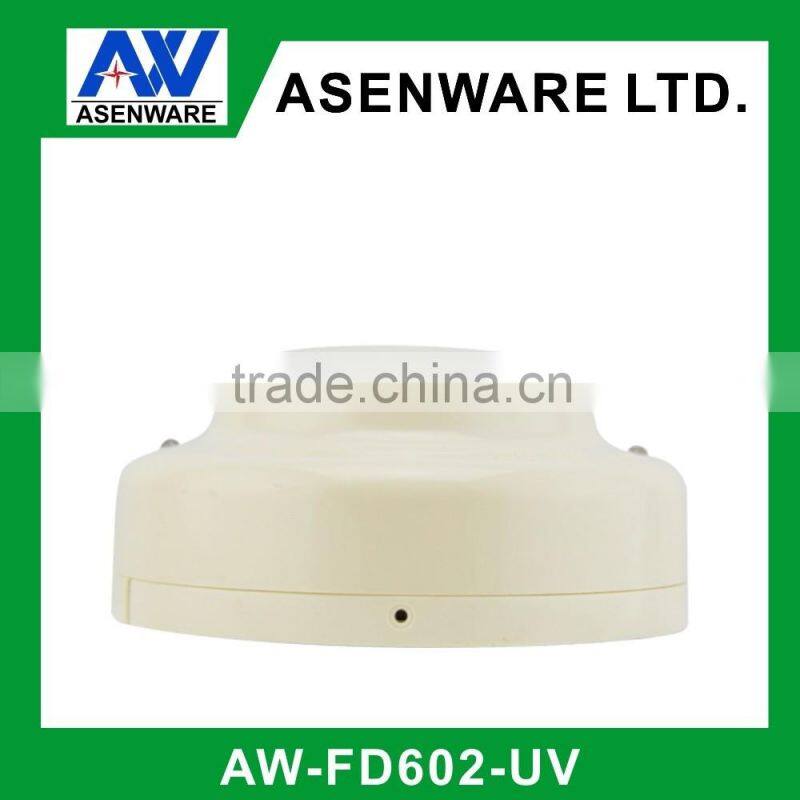

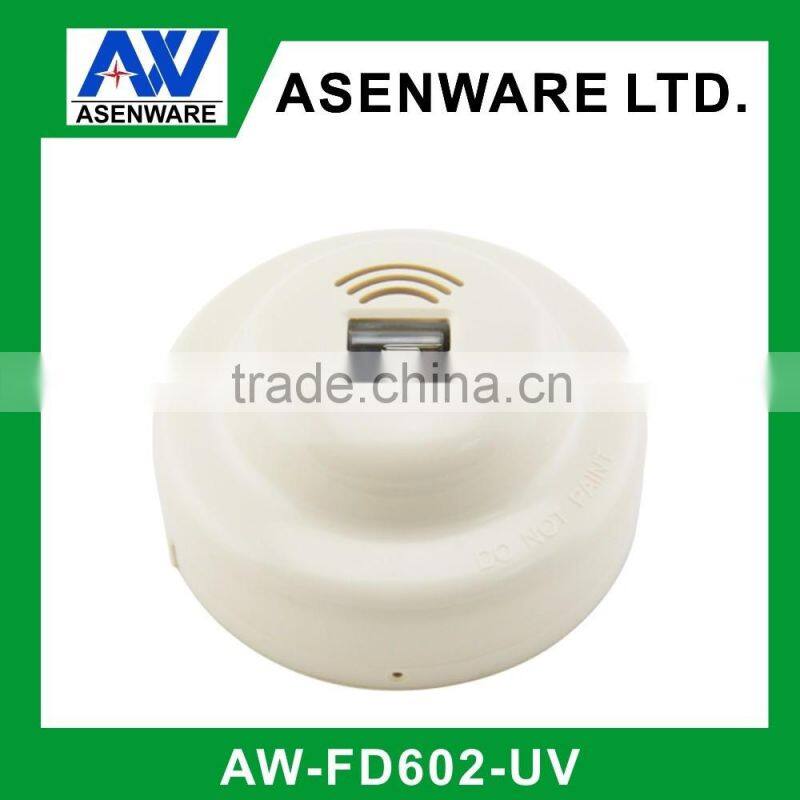

Asenware high performance uv detector fire protection system
Product Description
| Name | Conventional UV Flame Detector |
| Operating Voltage Range | 12 to 30 VDC Volts |
| Standby Current | ≤10 mA @ 24 VDC |
| Alarm Current | ≤30 mA @ 24 VDC |
| Detection Angle | 110 degree |
| Detection Sensitivity | Grade I, 25m@flame |
| Relay Contact Load | 1A@DC24V |
| Protection rating | IP 32 |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
Main Features
1. Ultraviolet only flame detector designed to detect fires and provide alarm outputs directly
from the detector while maintaining false alarm immunity.
2. It detects in the ultraviolet (UV) spectral range for optimized speed of response.
3. Fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high
hazard applicationssuch as petrochemical plants, munitions factories and other areas where flammable or
explosive liquids or solids are handled or stored.
4. The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable,
dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil,
tolerance of fume, and humidity.
5. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by 2Kg
ethanol in a Container of Base 33cmX33cm, Height 5cm.
Product show
Quality Assurance
Certifications
Company Information
Our Services
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
