Top quality battery operated heat detector, for fire fighting heat alarm
Specification:
Model No. |
AW-CTD321 |
AW-CTD821 |
AW-CTD821-4W |
AW-CTD822 |
|||
Photo |
|
|
|
|
|||
Product name |
Advantage 2 wire conventional heat detector |
Advantage 2 wire conventional heat detector |
Advantage 4 wire conventional heat detector |
Advantage heat detector with strobe sounder |
|||
Fire sensor |
Rate of rise temperature sensor |
||||||
Sensitivity |
7.1°C/5S AIR |
||||||
Control mode |
Advantage software |
||||||
Connection |
2 wire |
2 wire |
4 wire |
2 wire |
|||
Operating voltage |
DC9-28V |
||||||
Standby current |
120μA |
120μA |
NC:11mA @24VDC NO:120uA @24VDC |
120μA |
|||
Alarm current |
<35mA |
<35mA |
NC:2mA @24VDC NO:12Ma @24VDC |
<35mA |
|||
Material |
Shell: Fire resistance plastic Connector: Stainless steel |
||||||
Product size |
Diameter: 99.45 mm, height: 48.2mm |
||||||
Packing |
Carton |
||||||
Carton quantity |
10PCS/carton, 10 carton/box |
||||||
Carton/box size |
Carton: 20.5×23.5×11cm; Box: 43×27×58cm |
||||||
|
Carton/Box weight |
1.2kg/Carton; 12.5kg/Box |
1.39 kg/Carton 13.9 kg/Box |
1.39 kg/Carton 13.9 kg/Box |
1.39 kg/Carton 13.9 kg/Box |
|||
Work temperature |
-10℃~50℃ |
||||||
Work humidity |
95% Relative humidity, non-condensing |
||||||
Customization |
Logo, color |
||||||
Standards |
ISO9000,EN54-7, CE,SASO |
||||||

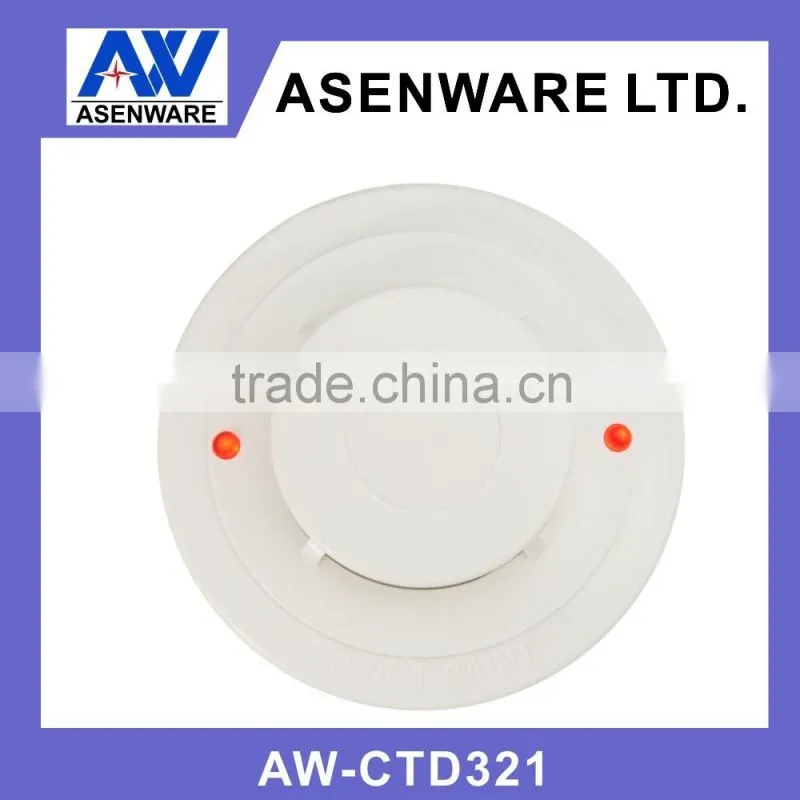

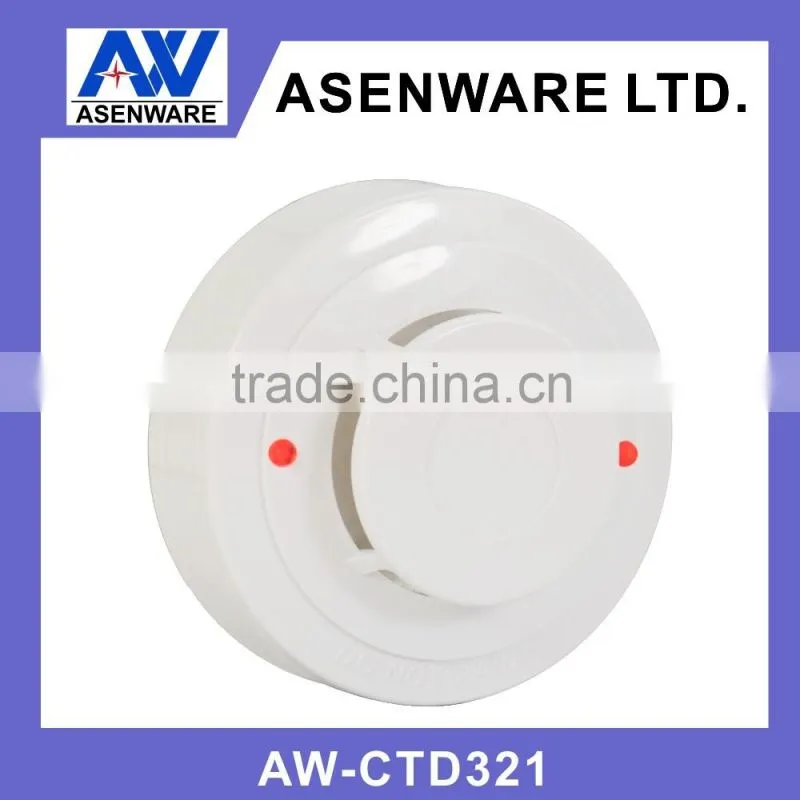

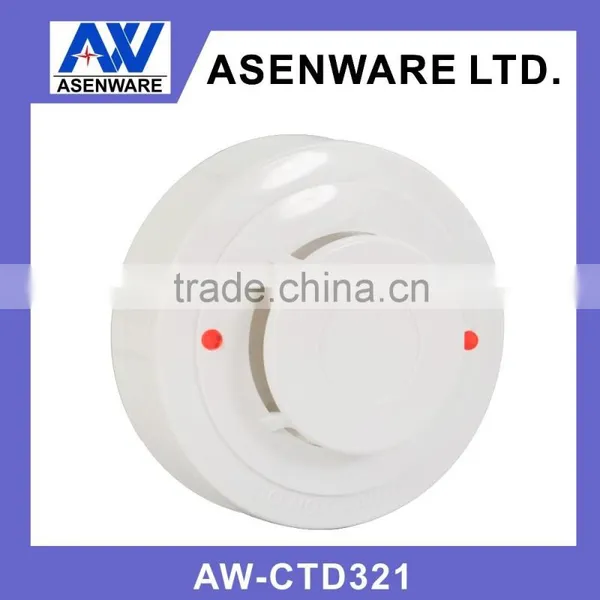

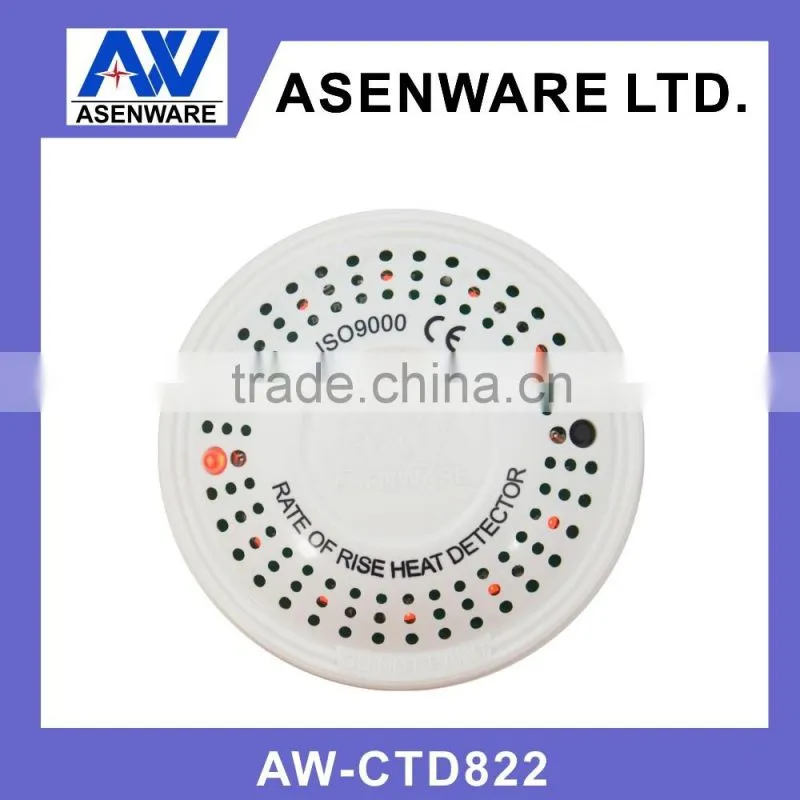

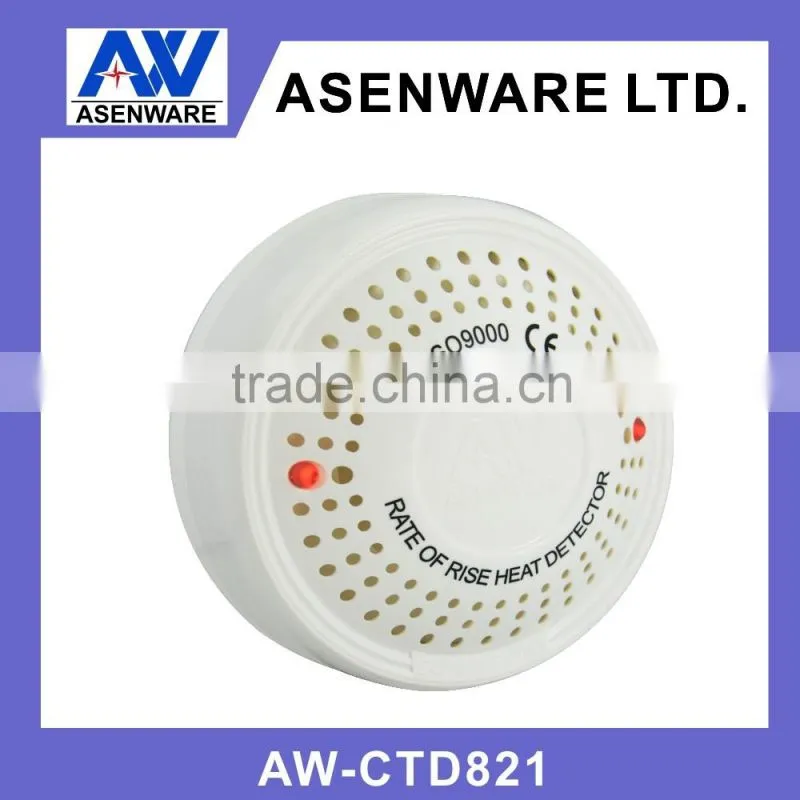

Product pictures:
