Analog cctv camara de vigilancia
| Model No.: AW-C77 Analog cctv camara de vigilancia | |
| Signal System | PAL |
| Horizontal Resolution | 700TVL |
| Max. Resolution | 976*494 |
| Lens | 22x optical zoom |
| Focus distance | 3.3~73mm |
| Minimum Illumination | Color: 0.2LUX/ IR connect with OLU |
| IR Function | IR Array, 100-180m night vision |
| S/N | ≥50db(AGC OFF) |
| Auto digital shutter | Auto 1/50 ~ 1/90000se |
| BLC | ON/OFF Switchable |
| Video coding | H.264 Main Profile@Level 4.0 / MJPEG |
| Gain Mode | Auto |
| White Balance | Auto |
| OSD | English |
| Aggregation Mode | Auto/Key-control Auto |
| Video Output | 1.0Vp-p 75Ω |
| Communication Protocol | PELCO-D/PELCO-P/PELCO-D1 |
| Communication Mode | RS485 bus |
| Communication Baud Rate | 1200/2400/4800/9600BPS |
| Dome Camera Address Range | 001~255 |
| Manual Horizontal Speed Control | 6°-14°/Sec |
| Manual Vertical Speed Control | 6°-14°/Sec |
| PTZ Rotation Range | Horizontal 366 ° unlimited rotation / vertical 0 ° -90 ° |
| Auto-Reverse Function | vertical 90°,automatic reverse 180° |
| Focal Length Proportional Contro | PTZ automatically control the speed according to the length of the zoom |
| Number of Presets | 128 presets |
| Scanning Around | Two points can be free set three gears, (low-medium-high) speed can be selectable |
| Cruise Scanning | 4 Groups / each 16 presets / dwell time can be set for each point |
| Pattern Scan | 4 groups |
| Alarm Function | 4 CH input/1 CH output |
| Privacy protection Zone | 8 |
| Power Consumption | 30W |
| Adapter | DC 12V (4A) |
| Dimensions | 280*230*380mm |
| Net Weight | 6.5KG |
Analog cctv camara de vigilancia
700TVL IR PTZ Dome
- Max. resolution:976*494
- Adopting aluminum double shell sun protection design, compact structure, fine solid components, high strength shell, excellent heat dissipation;

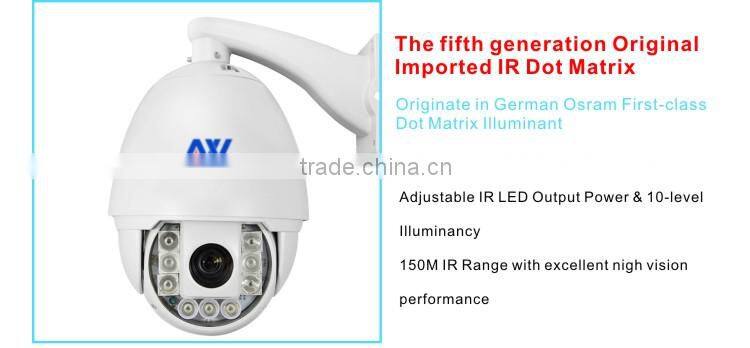

- Using the latest fifth generation array (OSRAM) light source, infrared light brightness is high, irradiation distance is long, light field is uniform , and it can use for a long tim
- DC12V power supply, low power consumption, use 9 high brightness dot array lamps of fifth generation,adopt import Finland lens, the farthest distance of night vision is up to180M
- It has a memory function, it can automatically restore the former state after power on again,
- It can use of advanced stepper motor and drive circuit to achieve operation, operation is stable , it is can use for a continuous working and a long service time
-128 presets; less than 0.1 º precision, preset targets speed 400º / s
Analog cctv camara de vigilancia
