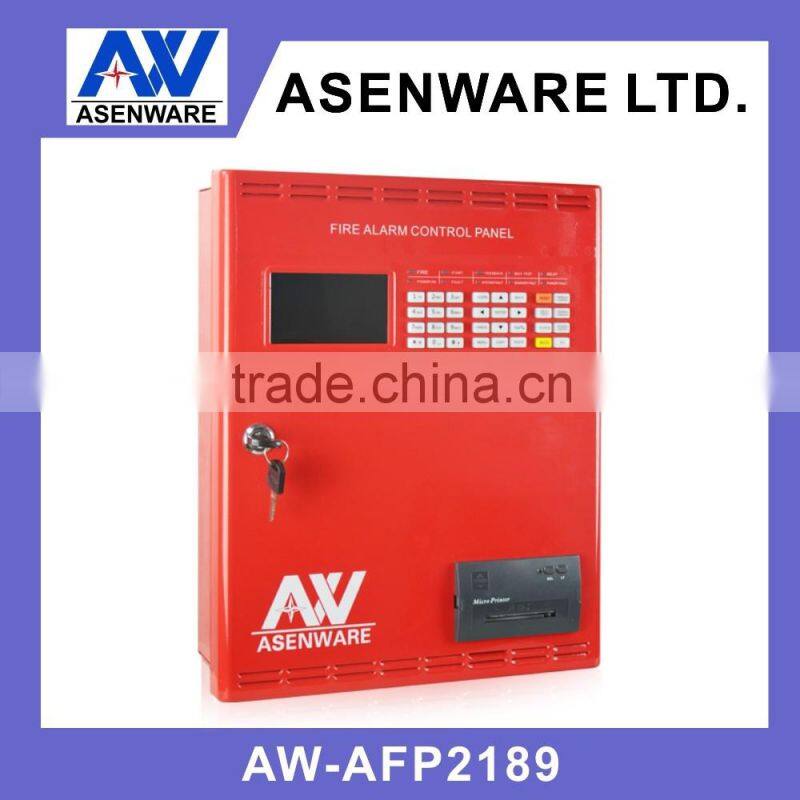

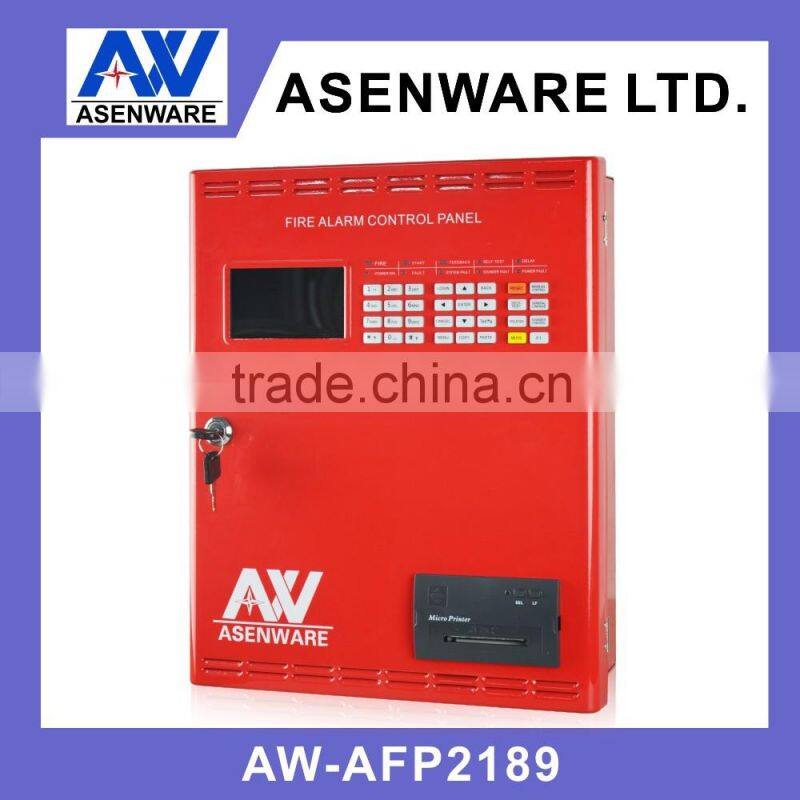

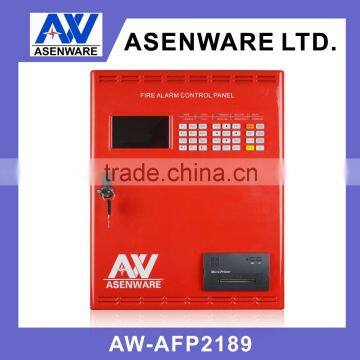

Wholesale factory price 324 address control panel for fire suppression system
Specification:
| Name | AW-AFP2189 fire alarm control panel |
| Model NO | AW-AFP2189 |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
| AC input voltage | AC 220V±20% 50Hz |
| DC power |
DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
| AC input power | 20W |

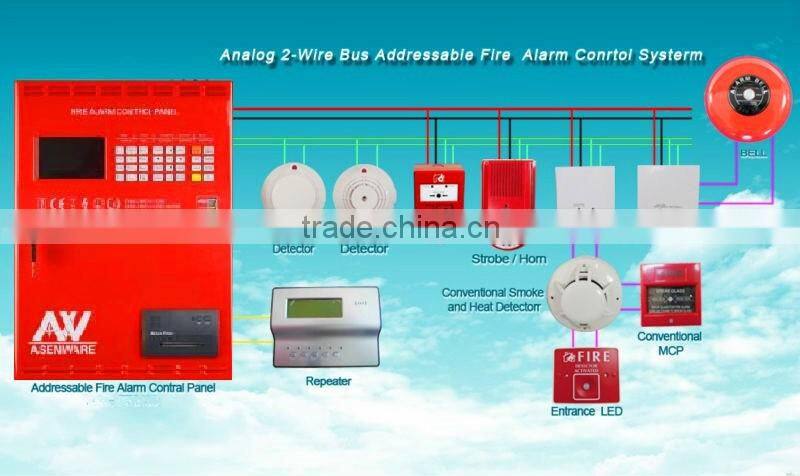

| Circuit bus | two-wire system |
| Total length | ≤1500m |
| Voltage UL of the circuit bus |
+20V≤UL≤+26V(when the DC power is operating) +24V≤UL≤+26V(when the AC power is operating) |
| System working conditions |
1. Temperature: -10°C~+50°C 2. Humidity: ≤95% 3. Power supply: AC 220V 50HZ ,DC 24V 6A 4. Output contact capacity: AC 220V 1A , DC 27.6V 3A |
Product pictures:
About us:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
