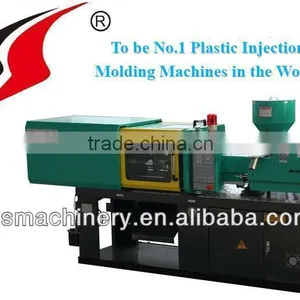

Test injection molding machine for masterbatches and pigments
We are small plastic injection molding machine manufacturer of which clamp force ranges from 32T to 270T
Main parameters of 38T plastic injection machine as below;
| Items | Parameter | Unit | Parameter Value (SSF380-K5) | |
| Injection Unit | Screw diameter | mm | A | B |
| 27 | 30 | |||
| Screw L/D ratio | L/D | 18.4 | 16.5 | |
| shot volumn (theoretical) | Cm3 | 48 | 58 | |
| injection weight(PS) | g | 44 | 53 | |
| plasticizing capacity | g/s | 4.3 | 5.9 | |
| injection rate | g/s | 35 | 43 | |
| injection pressure | Mpa | 187 | 151 | |
| screw speed | rmp | 170 | ||
| Clamping unit | clamp force | KN | 380 | |
| open stroke | mm | 235 | ||
| space between bars (W*H) | mm | 240*240 | ||
| max mould height | mm | 270 | ||
| min mould height | mm | 80 | ||
| ejector stroke | mm | 60 | ||
| ejector force | KN | 17.5 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 80 | ||
| Others | max pump pressure | Mpa | 14 | |
| pump motor power | KW | 4 | ||
| heating power | KW | 3.2 | ||
| machine dimension | m | 2.9*1.0*1.4 | ||
| machine weight | T | 1.35 | ||
| oil tank capacity | L | 90 | ||
Color chips made by this small plastic injection machine;
The color chip size is 7cm*4.5cm, with thickness 2mm-1.5mm-1mm, mold is of 2 cavities.
The raw material used to produce color chips including but not limited PET,ABS, PC,PET,TPU,PP,PE,PS.
We have plentiful experience on color test injection molding machine, we will recommend the most suitable machine per your color chips size and mold cavities requirements.
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
the average working life of the staffs is 8 years.
Organization chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
