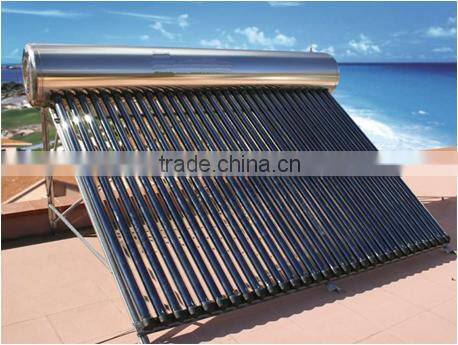

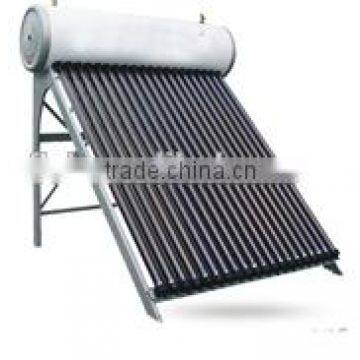

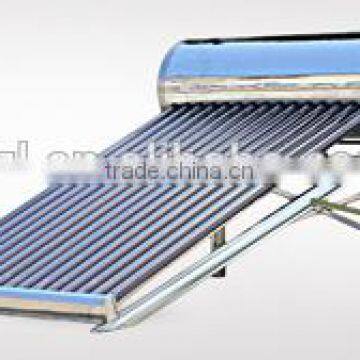

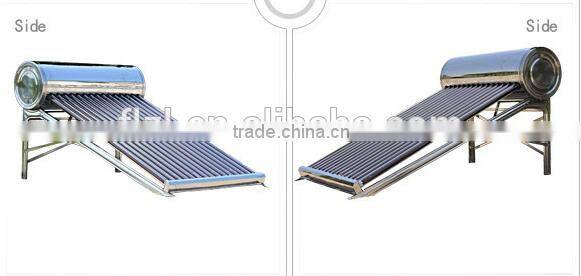

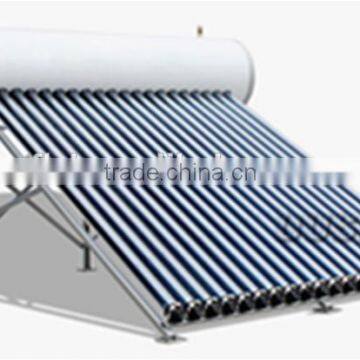

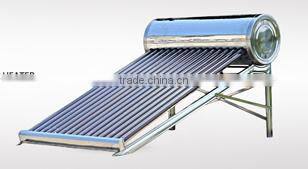

Solar Water Heater Heat Pipe Pressurized Solar Water Heater Elegant Appearance Solar Energy Water Heater Luxury Type 200L

US$ 300.00 - 300.00 MOQ: 10 Sets

Key Specifications

Type:

Evacuated Tube

Pressure:

Pressurized

Circulation Type:

Direct / Open Loop (Active)

Cixi Meizhi Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Pressurized

Circulation Type Direct / Open Loop (Active)

Heating System Batch / ICS (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Stainless Steel

Certification CB, CE

Capacity 90

Place of Origin Zhejiang, China

Brand Name OEM

Model Number MZ-IPS-15

What is a Solar Water Heater?
Solar water heaters use the solar energy from the sun to generate heat (not electricity) which

can then be used to heat water for showering, space heating, industrial processes or even

solar cooling.

Solar energy is the primary energy source for our planet as it is responsible for providing

energy for plant growth (photosythesis) and providing the warmth that makes our planet

habitable. Using solar water heaters can also provide financial savings by reducing energy costs.

How to choose the solar water heater?
Customers could choose the solar water heater according to the tank capacity, generally

speaking one adult take shower need about 50 L hot water, one children need about 30 L hot

water, so, you can choose the capacity according to the people quantity in your family.

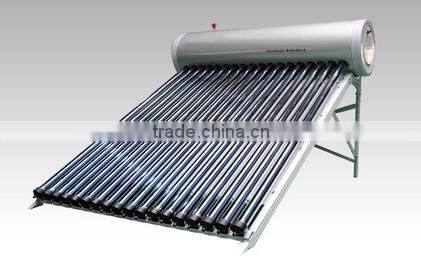

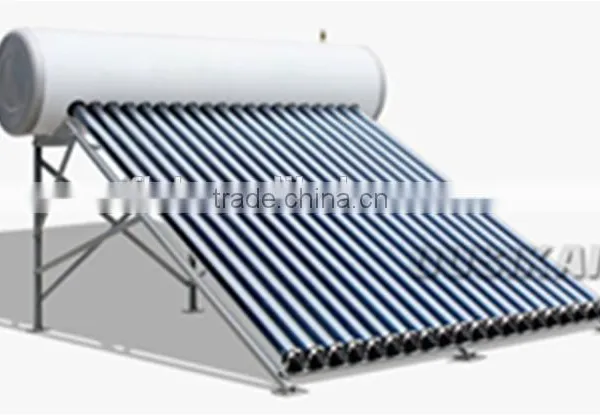

Compact Heat Pipe Pressurized Solar Water Heater

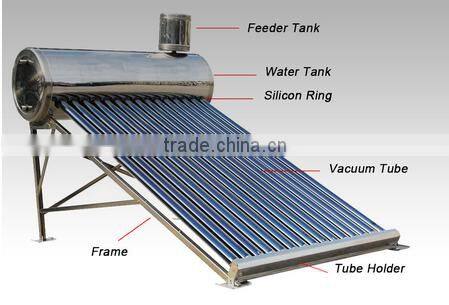

Working Principle
Vacuum tube is composed of inner and outer glass pipe, inspiratory layer,
vacuum space, inspiratory membrane. The surface of inner and outer glass tube
is plated with selective absorption layer. The layer absorb the solar energy
and turn it into heat energy, aluminum fins pass the heat energy to the heat pipe,
the liquid medium in the heat pipe is heated by the heat energy, then turns into the
gas medium, the gas medium flows up to the top of the heat pipe (condenser) and
transfer

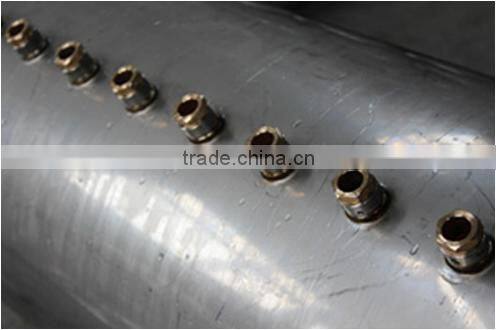

the energy to the copper manifold header heat pipe. At the same time the gas medium turns

Features
1 Strong hydraulic pressure makes your bathe more comfortable
2 module design, arbitrary combination, harmonious with the building perfectly
3 Intelligent controlling and multiple functions
4 Arbitrary combination with structure of your beautiful constructions
5 Separate installation conveniently
6 workable at anytime and enjoyable.
7 Working with assistant resource
8 Full set of original equipment, the life time will be much longer to ensure better using

Specifications
1. Inner tank: 1.2mm thickness stainless steel SUS304; 360 diameter
2.outer tank: 0.4mm thickness stainless steel or Galvanized steel, 470 diameter
3. Vacuum tube: QB-AL-N/AL-58-1800 with heat pipe
4.Frame: 1.5mm thickess Galvanized steel
5. Max. Fluid pressure (Pa): 0.6Mpa
6. Operating fluid pressure (Pa): 0.6Mpa
7. Test pressure:1.2Mpa
8.Insulation layer:55mm polyurethane integral foam
9.Heat preservation: 72hours
10: Heat pipe: 90mm length condenser, 14mm diameter body, thickness: 0.6mm
11.Dust Proof Rubber: EPDM
12. Certificates: CE and BV

Luxury type And Economy type solar water heater

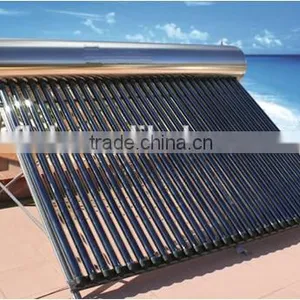

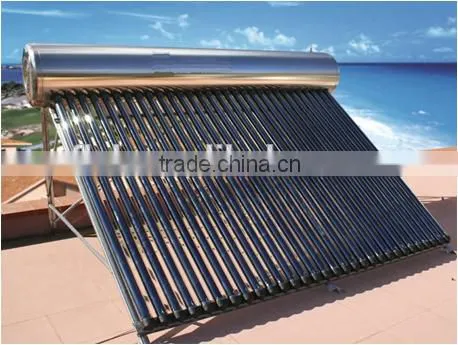

Luxury type IPS Stainless steel Pressurized solar water heater
Model	Tube Specification		Frame	Tank			Loading Quantity
Model	Dimension &Qty	Type	Frame	Inner	Outer	Volume	20GP	40HQ
MZ-IPS-9	Φ58mm*1800mm-9Pc	Three		1.2mm thickness SUS304-2B 360mm diameter	0.31mm thickness Stainless steel 460mm diameter	90L	68	170
MZ-IPS-12	Φ58mm*1800mm-12Pc	target	Stainless steel thickness: 1.2mm			120L	59	144
MZ-IPS-15	Φ58mm*1800mm-15Pc	Heat pipe tubes	Angle: 25° 38°45° (optional)			150L	50	119
MZ-IPS-18	Φ58mm*1800mm-18Pc					180L	41	104
MZ-IPS-20	Φ58mm*1800mm-20Pc					200L	38	94
MZ-IPS-24	Φ58mm*1800mm-24Pc					240L	33	80
MZ-IPS-30	Φ58mm*1800mm-30Pc					300L	27	66

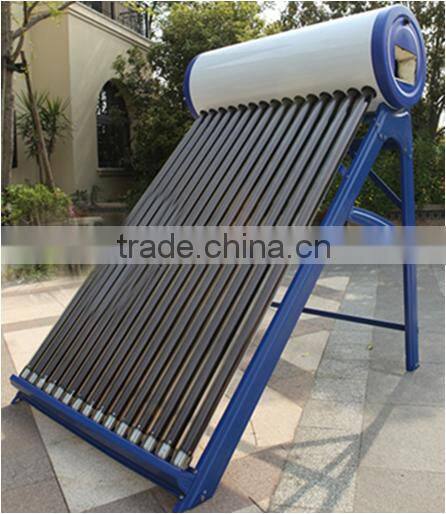

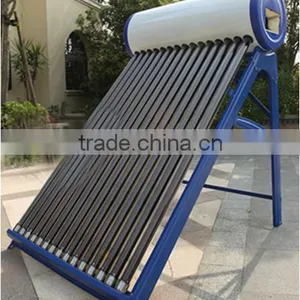

Economy type IPC Galvanized steel Pressurized solar water heater
Model	Tube Specification		Frame	Tank			Loading Quantity
Model	Dimension &Qty	Type	Frame	Inner	Outer	Volume	20GP	40HQ
MZ-IPC-9	Φ58mm*1800mm-9Pc	Three		1.2mm thickness SUS304-2B 360mm diameter	0.4mm thickness Galvanized steel 460mm diameter	90L	68	170
MZ-IPC-12	Φ58mm*1800mm-12Pc	target	Galvanized steel thickness: 1.5mm			120L	59	144
MZ-IPC-15	Φ58mm*1800mm-15Pc	Heat pipe tubes	Angle: 25° 38°45° (optional)			150L	50	119
MZ-IPC-18	Φ58mm*1800mm-18Pc					180L	41	104
MZ-IPC-20	Φ58mm*1800mm-20Pc					200L	38	94
MZ-IPC-24	Φ58mm*1800mm-24Pc					240L	33	80
MZ-IPC-30	Φ58mm*1800mm-30Pc					300L	27	66
