Product Description

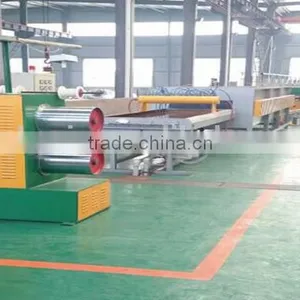

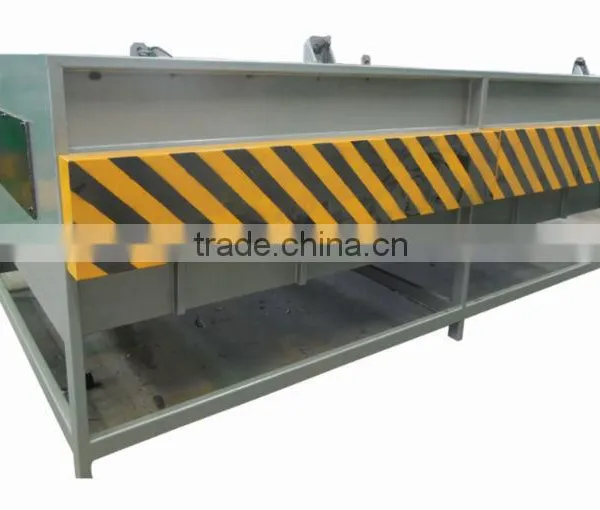

CL-60H/CL-40H/CL-25HThe Tube Type Stainless Steel Wire Annealing Furnace Production Line
Details
Main technical parameter
| Category | The main parameters |
| Product Type | CL-60H |
| No.of line | 60 |
| Production range | 0.4mm-0.2mm |
| Max.speed | 65m/min |
| Daily annealing capacity(24h) | 3146kg |
| Need to configure the type and quantity of the wire drawing machine | CL-22D Water-tank t)*pe stainless steel fine wire drawing machine...8 CL-17D Water-tank t*pe stainless steel fine wire drawinq machine...7 |
| Frame | Longmen-Frame structure 60 pay-off reels grouped(Double rov/s of four groups) |
| Form | Tension dial control pay-off |
| Size of pay-off reel | Max.300mm |
| Diamension(mm) | 5300x850x1000 |
| Weight(kg) | 950 |
| Diamension(mm) | 4000xl850xl500(Furnace height 900) |
| Weight(kg) | 6800 |
| Size of furnace tube(mm) | 16x2x4500...60 |
| Material of furnace tube | 2520(310S)High temperature stainless steel seamless-pipe |
| Insulation materials | The inside and the cover are made of polycrstalline mullite stone cotton |
| Bottom with lightweight insulation.brick. the furnace with flat heavv brick | |
| Heating source | |
| Temperature control composition | Separate two-zone heating.using platinum ana rhodium thermocouple temperature measurinq |
| Use SCR power requlatcx to achieve linear power adjustment | |
| Use Omron-instmment PID requlator.4-20mA siqnal input | |
| Media protection within the furnace tube | Electric heating continuous hydrogen protectior |
| Annealing electric heating power | 90Kw |
| Size of hollow soacein furnace(mm) | 1150*3200 |
| Tank dimension(mm) | 2000xl200xll00(300mm deep) |
| Weight(kg) | 480 |
| Cooling pipe specifications | 304Stainless steel seamless-pipeO16x2x2250....60 |
| With the gas nozzle to take over | |
| Assembly accessories | Pressurize the header and flowmeter |
| Dimension(mm) | 1000x1600x1550 |
| Weight(kg) | 1800 |
| Composition ofthe body | Welded together by the plate |
| Taking citation roller 320x600 | |
| Transmission | Divided into two groups.sided two-roll "S"shaped winding |
| Two sets of reducer machine and motor.and oblique tooth gear transmission | |
| Take-up both front and rear lines | |
| Taking citation power | 3Kw + 3kW = 6kW |
| Taking citation speed | 65m/min |
| Electronic control configurationb | Two elcctricaj boxes with two wire speed table displays tne current speed |
| Wnth two converter separate controling two sets of rollers to adiust the collection-line-speed | |
| Dimension(mm) | 5000x1400x1600 |
| Weight(kg) | 3200 |
| NO.of take-up line | 60 |
| Take-up layout | Double layer on both sides of symmetry |
| Take-up method | Single-line Torque motor receiving |
| Power | 30Kw |
| Take-up reel specifications | 160-250 |
| Capacity for wire receivinq | 7kg-20kg |
| Cable method | Interaction adjustable cable |
| Electronic control configuration | Stepper motor and gear structure cable system |
| Photoelectric Sensorless Induction | |
| 2 sets of total voltage regulator.each line with fine-tuning controller |
| Category | The main parameters |
| Product Type | CL-40H |
| No.of tube | 40 |
| Annealing wire range | 0.8mm-0.5mm |
| Max.speed | 50m/min |
| Daily annealing capacity(24h) | 7550kg |
| Need to configure the type and quantity of the wire drawing machine | CL-15D Water-tank t)*pe stainless steel wire drawing machine...12 |
| Pay-off rack | Longmen-Frame structure 60 pay-off reels grouped(Double rows of four groups) |
| Form | Tension dial control pay-off |
| Size of pay-off reel | Max.300mm |
| Diamension(mm) | 7200x850x1000 |
| Weight(kg) | 600 |
| Diamension(mm) | 6000xl600xl500(Furnace height 900) |
| Weight(kg) | 6800 |
| Size of furnace tube(mm) | 18x2x6500...40 |
| Material of furnace tube | 2520(310S)High temperature stainless steel seamless-pipe |
| Insulation materials | The inside and the cover are made of polycrstalline mullite stone cotton |
| Bottom with lightweight insulation.brick. the furnace with flat heavv brick | |
| Heating source | Using the carbon rod heating |
| Temperature control composition | Separate two-zone heating.using platinum ana rhodium thermocouple temperature measurinq |
| Use SCR power requlatcx to achieve linear power adjustment | |
| Use Omron-instmment PID requlator.4-20mA siqnal input | |
| Media protection within the furnace tube | Electric heating continuous hydrogen protectior |
| Annealing electric heating power | 135Kw |
| Size of hollow soacein furnace(mm) | 850*5200 |
| Tank dimension(mm) | 4000x900xll00(300mm deep) |
| Weight(kg) | 600 |
| Cooling pipe specifications | 304Stainless steel seamless-pipe18x2x4250....40 |
| With the gas nozzle to take over | |
| Assembly accessories | Pressurize the header and flowmeter |
| Dimension(mm) | 1000x1600x1550 |
| Weight(kg) | 1680 |
| Composition ofthe body | Welded together by the plate |
| Taking citation roller 375x500 | |
| Transmission | Divided into two groups.sided two-roll "S"shaped winding |
| Two sets of reducer machine and motor.and oblique tooth gear transmission | |
| Take-up both front and rear lines | |
| Taking citation power | 3Kw + 3kW = 6kW |
| Taking citation speed | 50m/min |
| Electronic control configurationb | Two elcctricaj boxes with two wire speed table displays tne current speed |
| Wnth two converter separate controling two sets of rollers to adiust the collection-line-speed | |
| Dimension(mm) | 3500*1400*1600 |
| Weight(kg) | 2500 |
| NO.of take-up line | 40 |
| Take-up layout | Double layer on both sides of symmetry |
| Take-up method | Single-line Torque motor receiving |
| Power | 20Kw |
| Take-up reel specifications | 200-250 |
| Capacity for wire receivinq | 10kg-15kg |
| Cable method | Interaction adjustable cable |
| Electronic control configuration | Stepper motor and gear structure cable system |
| Photoelectric Sensorless Induction | |
| 2 sets of total voltage regulator.each line with fine-tuning controller |
| Category | The main parameters |
| Product Type | CL-24H |
| No.of tube | 24 |
| Annealing wire range | 0.1mm-0.05mm |
| Max.speed | 180m/min |
| Daily annealing capacity(24h) | 217.92kg |
| Need to configure the type and quantity of the wire drawing machine | CL-15D Water-tank t)*pe stainless steel wire drawing machine...5 |
| Pay-off rack | Desktop double-layer structure,24pay-off reels grouped |
| Form | Tension dial control pay-off |
| Size of pay-off reel | Swashplate 300mm-200mm |
| Diamension(mm) | 1500x600x1000 |
| Weight(kg) | 400 |
| Diamension(mm) | 1500xl200xl500(Furnace height is900) |
| Weight(kg) | 6800 |
| Size of furnace tube(mm) | 14x2x2000...40 |
| Material of furnace tube | 2520(310S)High temperature stainless steel seamless-pipe |
| Insulation materials | The inside and the cover are made of polycrstalline mullite stone cotton |
| Bottom with lightweight insulation.brick. the furnace with flat heavv brick | |
| Heating source | Using the carbon rod heating |
| Temperature control composition | Separate two-zone heating.using platinum ana rhodium thermocouple temperature measurinq |
| Use SCR power requlatcx to achieve linear power adjustment | |
| Use Omron-instmment PID requlator.4-20mA siqnal input | |
| Media protection within the furnace tube | Electric heating continuous hydrogen protectior |
| Annealing electric heating power | 12Kw |
| Size of hollow soacein furnace(mm) | 500*1000 |
| Tank dimension(mm) | 500x600xll00(300mm deep) |
| Weight(kg) | 380 |
| Cooling pipe specifications | 304Stainless steel seamless-pipe14x2x750....24 |
| With the gas nozzle to take over | |
| Assembly accessories | Pressurize the header and flowmeter |
| Dimension(mm) | 3500x1200x1200 |
| Weight(kg) | 1350 |
| NO.of take-up line | 24 |
| Take-up layout | Single layer on both sides of symmetry,divided intc four groups of a single group single cable |
| Take-up method | Singe-line Torque motor receiving |
| Power | 12Kw |
| Take-up reel specifications | The size decided bycustomer |
| Capacity for wire receiving | |
| Cable method | Interaction adjustable cable |
| Electronic control configuration | Stepper motor and gear structure cable system |
| Photoelectric Sensorless Induction | |
| 2 sets of total voltage regulator.each line with fine-tuning controller |
