Home > Products > angle valve > Y shaped stainless steel head angle seat valve DN15 20 25 32 40 50

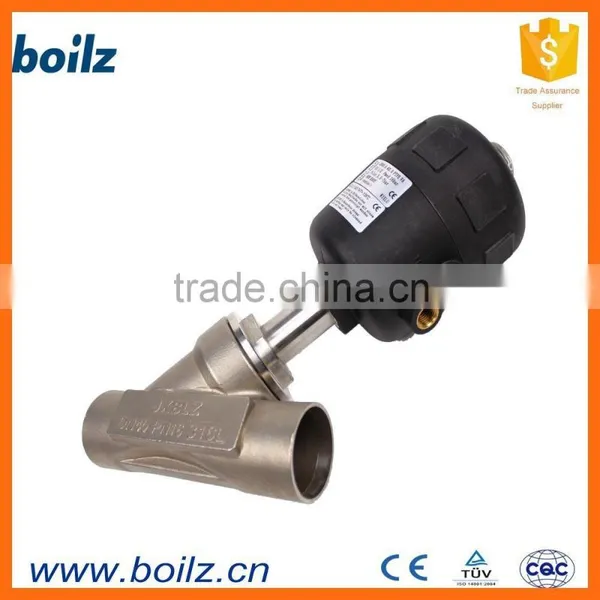

Y shaped stainless steel head angle seat valve DN15 20 25 32 40 50
- 200000 Piece / Pieces per Month
- Shenzhen/Guangzhou
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Angle | Pressure: | Other, 0-25bar |
Power: | Other, Electronic | Material: | Stainless Steel | Temperature of Media: | Other, -10℃~+180℃ |
Media: | Other, oil/gas/water/steam/Acid | Port Size: | DN1/4~ 2-1/2 | Place of Origin: | Guangdong, China |
Model Number: | Fig2000 Y-shaped angle seat valve | Brand Name: | Boilz |
Product Description
Y-shaped stainless steel head angle seat valve DN15 20 25 32 40 50
Angle seat valve (Model FIG2000-A/B)
Features:
1.Visual position indicator: the limit switch or emergency manual device.
2.Easy to install: pneumatic head can rotate 360 'to 360' even limit switch can be
rotated. Easily to install one or two limit switches.
3.Advanced pneumatic controller: low abrasion of piston structure, large capacity
and low consumption volume. Internal components self lubricating maintenance free.
4.Has a variety of control mode: normally open, normally closed, double-action.
5.Requires a smaller pneumatic actuators: fluid flow from the stem above the head.
6.Easy connections: MAMUR standard connection embedded metal connectors.
Optional smaller control head.
7.Long life guide: stem wedge fluoro lung (PTEE) seal prevent dirt into. Self
lubricating maintenance free. Stem by special treatment to ensure that the best fixed
position and can automatic correction.
8. No water hammer effect, fluid flow from stem below the water hammer (water
impact) is absorbed.
9. Advanced body organization: flow Angle block 30% larger than normal smaller
fluid flow better.
Parameters:
Working pressure:0-25bar
Medium temperature range:-10℃~180℃
Medium viscosity:Max600cst(m/s)
Working temperature range:-10℃~+60℃
Material of body: stainless steel 304/316
Thread end:G1/2”~G3”
Applicable mediums:water,steam,gas,Acid solution
Control function:nominal closed,nominal open.
Guangdong Shaoguan Boilz Control Valve Manufacture Co.,Ltd is a professional valve manufacturing enterprise. The sales department- Shenzhen JXBLZ valve equipment Co.,Ltd is located in Shenzhen, which is in the south of China.
We are looking forward to establish a long term and stable relationship with more customers from all over the world.
Showcase
Sales Department
Workshop
Exhibition
1. Manufacturer
2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German Baelz valve. Boilz stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.
3.Good After-sales
Our sales will reply you as soon as possible for any question about valves. We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.
1. Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
2.What measures you can provide to ensure our our deal?
A: We are the trade assurance supplier on . If you place an trade assurance order, you will receive 100% refund of the trade assurance amount for order not meeting agreed
delivery or quality terms.
3.How can I start a new trade assurance order?
A:You can make it as follow:
1) Find a Trade Assurance supplier and negotiation your order terms
2) Confirm your contract on
3) Submit your initial payment by T/T .
4) Enjoy Trade Assurance protection up to your covered amount .
4. Does the trade assurance support any amont of order?
A: No, this service just support the order of more than $1000.
5.What's your after-sale?
A: We offer 12 months warranty service, and we also sell the valve parts.
Certificates
Payment
TT payment,Trade assurance will be helpful for you much
Thank you very much for your time.
If you have any questions or need help , pls donot hesstate to contact me.
Just leave a message below , will reply as soon as possible.
