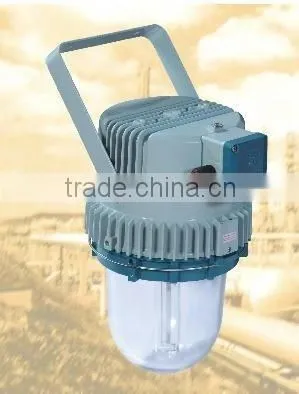

Help CenterCZ0872 Explosion-proof Light Fitting
Related Products
-
Explosion-proof Light FittingUS$ 131.76 - 269.41MOQ: 5 Sets -
Full Plastic Explosion-proof Fluorescent Light FittingsUS$ 750 - 755MOQ: 1 Set
-
Full Plastic Explosion-proof Emergency Marking Light FittingsUS$ 1,300 - 1,301MOQ: 1 Set
-
Explosion-proof Light FittingsUS$ 1,130 - 2,900MOQ: 1 Set
-
Long History, Quality Approved,IP66 Full Plastic Explosion-proof Emergency Illumination Light FittingsUS$ 1,260 - 1,261MOQ: 1 Set
Specifications
The four patented technologies were obtainedThe degree of protection is IP66
It is convenient to be mounted and maintained.
Ex mark: Ex de IIC T* DIP A21 TA, T*
Intended use: can be used in zone 1 & zone 2
Can be used in zone 20, zone 21 & zone 22
Degree of protection: IP66
Rated voltage: AC220V 50/60HZ
Ambient temperature use: -40~50
Terminal: L1, N Cage type terminal, PE terminal: 210mm2
Cable entry: Moulded plastic 1×M25×1.5,
Outside diameter:φ8-17mm
Moulded plastic 1M25×1.5 stopping plug
~~~~The transparent shield is made by the borosilicate toughened glass, the exposed fasteners are the stainless steel, between the cover glass suite and the light fitting body are used ferrule suspension hook design.
~~~~The Phoenix international authentication cage type terminals are selected to be used in the internal terminals, which are convenient for wiring
~~~~The high-frequency generator will be mounted in the light fitting body when the electromagnetic induction energy saving lamp is selected, and the ballast, the trigger and compensation capacitor will be mounted in the light fitting body when the metal halide lamp, high-pressured sodium vapor lamp and high pressure mercury vapor lamp are selected.
~~~~The explosion-proof light fitting can be used directly without the junction box additionally if it is fitted with the energy saving lamp, incandescent lamp, self-ballasted mercury vapor lamps as well as any kind of light source can use directly.
The mounting way of the explosion-proof platform light fitting: Ceiling type, bracket type, chain type
The mounting way of the explosion-proof platform light fitting: Fence type and platform flange type
The mounting way of the explosion-proof street light fitting: Single arm and double arms street light fitting
Illustration |
Light code |
Lampholder code |
power |
Temperature class |
|
≤40 |
Ta≤50 |
||||
Self-ballasted mercury vapor lamp-Z |
E40 |
500W |
T3 |
T3 |
|
Incandescent lamp-B |
E40 |
500W |
T3 |
T3 |
|
Electromagnetic induction energy-saving lamps |
|
165W |
T5 |
T4 |
|
Meal halide lamp-J |
E40 |
250W |
T4 |
T3 |
|
E40 |
400W |
T3 |
T3 |
||
High pressure sodium vapor lamp-N |
E40 |
150W |
T4 |
T3 |
|
E40 |
250W |
T4 |
T3 |
||
High pressure mercury vapor lamp-G |
E40 |
400W |
T3 |
T3 |
|
E40 |
250W |
T3 |
T3 |
||
