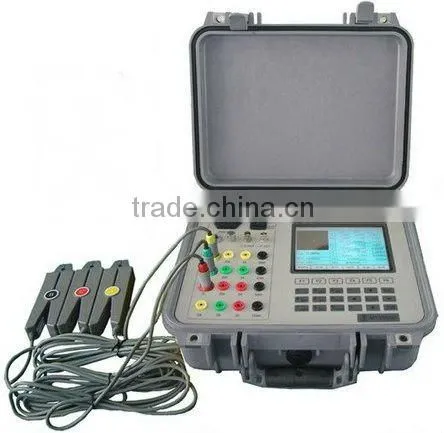

Portable Watt Meter Test Device

Specifications

1.ISO 9001 verified
2.Accuracy class: 0.05, 0.1
3.Fully surport moving test-online meter calibration
wide voltage measureme

Three Phase Portable Meter Test Equipment

Main performance:

1. Newly designed outer case with small size and little weight.

2. Built operation system windows CE. NET. Window operating interface with convenient application.

3.  640x480TFT true color and high precision screen with the wonderful display interface.

4. Built-in large capacity FLASH. The intelligent meter is synchronous loading.

5. DSP high precision technology, multi-electirc parameters measurement synchronously with higher precision.

6. Adopts the latest ARM high performance CPU as the main control unit, the operation speed is faster.

7. The main and subsidiary meter calibration P3/P4 automatic wire checking, constant checking Waveform and the harmonics analysis, demand quantity burden test.

8. Standard RS232 USB interface, the external device such as the bar code, U disk and the portable PC are optional.

9. The GPS and GPRS modular are optional, which can realize the real time data transmission and the GIS information processing.

10. Equipped with wireless model, communication with PDA..

Index:



Voltage measuring range:	30400V (3×60,3×100,3×200,3×400V)
Current measuring range:	Direct measurement	3×1A,3×5A,3×20A(as per requirement)
	Clamp measurement	5A,500A Optional:100A,200A,1000A
Accuracy:	Voltage	0.1%
	current	0.1%
	power	0.05%
	Reactive	0.1%
	Frequency	±0.01Hz
	Phase angle	±0.05°  Iin>20%In
		±1°    10%In<Iin<20%In
Working voltage range	AC80V400V
Power consumption	<15VA
Working temperature	-10°C--+40°C (special -25°C--+70°C)
Relative humidity:	30%--80% no condensation
Dimension	340*295*152mm
weight	<3KG
