Home > Products > Instrument Transformers > JDZX(F)9-6,10G Voltage Potential Transformer

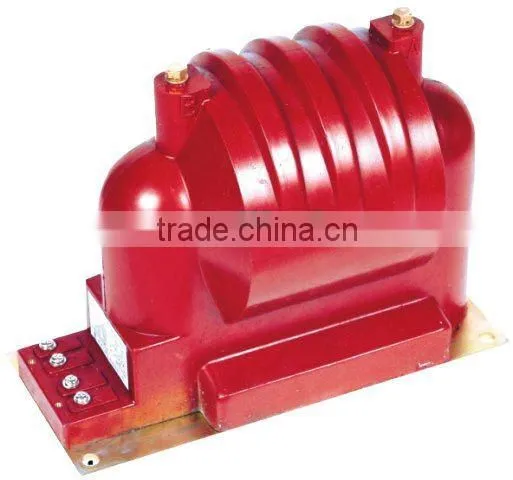

JDZX(F)9-6,10G Voltage Potential Transformer
USD $50 - $1,000
/ Piece
50 Pieces(Min.Order)
- 2000 Piece / Pieces per Month
- As per your request
You May Like
Product Details
| Place of Origin: | Henan, China | Brand Name: | SMS | Model Number: | JDZX(F)9-6,10G |
| Usage: | Potential |
Product Description
Specifications
1. ISO 9001:2008 verified2. 18 years' manufacturer & supplier
3. Stable and high precision
JDZX(F)9-6,10G Voltage (Potential) Transformer
Technical Data:

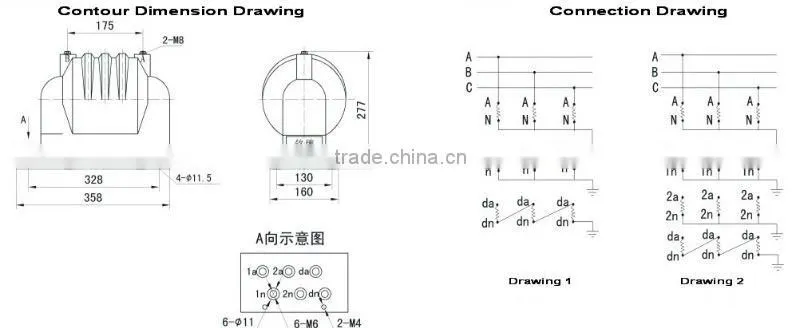

Model No. | Rated Voltage Ratio (KV) | Accuracy Class Combination | Rated Output (VA) | Ultimate Output (VA) | Connection Drawing |
JDZX9-6G | 6/√3/0.1/√3/0.1/3 | 0.5/6P 0.2/6P | 60/100 20/100 | 400 | Drawing 1 |
JDZX9-10G | 10/√3/0.1/√3/0.1/3 | ||||
JDZX9-10G | 6/√3/0.1/√3/0.1/√3/0.1/3 | 0.2/0.5/6P | 15/15/100 | 500 | Drawing 2 |
We can make various transformers according to your requests:
