Specifications
1.Classical High reliable Meter Test Bench2.3--60 meter positions available
3.support all test items as per covering IEC st

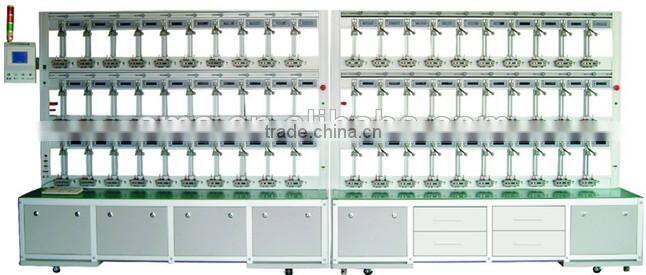

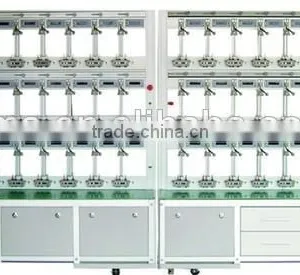

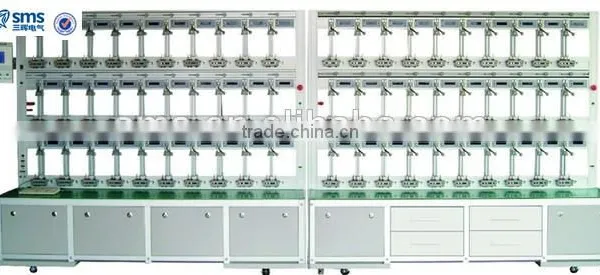

DZ601-60 Single Phase Energy Meter Test Bench
Features:
1. High accuracy power and high efficient switching power supply.
2. Big LCD screen for monitor, all kinds of manual testing will be operation be keyboard.
3. Supporting internet working mode, inner setting TCP/IP unit, which could control TCP/IP for remote control.
4. One PC could control more than four test equipment in long distance simultaneously.
5. Three colors warning light for indicating remote control states.
6. Display terminals for showing current info from remote control.
7.Testing resolution support editing, copying, deleting and protecting password.
8.Testing resolution manage concentratedly, and support reading from server or download from MIS net attachment.
9.Inner setting high accurate time and frequency standard and collateral RS485 COM controller, which could test single phase multifunction energy meter.
10.Automatically test and check error every day.
11.Automatically test and check register's value and combined errors.
12.Automatically test shifting error for period of time.
13.With automatic finding black spots, recording basic info from tested meter and transferring MIS net data.
Note: This model for internet controlling system.
Specifications:
1. Accuracy class: 0.05 0.1, 0.2
2. Output current: 0.01100A, range: 0.1A, 0.5A,1.0A, 2.5A, 5A, 10A, 20A, 50A, 100A.
3. Output voltage: 220V.
4. Output power: 750VA for voltage, 1400VA for current.
5. For each range of voltage and current, 0120% of range value could be continually adjusted, the resolution <0.01%.
6. Phase scope: 0359.9°, adjusted resolution: 0.1°.
7. Adjusted frequency scope: 45.-65Hz, resolution: 0.1Hz.
8. Stability for voltage, current, power output: <0.1%(PF=1, 100 seconds)
9. Wave distortion for voltage, current output: <=1.0%.
10. Power supply: 220±10%, AC50HZ.
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
Founded in 1996, SMS Electric Co., Ltd. Zhengzhou is a hi-tech enterprise, which specializes in the research & development (R&D) and production of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters and instrument transformers, etc
With the development for years, we have possessed 9 series and 100 variety of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters, and instrument transformers with annual production capacity of USD40,200,000, of which home market takes up about 83.%, while the overseas market takes about 17%.
Now, our sales network covers worldwide market and our products have been sold well all over the world, such as Denmark, Serbia, Brazil, Colombia, India, South Korea, Vietnam, Qatar, Mongolia, Taiwan, Egypt, Ethiopia, etc.
SMS creates excellent products to benefit the customers
SMS creates glorious achievements to benefit the society
SMS creates high value to benefit your life
SMS welcome you!
Add: No.85, The Fifth Street, Economic & Technological Development Zone, Zhengzhou City, PRC
Skype:rachelzhang1992
Mobile: +86-158-38316839 ; Fax: +86-371-67391399;
Website: /
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
