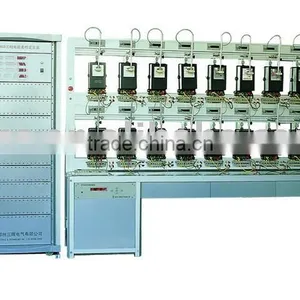

DZ603-16 Three Phase Energy Meter Test bench

Specifications

1.Certificate: ISO 9001
2.3-60 meter positions optional.
3.equipped with MSVF to
test single-phase meters
4.Prompt delivery



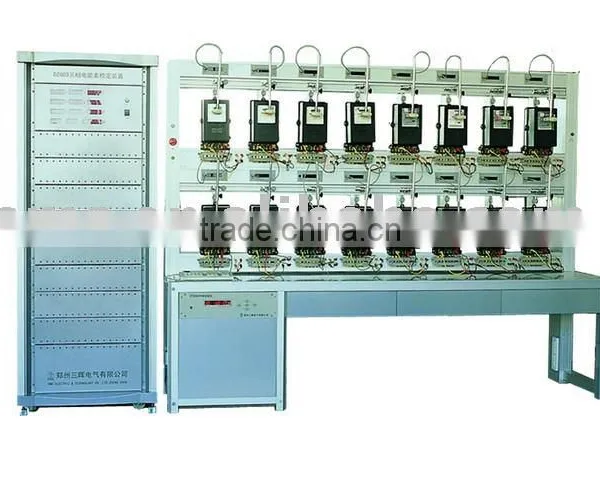

DZ603-16 Three Phases Energy Meter Test Bench

Main features:

1. Shall carry out completely automatic calibration items such as running with no load, starting, basic error, standard distortion and 24 hours variation etc according to testing regulations: four quadrant: positive, negative, active and reactive error test, automatic shift the input of all kinds of pulse.

2. The tested meters may be same specification but different communication agreement.

3. Shall carry out tests such as demand cycle and its display, time interval error, register combined error and daily error.

4. Communication test, GPS broadcast time calibration, meter data verification, regarding record meter number.

5. According to regulations, carry out various influence value test, voltage falling and interruptions shall be carried out.

6. Automatically adjust black spot, calculate time for starting test and running with no load test according to regulations.

7. Shall adopt fixed time and fixed quality burden methods to carry out the reading test, and different time interval with different burden tests are available.

8. Shall display the voltage and current wave diagram with same phase: shall set and measure 2-21 times harmonic wave and measure the distortion degrees.

9. Data be processed and printed automatically, and the table lay out shall be set freely according to user's requirements, transfer data by all M2S Port.

10. Support: bar code input, error curve, error limit setting, multi-mode calibration plans and equipment management authority etc.

Technical data:

1. Voltage output ranges: 57.7V, 100V, 220V, 380V.

2. The current ranges: 1mA, 5mA, 10mA, 25mA, 50mA, 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A, 50A, 100A.

3. The voltage and current adjusting resolution: 0.01%*tap position.

4. The voltage and current adjusting scope: 0120%*tap position.

5. Output phase adjusting scope: 0359.9°, adjusted resolution is 0.01°, output accuracy: +/-0.05°.

6. Output frequency adjusting scope: 45.0065.00Hz, adjusted resolution is 0.01Hz, accuracy:  +/-0.05Hz..

7. Output current and voltage stability: 0.05%, output power stability: 0.05%.

8. Output voltage and current distortion: <0.5%.

9. Output power: voltage 280VA per phase, current: 450VA per phase.

10. Accuracy class: 0.05, 0.1.

11. Power supply: 3*220V or 1*220V+/-10%, AC50HZ, 60HZ.

12. Meter position: 16 meters.
