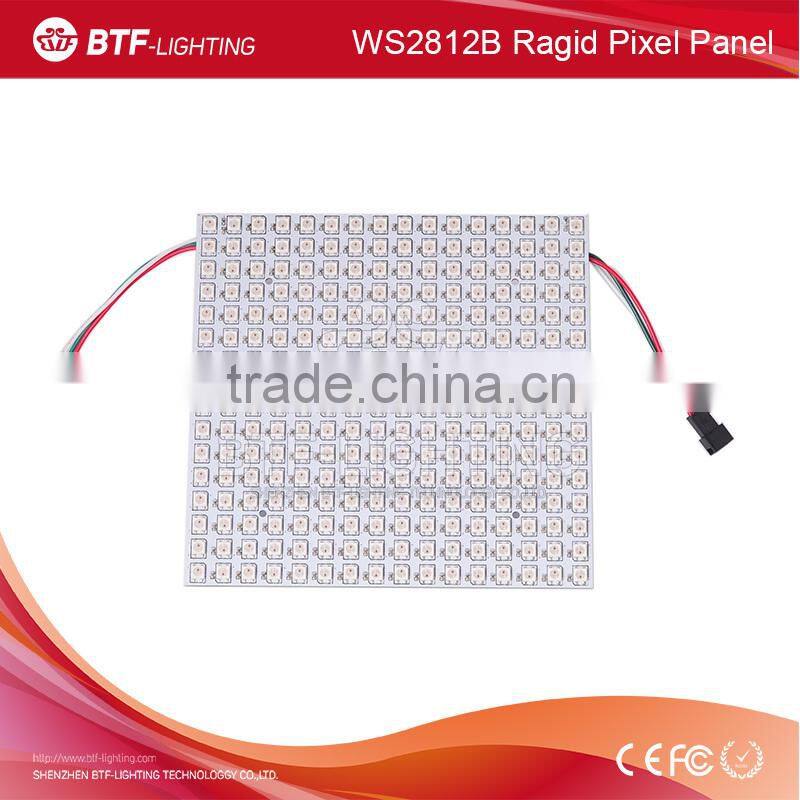

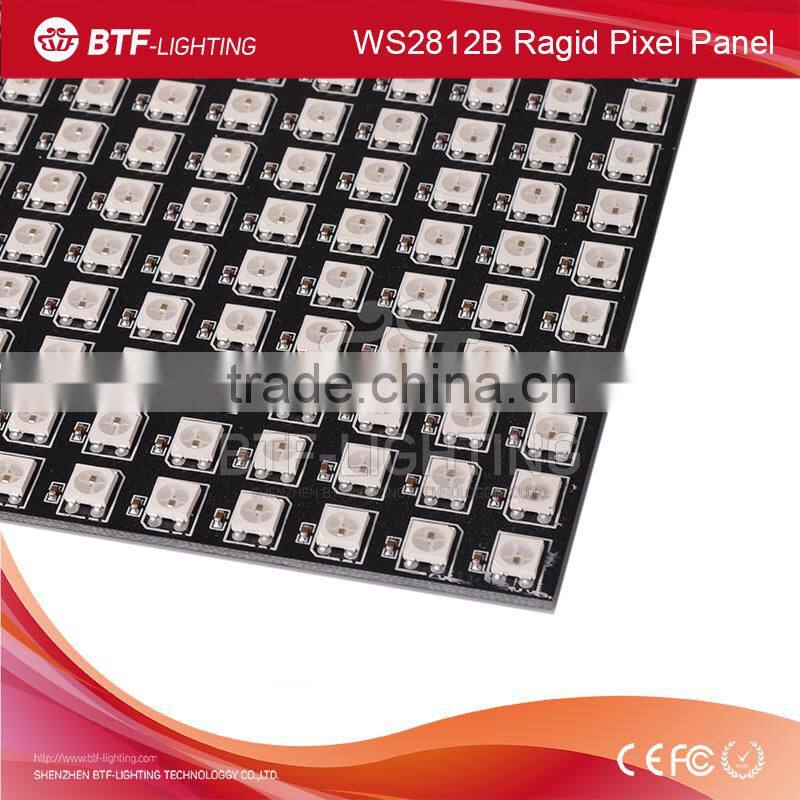

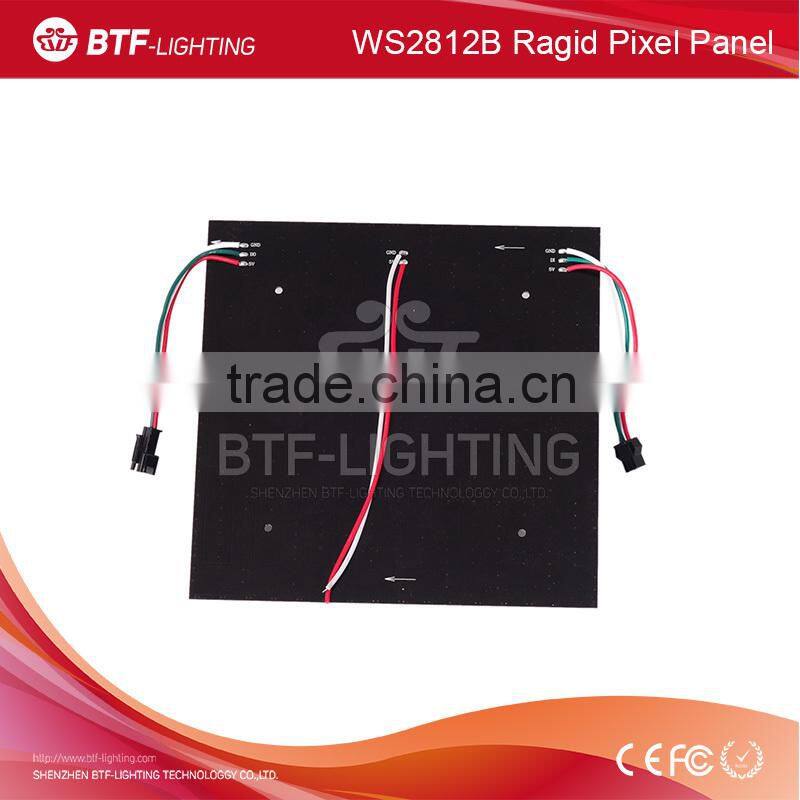

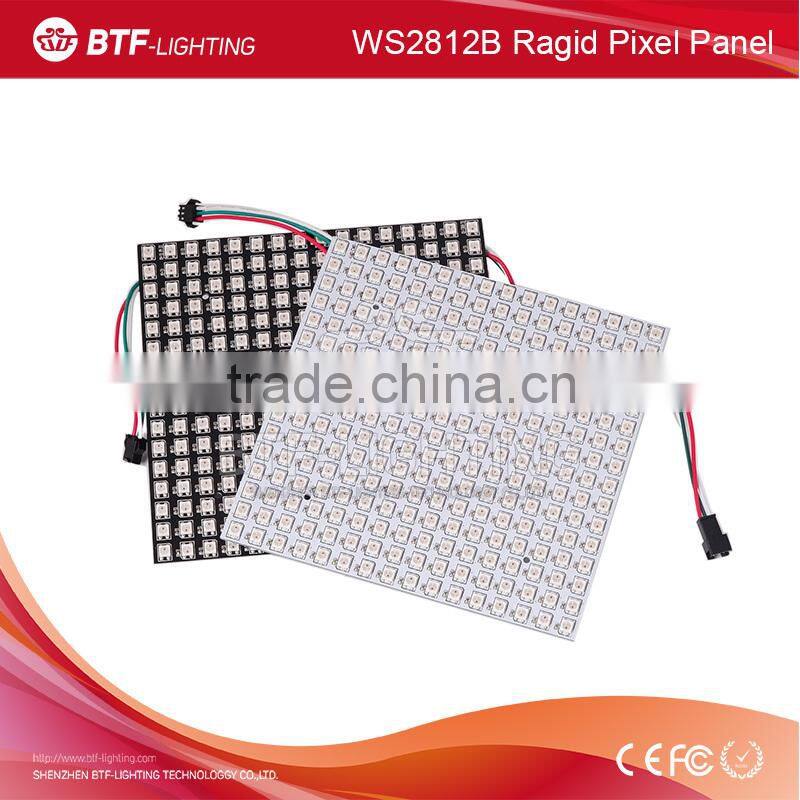

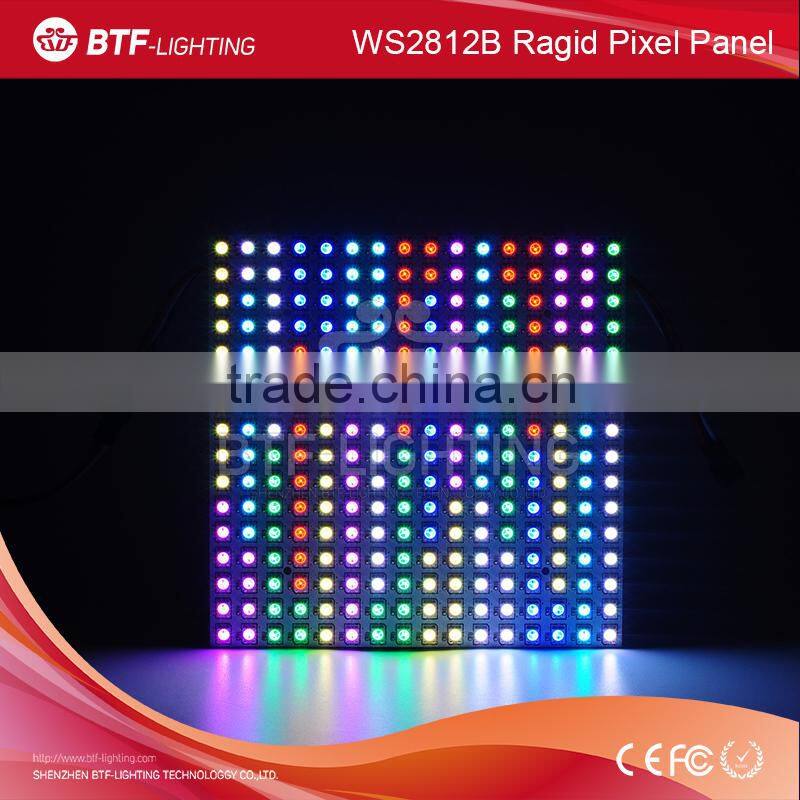

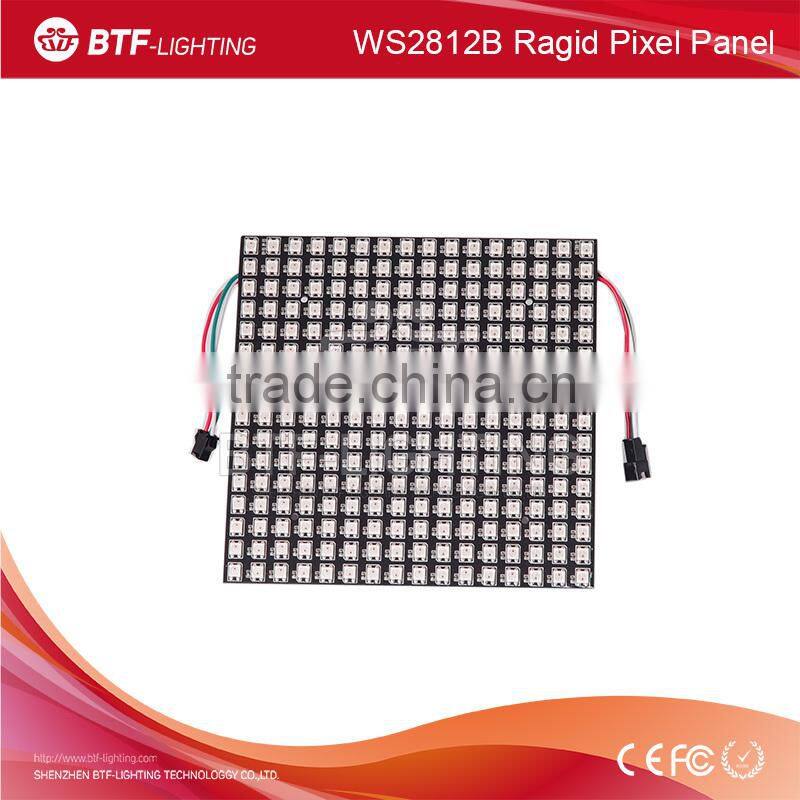

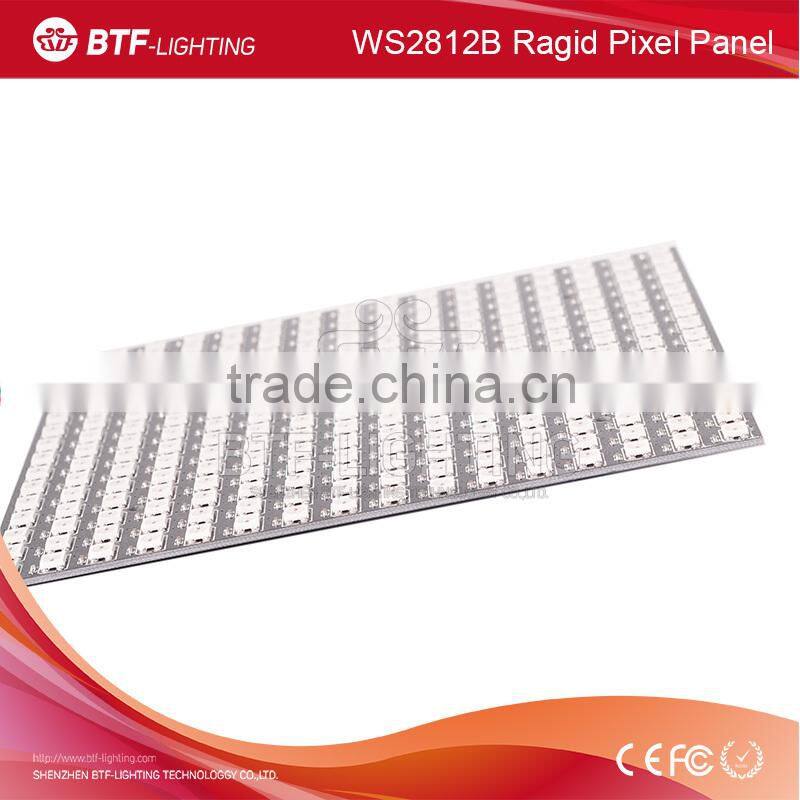

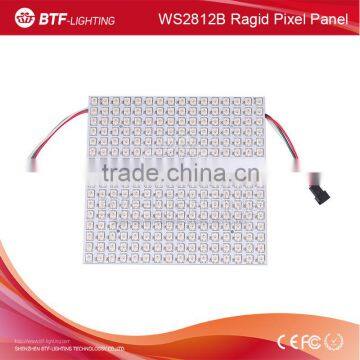

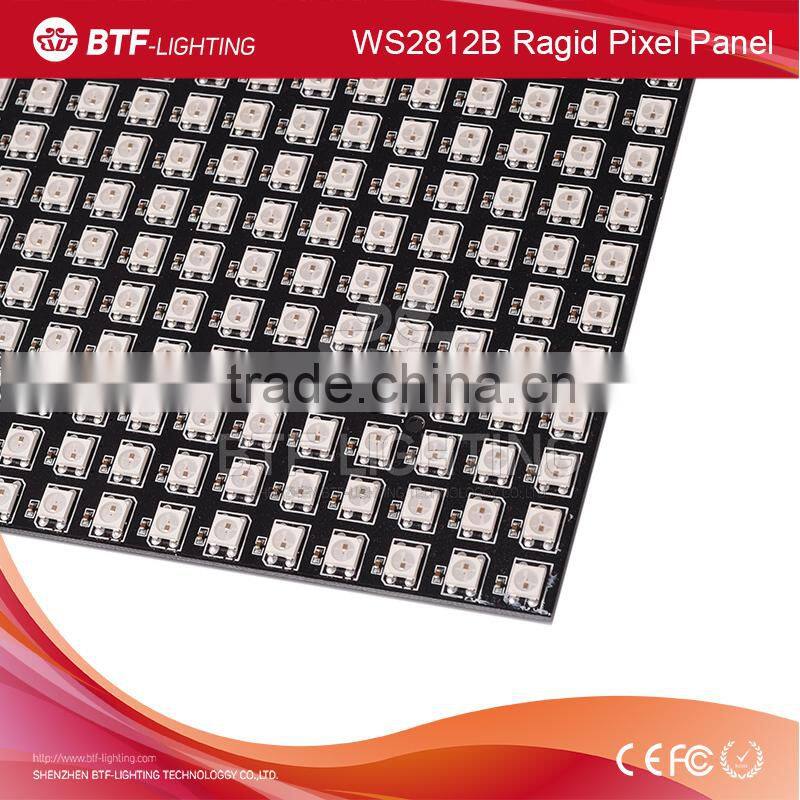

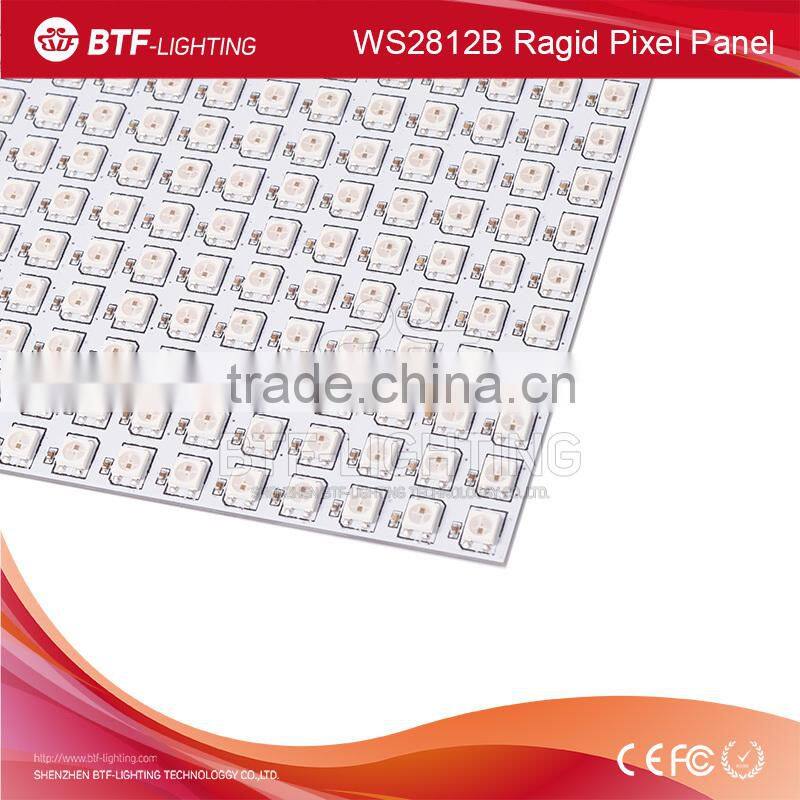

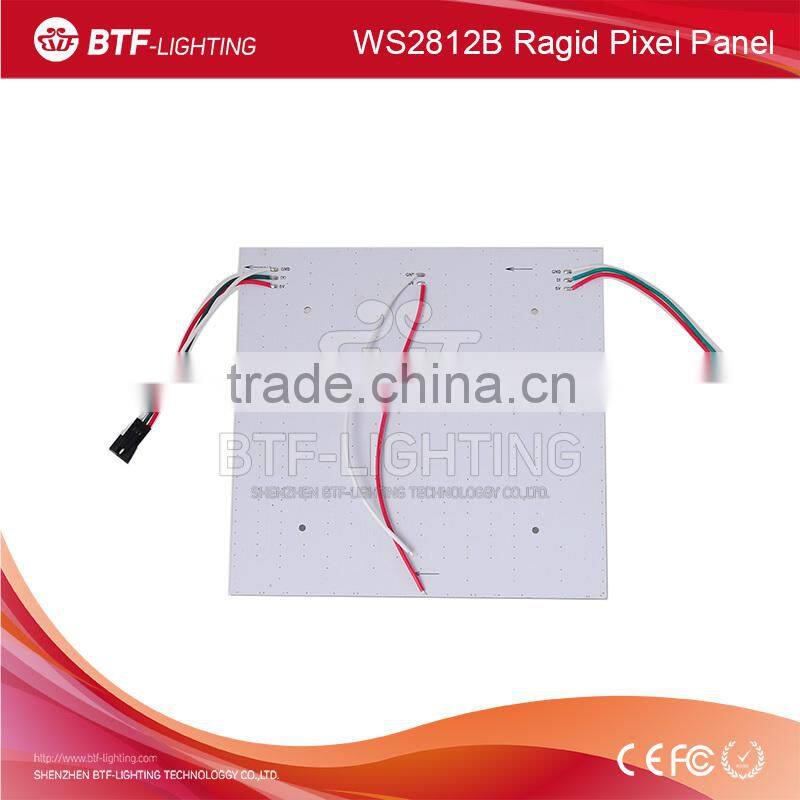

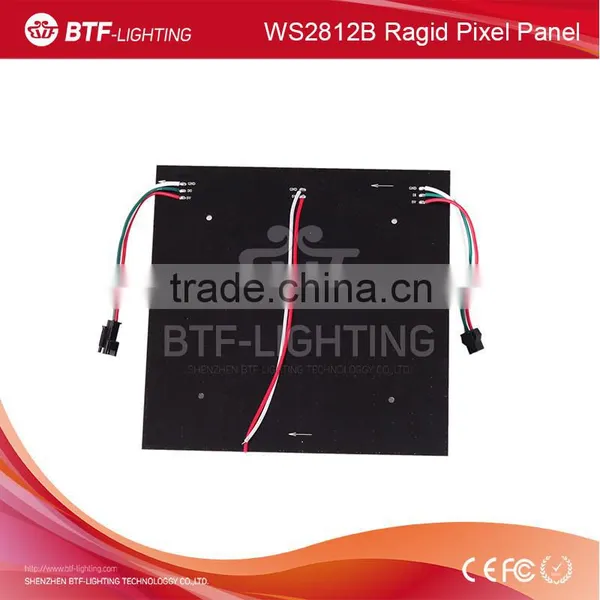

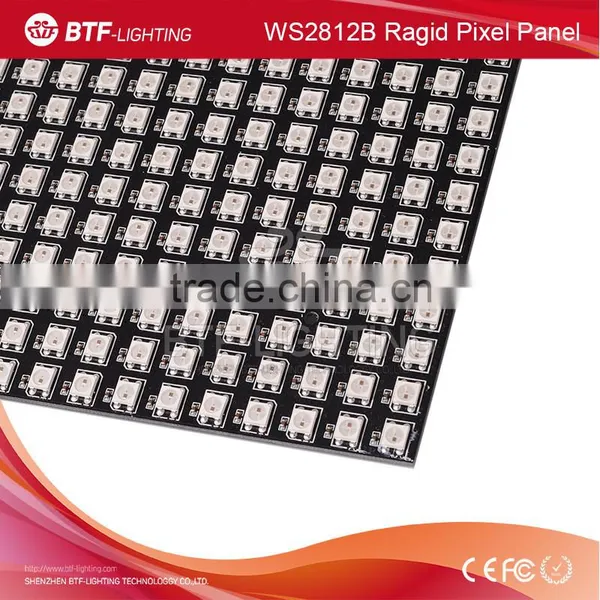

16*16pixels WS2812B led digital(ws2811 IC controlled) ragid hard panel light
size:16cm*16cm
DC5V input
5050 RGB SMD, WS2812b IC Bulit-in
pixels number: 16pixels*16pixels=256pixels
led number: 16*16=256 leds(5050 smd rgb)
each led is a pixel
Ragid LED Screen Board
note: we can also make customized size for you, if you have over 20pcs.
About WS2812B Chips.
General description
WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent.
The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
PIN function
NO. |
Symbol |
Function description |
1 |
VDD |
Power supply LED |
2 |
DOUT |
Control data signal output |
3 |
VSS |
Ground |
4 |
DIN |
Control data signal input |
Absolute Maximum Ratings
Prameter |
Symbol |
Ratings |
Unit |
Power supply voltage |
VDD |
+3.5~+5.3 |
V |
Input voltage |
VI |
-0.5~VDD+0.5 |
V |
Operation junction temperature |
Topt |
-25~+80 |
|
Storage temperature range |
Tstg |
-40~+105 |
|
Electrical Characteristics(TA=-20~+70,VDD=4.5~5.5V,VSS=0V,unless otherwise specified)
Prameter |
Smybol |
conditions |
Min |
Tpy |
Max |
Unit |
Input current |
II |
VI=VDD/VSS |
?? |
?? |
±1 |
µA |
Input voltage level |
VIH |
DIN,SET |
0.7VDD |
?? |
?? |
V |
VIL |
DIN,SET |
?? |
?? |
0.3 VDD |
V |
|
Hysteresis voltage |
VH |
DIN,SET |
?? |
0.35 |
?? |
V |
Switching characteristics(TA=-20~+70,VDD=4.5~5.5V,VSS=0V,unless otherwise specified)
Prameter |
Symbol |
Condition |
Min |
Tpy |
Max |
Unit |
Transmission delay time |
tPLZ |
CL=15pF,DIN? DOUT,RL=10K? |
?? |
?? |
300 |
ns |
Fall time |
tTHZ |
CL=300pF,OUTR/OUTG/OUTB |
?? |
?? |
120 |
µs |
Input capcity |
CI |
?? |
?? |
?? |
15 |
pF |
RGB IC characteristic parameter
Emitting color |
Model |
Wavelength(nm) |
Luminous intensity(mcd) |
Voltage(V) |
Red |
13CBAUP |
620-625 |
390-420 |
2.0-2.2 |
Green |
13CGAUP |
522-525 |
660-720 |
3.0-3.4 |
Blue |
10R1MUX |
465-467 |
180-200 |
3.0-3.4 |
Data transfer time( TH+TL=1.25µs±600ns)
T0H |
0 code ,high voltage time |
0.4us |
±150ns |
T1H |
1 code ,high voltage time |
0.8us |
±150ns |
T0L |
0 code , low voltage time |
0.85us |
±150ns |
T1L |
1 code ,low voltage time |
0.45us |
±150ns |
RES |
low voltage time |
Above 50µs |
|
1xWS2812B 16*16 panel
We specialize in designing drive control scheme and developing new products for LED decorative
lighting and LED lighting industry, providing all-dimensional solutions.
We mainly engaged in designing and selling the LED lighting drive IC, LED lighting constant current
driving IC, LED lighting control system.
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Professional LED manufacturer both on led component and application product.
3. Professional support on technology and flash design.
4. Well-trained and experienced staffs to answer all your enquires in fluent English.
5. All the products must have 10 hours' aging before delivering,to ensure the quality.
6. Unique appearance design and ideal recommended services are offered.
7. On time delivery and prompt response to your enquiry.
8. Satisfied pre-sales and after-sales service,welcome all requires and we will reply promptly.
1. LED-Clothing products
2. Stage Lighting,decorating Require frequently disassembled.
3. Occasions which need to be implemented in a limited space.
