Specifications
1.Electric heating element with thermosta2. Different styles
3.Used with thermocouple
4.Can be customization

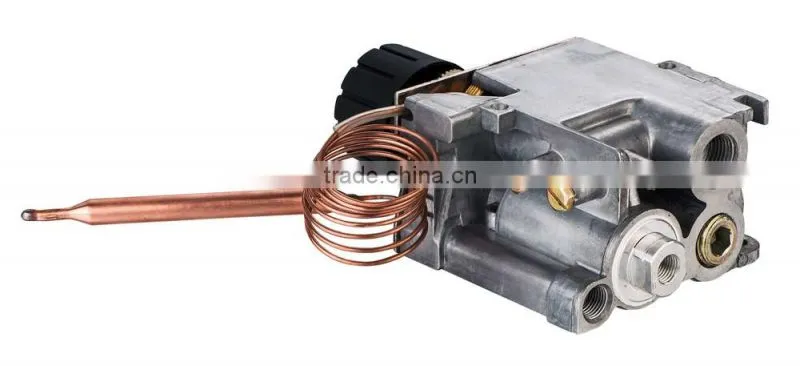

gas heater control valve ´eruo sit
Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .
The pressure of the often open flame traffic and the main airway can be adjust .
There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.
Application
Technical data | ||
Operating temperature |
13℃—38℃ |
Customization |
Intake way |
1/2---14NPT . Quick connector |
Customization |
Outlet way |
M16×1.5 , 3/8—19NPT |
Customization |
Material |
Aluminum alloy |
|
Maximum intake pressure |
50mbar |
|
Exhaust pressure |
3—18mbar |
|
Voltage regulator |
Without |
|
Solenoid valve drop-away current and absorption current |
80—200mA |
Customization |
Sealed way |
Rubber seal |
|
Thermocouple interface |
M8×1.0 , M9×1.0 |
Customization |
SUITABLE GAS |
Liquefied petroleum gas, natural gas |
|
Drive mode |
Thermal expansion |
|
Ambient Temp |
0℃—80℃ |
|

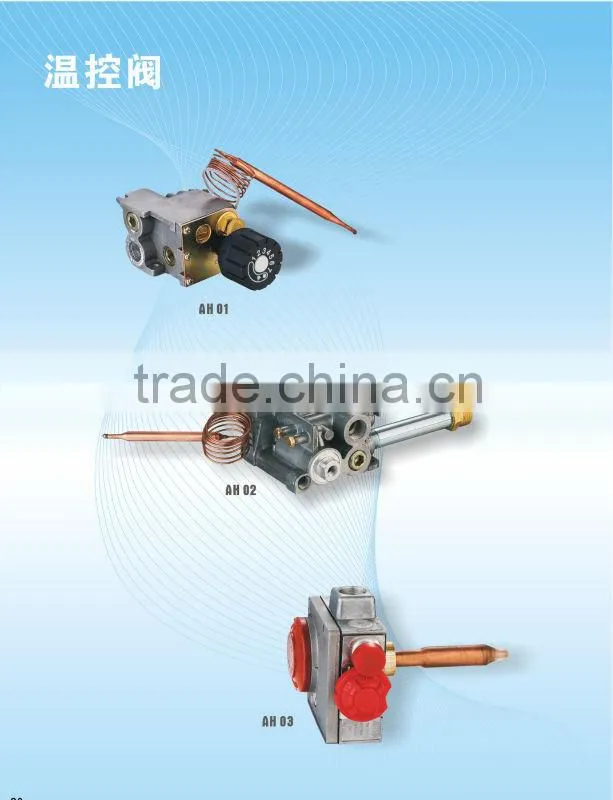

OTHER STYLES

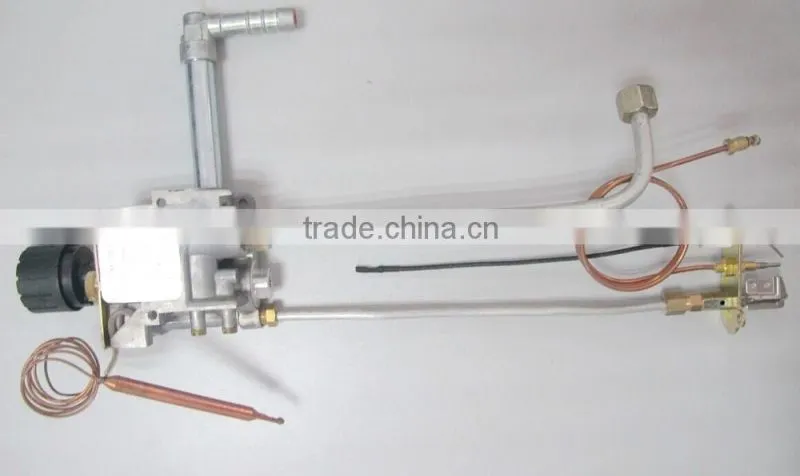

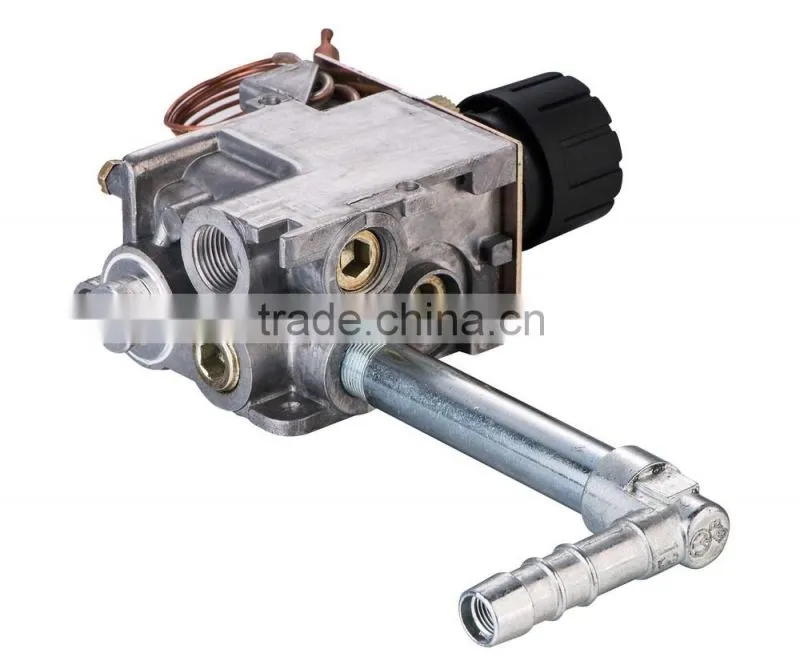

gas heater control valve ´eruo sit
About JIALI
Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd. was established in 1998, specializes in manufacturing of gas appliance,
such as: Thermocouple,ODS,Thermostat,Magnet valve etc.
In 2009,company through the ISO9001, and our temperature controller thermocouple passed the CSA.
In 2011, ERP system & ISO (matching the ERP) began to be applied to fully guarantee products' quanlity and efficient internal management.
Meanwhile, we have a number of outstanding engineers and perfect laboratory, which make sure that we can prodcue great products.
Furthermore, our ODS has 5 patents,and passed the CSA by one-time. Especially,
the shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%).
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
More details, please contact Annie,thanks!
