Home > Products > Thermostat > Gas valves for gas cooker
Gas valves for gas cooker
- 600 Piece / Pieces per Month
- Ningbo
- T/T L/C D/P D/A Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Safety | Pressure: | Medium Pressure |
Power: | Other, Thermal expansion | Material: | Other, Aluminum alloy | Temperature of Media: | Medium Temperature |
Media: | Gas | Port Size: | - - | Place of Origin: | China |
Model Number: | AH02 | Brand Name: | JiaLi | Application: | Other, Heaters, water heaters, fireplace, Fried furnace |
Product Description
Specifications
Gas valve for gas cooker1.High quality.
2. Different styles.
3.Best delivery date.
4.Customization
PRODUCT DESCRIPTION
Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .
The pressure of the often open flame traffic and the main airway can be adjust .
There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.
Scope of Application
Parameter Specification Gas valves for gas cooker
Operating temperature | 13℃—38℃ | Customization |
Intake way | 1/2---14NPT . Quick connector | Customization |
Outlet way | M16×1.5 , 3/8—19NPT | Customization |
Material | Aluminum alloy |
|
Maximum intake pressure | 50mbar |
|
Exhaust pressure | 3—18mbar |
|
Voltage regulator | Without |
|
Solenoid valve drop-away current and absorption current | 80—200mA | Customization |
Sealed way | Rubber seal |
|
Thermocouple interface | M8×1.0 , M9×1.0 | Customization |
SUITABLE GAS | Liquefied petroleum gas, natural gas |
|
Drive mode | Thermal expansion |
|
Ambient Temp | 0℃—80℃ |
|

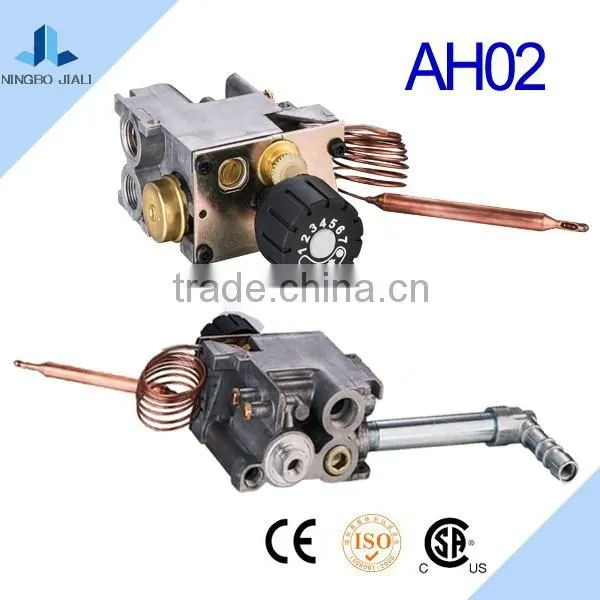

The picture of the Gas valves for gas cooker

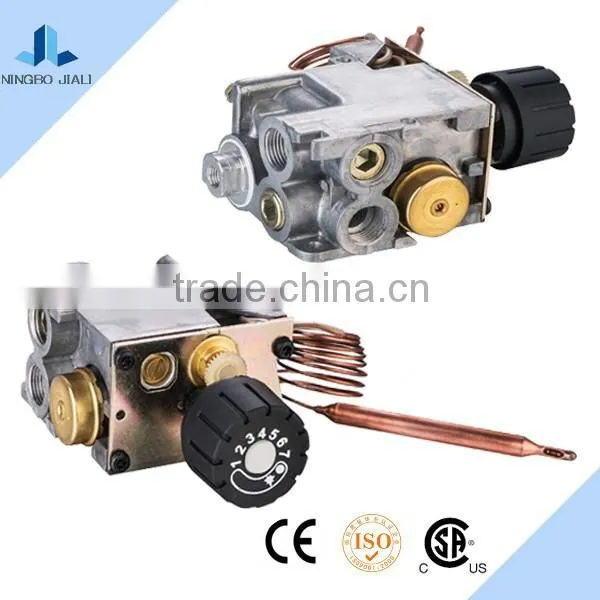

Other styles of the Heater parts gas valve/Gas stove control valve
PACKAGING AND SGIPPING
Gas valves for gas cooker
Usually carton packaging, or PVC bag with a label.
Specifically according to the customer to your needs,
you can use any packaging situation.
PCS/BAG | 25pcs/bag |
PCS/CTNS | 500pcs/ctns |
CTN Size | 400*250*150mm |
Shipping | By courier or by sea |
Delivery time | 5-30 day |
Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd. | |
In 1998 | The company was founded. Specializes in manufacturing of gas appliance. Such as: Thermocouple,ODS,Thermostat,Magnet valve etc. |
In 2002 | we have a number of outstanding engineers and perfect laboratory which make sure that we can prodcue great products. |
In 2009 | Company through the ISO9001 Our thermocouple passed the CSA. |
In 2011 | ERP system & ISO (matching the ERP) began to be applied. fully guarantee products' quanlity and efficient internal management. |
In 2012 | ODS Pilot burner has 5 patents, and passed the CSA by one-time. The shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%). |
In 2014 | We moved into the new factory, Have more advanced equipments, technology and professional team. |
Our customers all over the world. High quality products and good services are make us be recognized by the customers Our belief: let every family gas equipment more safety and environmently |
Our Campany
Product testing
OUR SERVICES
Gas valves for gas cooker
1.Inquiry response:Your inquires will be replied in 24hours
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
RELATED PRODUCTS
No.1 Thermocouple head,Connector,Fixing parts, Temperature controller
No.2 Pilot bunner, ODS, Ignitor, Ignitor wire, Thermostat vale & Accessories,
Thermocouple, ODS, Solenoid Valve, Thermostat |
Our campany has passed the ISO9001
CE, CSA
And have six patents of our products
More details,Pls contact Elian ! Thanks.
