Ningbo Jiali Gas Appliance & Science And Technology Co., Ltd.: Ningbo, Zhejiang, China; Main products: Thermocouple, ODS, Solenoid Valve, Thermostat

Home > Products > Thermostat > Fan Heater Thermostat With Gas Thermocouples

Fan Heater Thermostat With Gas Thermocouples

FOB Price

US$ 9 - 15 / Piece

500 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JiaLi
Model Number	AH02

Product Description

Specifications

Fan heater thermostat
1.The high quality.
2. Different styles.
3.The best delivery date.
4.Customiza

Product Description

Product Description

About Fan heater thermostat with gas thermocouples

Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .

The pressure of the often open flame traffic and the main airway can be adjust .

There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.

Scope of Application

Parameter Specification Fan heater thermostat with gas thermocouples

Operating temperature	13℃—38℃	Customization
Intake way	1/2---14NPT . Quick connector	Customization
Outlet way	M16×1.5 , 3/8—19NPT	Customization
Material	Aluminum alloy
Maximum intake pressure	50mbar
Exhaust pressure	3—18mbar
Voltage regulator	Without
Solenoid valve drop-away current and absorption current	80—200mA	Customization
Sealed way	Rubber seal
Thermocouple interface	M8×1.0 , M9×1.0	Customization
SUITABLE GAS	Liquefied petroleum gas, natural gas
Drive mode	Thermal expansion
Ambient Temp	0℃—80℃

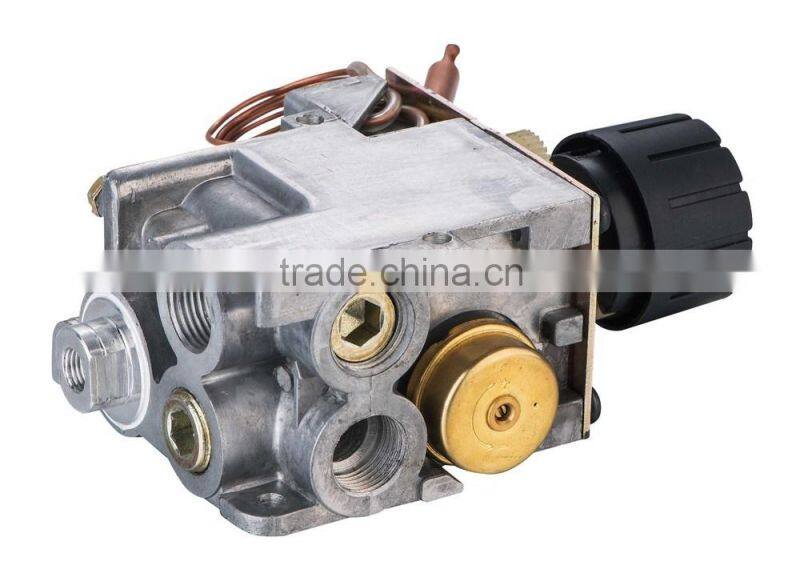

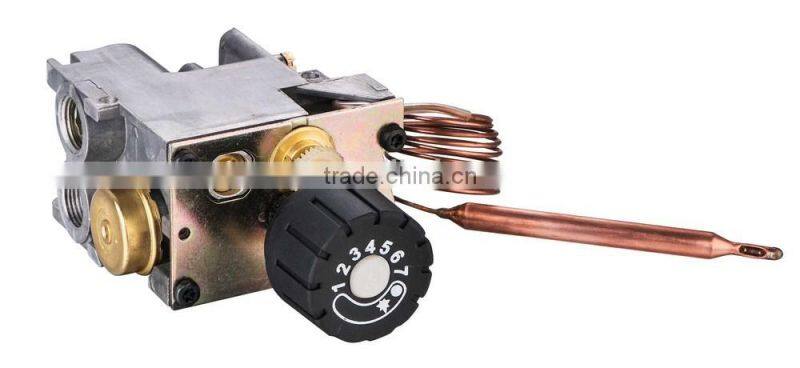

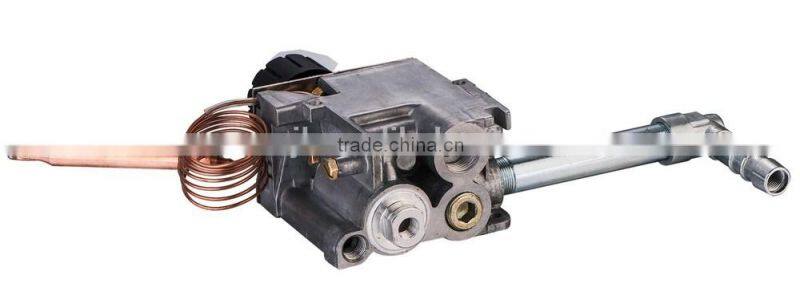

The picture of the Fan heater thermostat with gas thermocouples

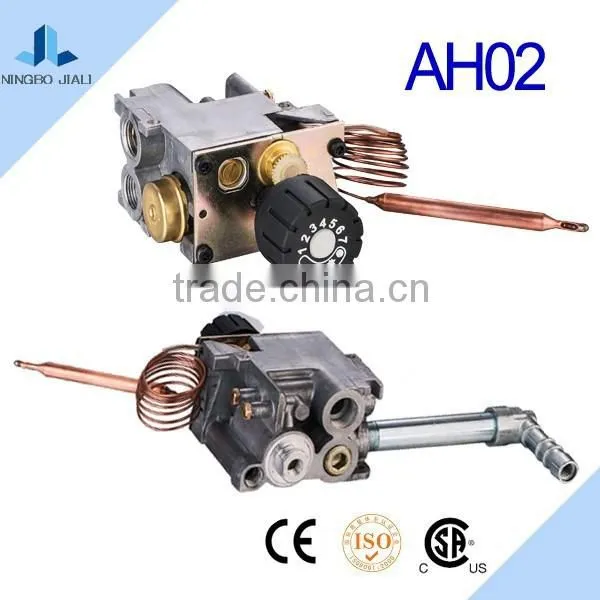

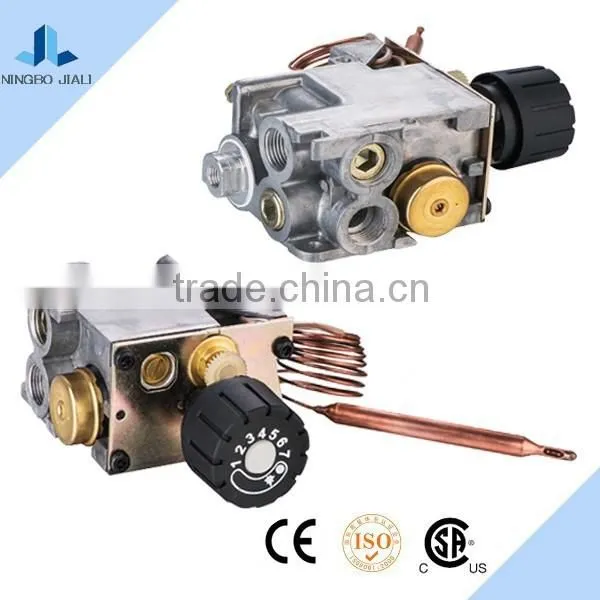

Other styles of the Gas thermostat in valves

Packaging & Shipping

Packaging and Shipping

Gas Fan heater thermostat with gas thermocouples

Usually carton packaging, or PVC bag with a label.

Specifically according to the customer to your needs,

you can use any packaging situation.

PCS/BAG	25pcs/bag
PCS/CTNS	500pcs/ctns
CTN Size	400250150mm
Shipping	By courier or by sea
Delivery time	5-30 da

Company Information

Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd.
In 1998	The company was founded. Specializes in manufacturing of gas appliance. Such as: Thermocouple,ODS,Thermostat,Magnet valve etc.
In 2002	we have a number of outstanding engineers and perfect laboratory which make sure that we can prodcue great products.
In 2009	Company through the ISO9001 Our thermocouple passed the CSA.
In 2011	ERP system & ISO (matching the ERP) began to be applied. fully guarantee products' quanlity and efficient internal management.
In 2012	ODS Pilot burner has 5 patents, and passed the CSA by one-time. The shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%).
In 2014	We moved into the new factory, Have more advanced equipments, technology and professional team.
Our customers all over the world. High quality products and good services are make us be recognized by the customers Our belief: let every family gas equipment more safety and environmently

Our Campany

Product testing

Our Services

Fan heater thermostat with gas thermocouples

Our services

1.Inquiry response:Your inquires will be replied in 24hours

2.Samples support:Two free samples are avaliable in 2-5days.

3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
