Specifications
1.High quality2. Different styles
3.Used with thermocouple
4.Customization
High and low temperature thermostat/Temperature
Product Description
About High and low temperature thermostat/Temperature differential thermostat
Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .
The pressure of the often open flame traffic and the main airway can be adjust .
There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.
Scope of Application
Parameter Specification
Operating temperature |
13℃—38℃ |
Customization |
Intake way |
1/2---14NPT . Quick connector |
Customization |
Outlet way |
M16×1.5 , 3/8—19NPT |
Customization |
Material |
Aluminum alloy |
|
Maximum intake pressure |
50mbar |
|
Exhaust pressure |
3—18mbar |
|
Voltage regulator |
Without |
|
Solenoid valve drop-away current and absorption current |
80—200mA |
Customization |
Sealed way |
Rubber seal |
|
Thermocouple interface |
M8×1.0 , M9×1.0 |
Customization |
SUITABLE GAS |
Liquefied petroleum gas, natural gas |
|
Drive mode |
Thermal expansion |
|
Ambient Temp |
0℃—80℃ |
|

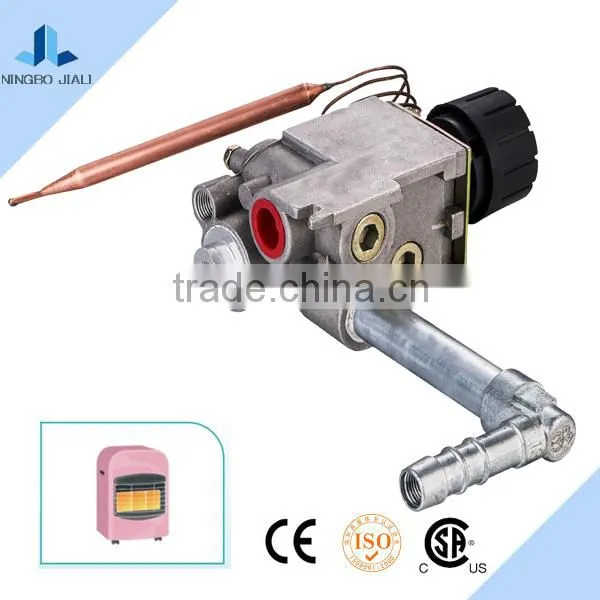

The picture of the High and low temperature thermostat/Temperature differential thermostat
Packaging and Shipping
High and low temperature thermostat/Temperature differential thermostat
Usually carton packaging, or PVC bag with a label.
Specifically according to the customer to your needs,
you can use any packaging situation.
| PCS/BAG | 25pcs/bag |
| PCS/CTNS | 500pcs/ctns |
| CTN Size | 400*250*150mm |
| Shipping | By courier or by sea |
| Delivery time | 5-30 da |
NingBo JiaLi Gas Science And Technology Co.Ltd.
Our Services
High and low temperature thermostat/Temperature differential thermostat
Ningbo Jiali supply samples for free
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
Related Products
No.1 Thermocouple head,Connector,Fixing parts, Temerature controller
No.2 ODS
|
Thermocouple, ODS, Solenoid Valve, Thermostat |
Our campany has passed the ISO9001
CE, CSA
and have six patents of our products
More details, please contact Elian.Thanks!
