Specifications
1.Used with thermocouple2.Have different styles
3.Temperature controlled valves
4.Customization
Product Description
About temperature control valve
Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .
The pressure of the often open flame traffic and the main airway can be adjust .
There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.
Scope of Application
Parameter Specification
Operating temperature |
13℃—38℃ |
Customization |
Intake way |
1/2---14NPT . Quick connector |
Customization |
Outlet way |
M16×1.5 , 3/8—19NPT |
Customization |
Material |
Aluminum alloy |
|
Maximum intake pressure |
50mbar |
|
Exhaust pressure |
3—18mbar |
|
Voltage regulator |
Without |
|
Solenoid valve drop-away current and absorption current |
80—200mA |
Customization |
Sealed way |
Rubber seal |
|
Thermocouple interface |
M8×1.0 , M9×1.0 |
Customization |
SUITABLE GAS |
Liquefied petroleum gas, natural gas |
|
Drive mode |
Thermal expansion |
|
Ambient Temp |
0℃—80℃ |
|

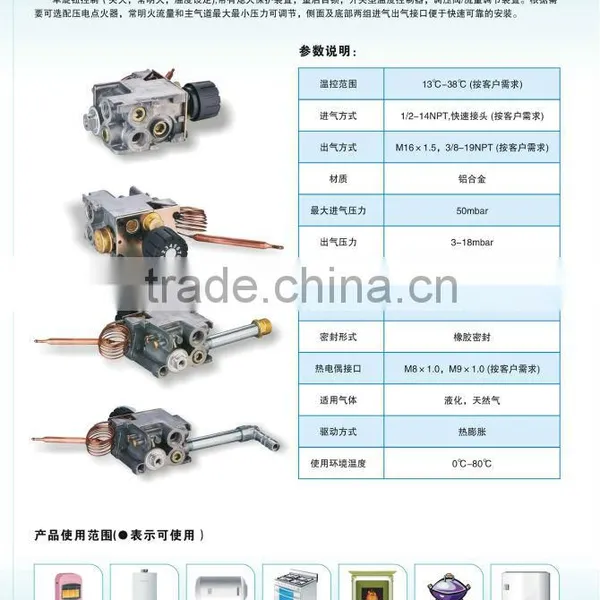

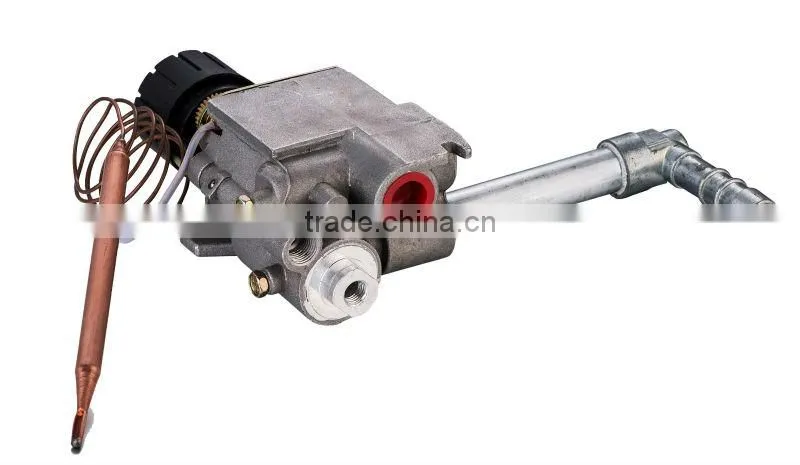

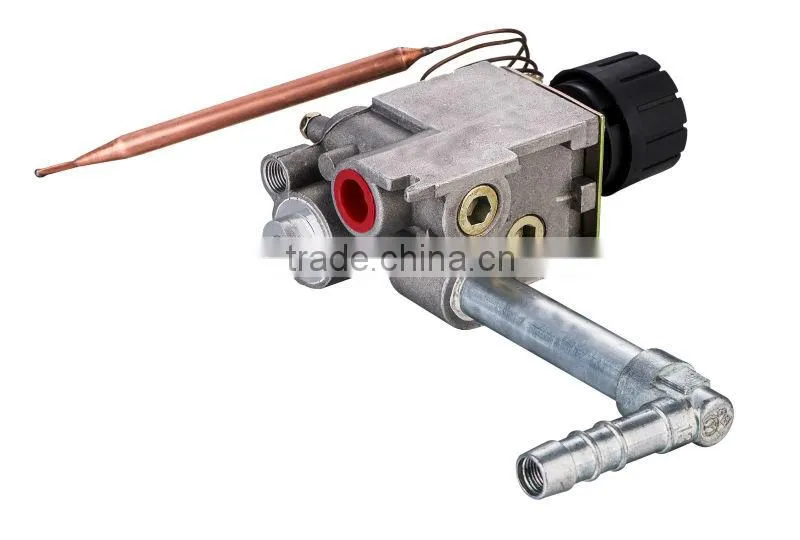

The picture of the Temperature controlled valves
Packaging and Shipping
Temperature control valve
Our gas thermocouple burner gas stove thermocouple
NingBo JiaLi Gas Science And Technology Co.Ltd.
Our Services
Temperature control valve
Ningbo Jiali supply samples for free
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
Temperature control valve
No.1 Thermocouple head,Connector,Fixing parts, Temerature controller
No.2 ODS
|
Thermocouple, ODS, Solenoid Valve, Thermostat |
Our campany has passed the ISO9001
CE, CSA
and have six patents of our products
