High Temperature Sensor ODS Pilot Burner

Name: High Temperature Sensor ODS Pilot Burner
Brand: JIALI
SKU: 112539583

US$ 1.4 - 1.8 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JIALI

Model Number:

ODS03

Ningbo Jiali Gas Appliance & Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JIALI

Model Number ODS03

Our tenet

Let every family has a more laughter more secure environment

Product Description

About High temperature sensor ODS pilot burner

ODS pilot burner works as safety device for gas appliance.

Like grills,heaters and stoves with enery-saving.

Technical parameter
Heating characteristic	≥12mV (within 20s at 650°C)
Cooling characteristic	≤1.5mV(within 60s)
Range of length	150mm(5.9inch)~ 1800mm(71inch)
Range of resistance	(10~50)±3 mΩ

Operating conditions:
Range of ambient temperatures: 0°C ~ 52°C (32°F to 125°F)

Maximum operating temperatures:
Thermocouple Tip:750ºC / 1382°F
Thermocouple Wire:180ºC / 356°F
Cold Junction:150 ºC / 302°F Injector(Burner):750ºC / 1382°F

The picture of the High temperature sensor ODS pilot burner

Oxygen depletion sensor Gas Heater ODS pilot burner

Technical parameters
Applicable gas species	LPG,NG,Propane & Butane
CO2	0.8%-1.5%
O2	≥19.0%
CO	≤50ppm
Inner resistance	5-50±3 mΩ
No-load potential	≥20mV(650℃)
Connector	Nut (M81,M91) or others
Axial tension 50N, sustain 1 min, no loose, no cut
The length according the client’s request

ODS 03 with single flame mainly for unflued appliances burning LPG and NG.

Suitable for particular blue flame burners where an ODS is a requirement.

All components are integrated to guarantee performance

And for quick and easy assembly on to the GAS APPLIANCES.

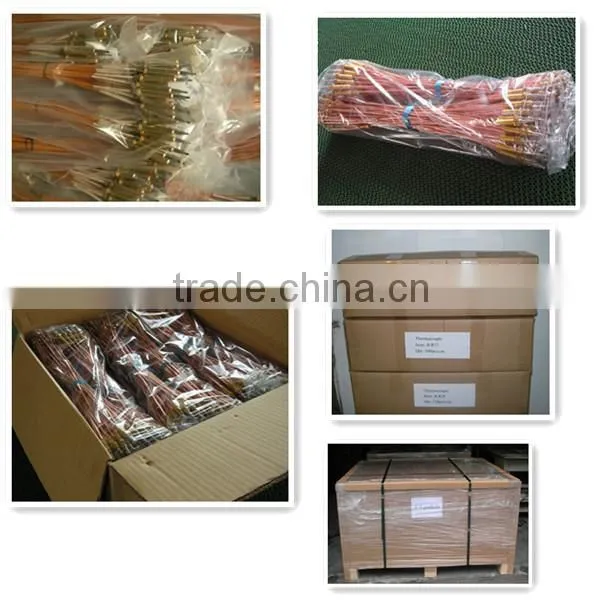

Packaging & Shipping

High temperature sensor ODS pilot burner

Packaging and Shipping

Usually carton packaging, or PVC bag with a label.

Specifically according to the customer to your needs,

you can use any packaging situation.

Company Information

Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd.
In 1998	The company was founded. Specializes in manufacturing of gas appliance. Such as: Thermocouple,ODS,Thermostat,Magnet valve etc.
In 2002	we have a number of outstanding engineers and perfect laboratory which make sure that we can prodcue great products.
In 2009	Company through the ISO9001 Our thermocouple passed the CSA.
In 2011	ERP system & ISO (matching the ERP) began to be applied. fully guarantee products' quanlity and efficient internal management.
In 2012	ODS Pilot burner has 5 patents, and passed the CSA by one-time. The shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%).
In 2014	We moved into the new factory, Have more advanced equipments, technology and professional team.
Our customers all over the world. High quality products and good services are make us be recognized by the customers Our belief: let every family gas equipment more safety and environmently
