Home > Products > Magnet valve > Electromagnet valve
Electromagnet valve
- 300 Piece / Pieces per Month
- NingBo
- T/T L/C D/P D/A
Product Details
Standard or Nonstandard: | Standard | Structure: | Safety | Pressure: | Medium Pressure |
Power: | Solenoid | Material: | Other, Aluminum and brass | Temperature of Media: | Medium Temperature |
Media: | Gas | Port Size: | - | Place of Origin: | Zhejiang, China |
Model Number: | ZDFB8.5 | Brand Name: | JiaLi | Application: | Other, Gas cooker heater,gas oven,gas stove,gas fireplace |
Product Description
Product Description
About Electromagnetic valve
Electromagnetic valve Technical Data | |
Opening electrical current: | ≤3mA |
Closing electrical current: | ≥1.8mA |
Free stroke: | 28±0.5mm |
Working stroke: | 25±0.4mm |
Inherent resistance: | 52mΩ±3% |
Sealing force(full compression): | ≥1.4N |

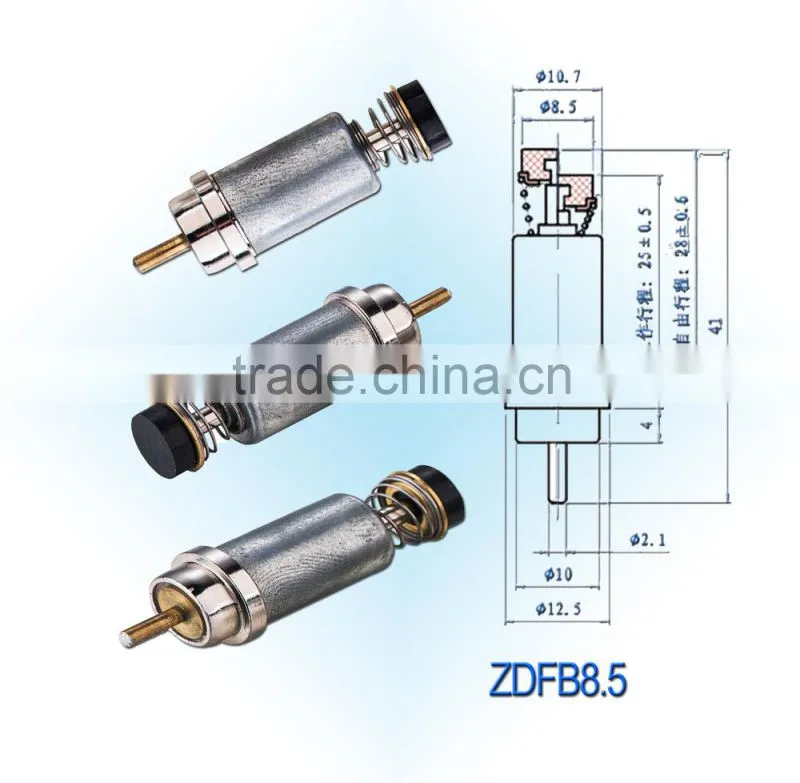

The picture of the Electromagnetic valve
The Electromagnetic valve used with thermocouple together
Scope of application:Gas stove,gas oven,gas heater,gas fireplace,water heater, outdoor gas BBQ

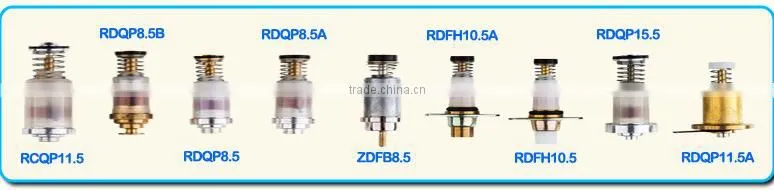

Some other styles of Electromagnetic valve
The Size,material , style and others.All you need to design, we can be customized.

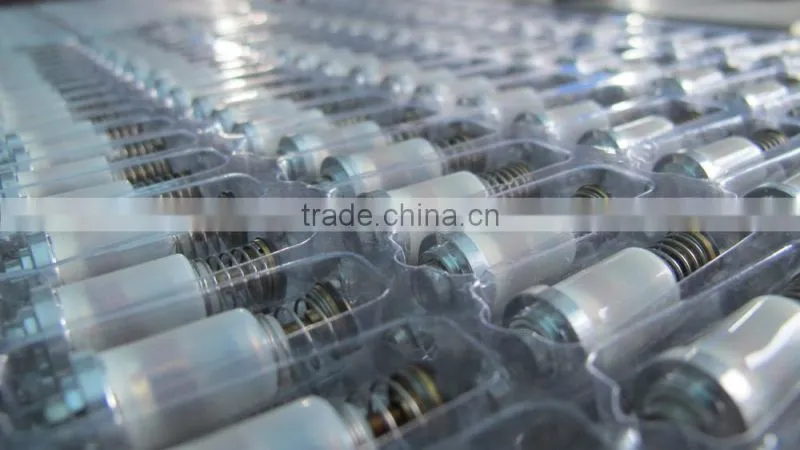

Packaging and Shipping
Electromagnetic valve
Usually carton packaging, or PVC bag with a label.
Specifically according to the customer to your needs,
you can use any packaging situation.
PCS/BAG | 25pcs/bag |
PCS/CTNS | 500pcs/ctns |
CTN Size | 400*250*150mm |
Shipping | By courier or by sea |
Delivery time | 5-30 da |
NingBo JiaLi Gas Science And Technology Co.Ltd.
Our Services
Electromagnetic valve
Ningbo Jiali supply samples for free
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
Related Products
No.1 Thermocouple head,Connector,Fixing parts, Temperature controller
No.2 Pilot bunner, ODS, Ignitor, Ignitor wire, Thermostat vale & Accessories,
Thermocouple, ODS, Solenoid Valve, Thermostat |
Our campany has passed the ISO9001
CE, CSA
and have six patents of our products
