Home > Consumer Electronics > Display & Accessories > LCD Module > 4.3inch 480*272 RGB Interface Landscape Tft Lcd Touch Display With RTP
4.3inch 480*272 RGB Interface Landscape Tft Lcd Touch Display With RTP
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW043N-SV1-TSP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.3inch 480*272 RGB Interface Landscape Tft Lcd Touch Module With CTPNegotiableMOQ: 1 Piece -
4.3inch 480*272 RGB Interface Landscape Tft Display ModuleNegotiableMOQ: 1 Piece
-
4.0inch 480*800 RGB Interface Tft Lcd ScreenNegotiableMOQ: 1 Piece
-
3.5inch 320*240 RGB Interface Landscape Tft Lcd Touch Screen With MCU/RGB/SPI InterfaceNegotiableMOQ: 1 Piece
-
3.5inch 480*640 HX8363-A High Resulation IPS Lcd Display With RGB/MCU/SPI InterfaceNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW043N-SV1-TSP
Type
Other, TFT, TFT
4.3inch TFT LCD module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 4.3inch lcd module |
| 2 | Model number | SW043N-SV1-TSP |
| 3 | Size | 4.3INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 480*272 |
| 9 | Piexel pitch | 0.066 (H) x 0.198 (V) |
| 10 | Dimension | 105.10*67.2*4.0 mm |
| 11 | Active area | 95.04*53.86mm |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | RGB |
| 17 | Response time | 10ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 300cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 25.6V |
| 25 | Current for LED | 20mA |
| 26 | Consumption | / |
| 27 | Module weight | |
| 28 | Drive IC | ILI6408B |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

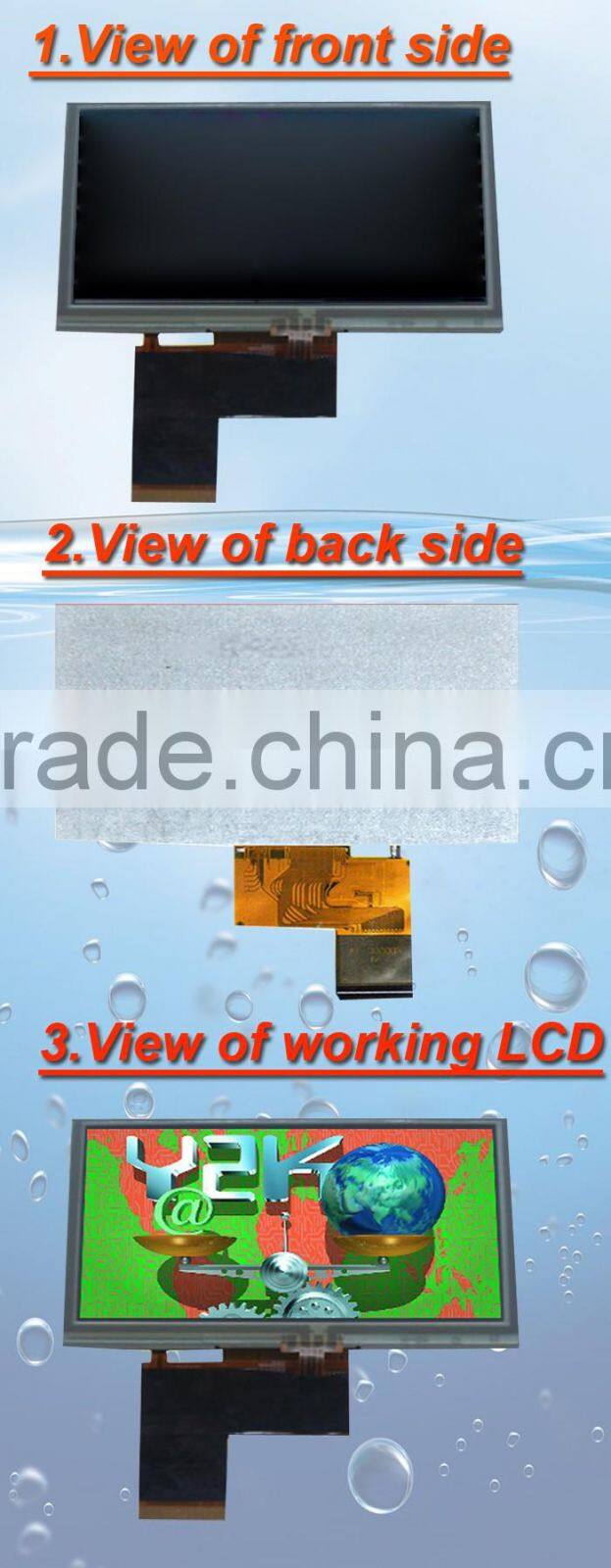

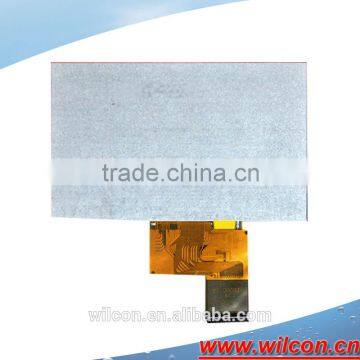

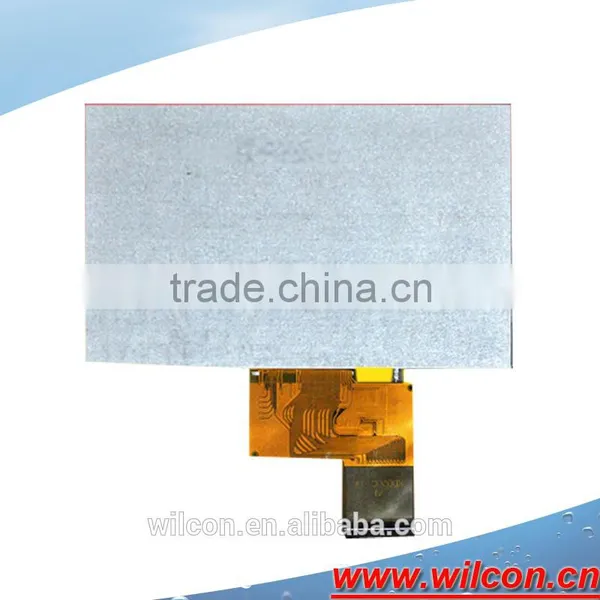

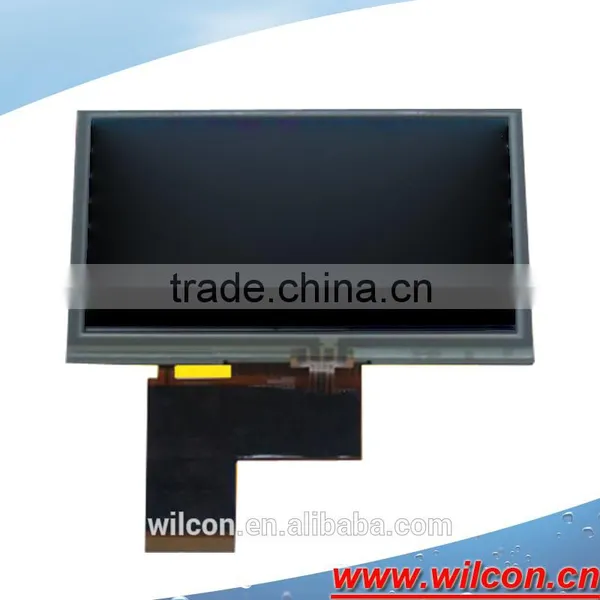

LCD PICS

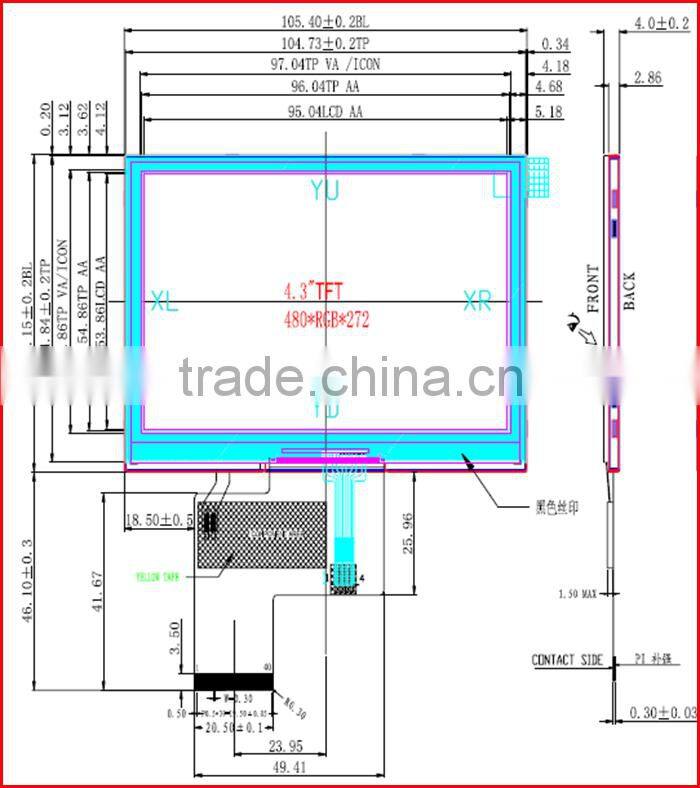

LCD structure
