8inch 800*600 RGB Interface 250 Nits Wide Screen Tft Lcd Display for Industrial Use
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW080NA-SV05
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.3inch 480*272 Resistive Touch Screen Lcd With Hdmi BoardUS$ 0.1 - 99MOQ: 1 Piece -
4.3inch 480*272 Hdmi Interface Lcd Panel With Capacitive TouchUS$ 0.1 - 99MOQ: 1 Piece
-
4.3inch 480*272 Hdmi Interface Lcd ScreenUS$ 0.1 - 99MOQ: 1 Piece
-
4.3inch 480*272 MCU Interface Tft Lcd Module Built in SSD1963US$ 1 - 99MOQ: 1 Piece
-
5inch 800*480 Hdmi Interface Capacitive Touch Screen Lcd With Hdmi BoardNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW080NA-SV05
Type
Other, TFT, TFT
8.0inch TFT LCD display
1.LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 8.0inch tft lcd display |
| 2 | Model number | SW080NA-SV05 |
| 3 | Size | 8.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 4:3 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 800*600 |
| 9 | Piexel pitch | 0.0675*(W)*0.2025(H) |
| 10 | Dimension | 183*141*5.6mm |
| 11 | Active area | 162*121.5 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | RGB |
| 17 | Response time | 30ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 250cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.9V |
| 25 | Current for LED | 180mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Plain |
| 31 | Pin number | 50PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | Both Capacitive touch and Resistive touch are available,depends on customer need. |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.
LCD PICS

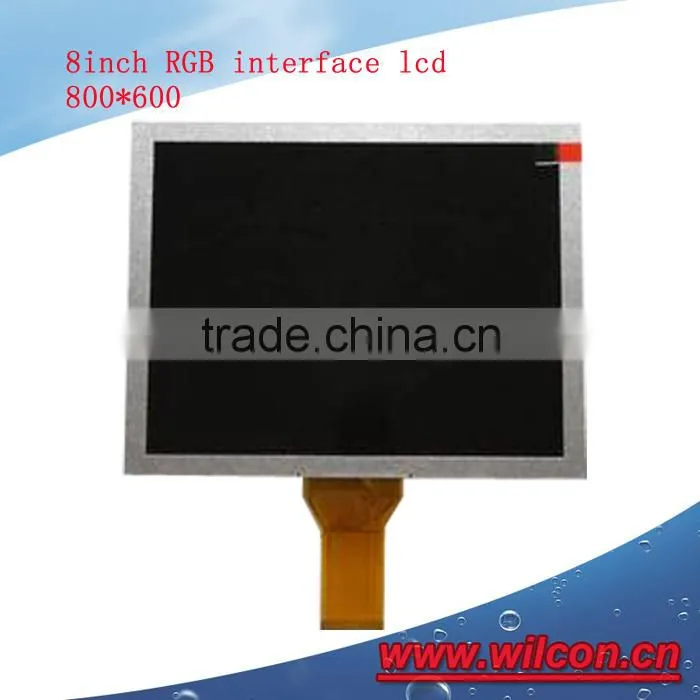

View of lcd front pic

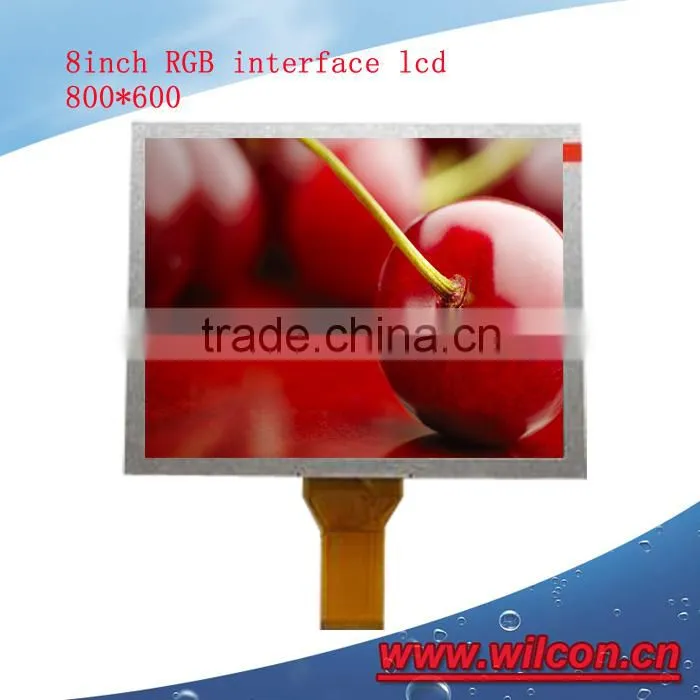

View of lcd working pic

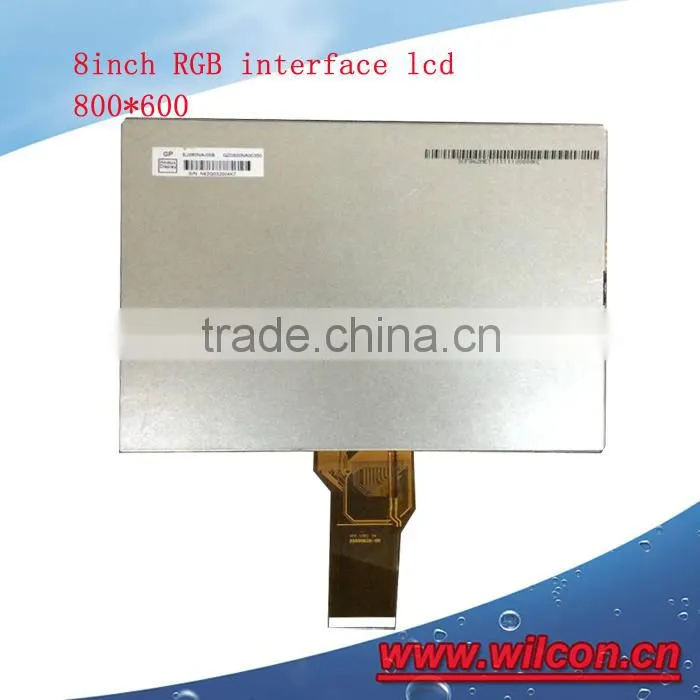

View of lcd back pic

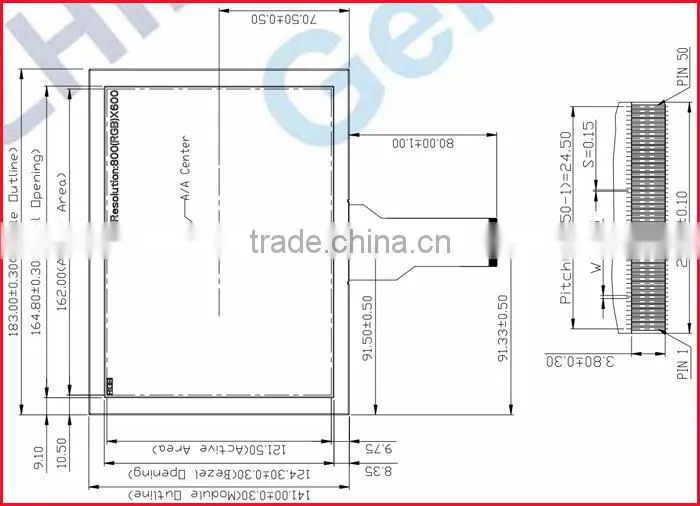

LCD structure
