8inch 300nits 800*1280 MIPI Interface IPS Tft Lcd Display Panel
US$ 20.00 - 30.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW080A-SV06B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11.6inch 1366*768 IPS Lcd Panel Module Full Viewing Angle Lvds Screen With 400nits BrightnessUS$ 25.00 - 35.00MOQ: 1 Piece -
7inch 250nits 1024*600 Lvds Interface IPS Panel Touch Screen With RTPUS$ 20 - 30MOQ: 1 Piece
-
4.8inch 540*960 560nits Sunlight Readable IPS Lcd Display Panel With MIPI InterfaceNegotiableMOQ: 1 Piece
-
10.1inch Lvds 350nits 1280*800 IPS Screen Touch Panel With USB CTPNegotiableMOQ: 1 Piece
-
10.1inch Lvds 350nits 1280*800 IPS Screen Touch Lcd Panelwith I2C Interface CTPNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW080A-SV06B
Type
Other, TFT, TFT
8.0inch MIPI interface IPS tft screen panel
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 8.0inch IPS tft screen panel |
| 2 | Model number | SW080A-SV06B |
| 3 | Size | 8.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Normally black, Transmissive |
| 8 | Resolution | 800*1280 |
| 9 | Piexel pitch | 0.04485*0.13455 |
| 10 | Dimension | 184*114.6*2.45MM |
| 11 | Active area | 172.224*107.64 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | MIPI |
| 17 | Response time | 39ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 300cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.6V |
| 25 | Current for LED | 140mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -10----50℃ degrees |
| 2 | Storage Temperature | -20----60℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

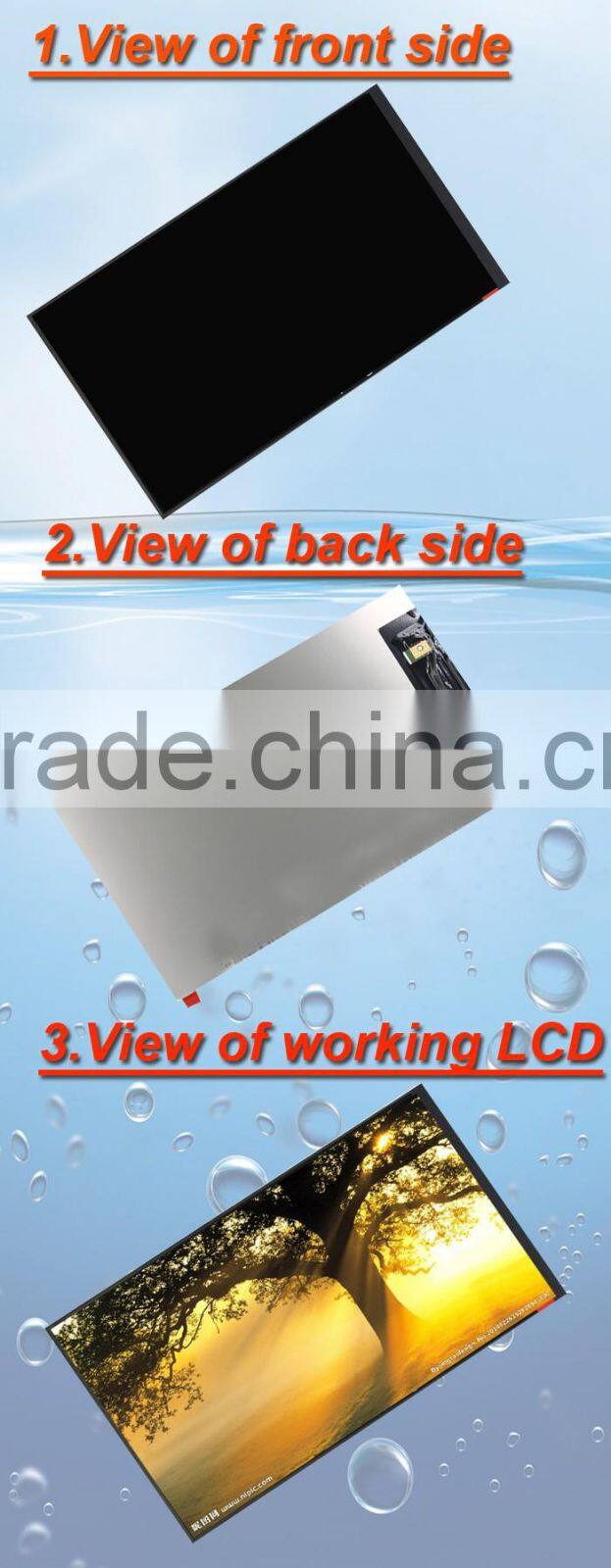

LCD PICS

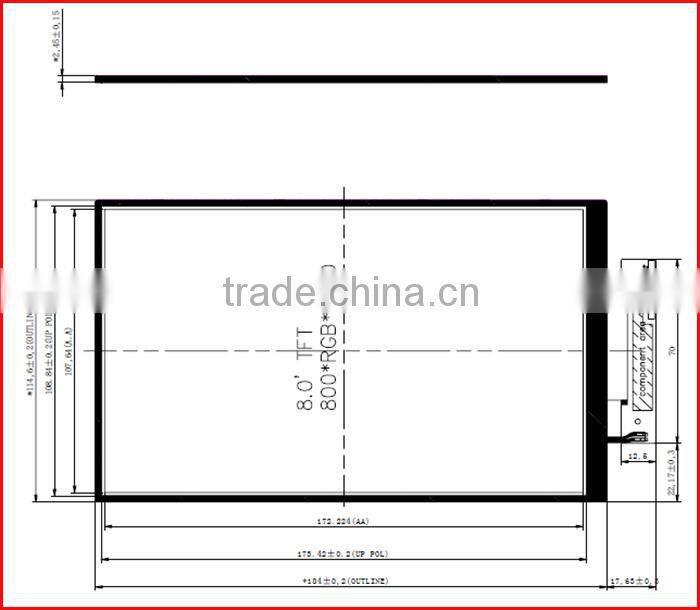

LCD structure
