7inch 800*480 RGB Interface 500nits Outdoor Lcd Touch Screen With Resistive Panel
US$ 20 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW070N-SV5-TSP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7inch 800*480 RGB Interface 500nits Sunlight Readable Tft Lcd Panel ScreenUS$ 20 - 30MOQ: 1 Piece -
7inch 800*480 RGB Interface 1000nits Sunlight Readable Lcd Panel ScreenNegotiableMOQ: 1 Piece
-
84inch 3840*2160 Lvds Interface IPS Sunlight Readable Tft Lcd ModuleNegotiableMOQ: 1 Piece
-
82nch 1920*1080 Lvds Interface IPS Sunlight Readable Lcd ModuleUS$ 25 - 30MOQ: 1 Piece
-
80inch 1920*1080 Lvds Interface IPS Sunlight Readable Lcd DisplayNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW070N-SV5-TSP
Type
Other, TFT, TFT
7.0inch high brightness lcd touch module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 7.0inch high brightness lcd touch module |
| 2 | Model number | SW070N-SV5-TSP |
| 3 | Size | 7.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 800*480 |
| 9 | Piexel pitch | 0.0642(W)*0.1790(H) |
| 10 | Dimension | 164.9*100.0*4.45mm |
| 11 | Active area | 154.08*85.92 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | RGB |
| 17 | Response time | 25ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 500cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 25000hours |
| 24 | Voltage for LED | 9.3V |
| 25 | Current for LED | 180mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | 4 wire resistive touch panel |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

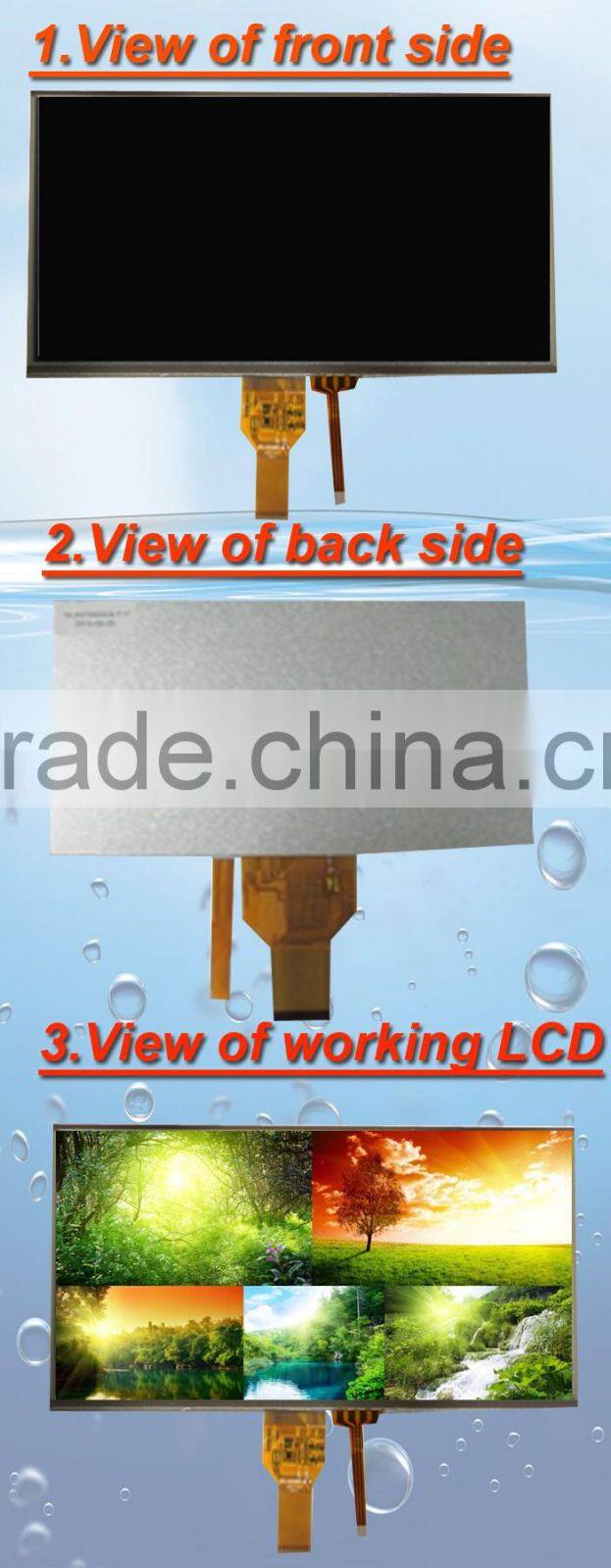

LCD PICS
Product structure
