4.3inch Tft Lcd Module Driving Board

                                           4.3inch driving board

1. Product name: 4.3inch VGA driving board

2. Application:To drive wilcon SW043N-SV1/SW043N-SV2/

                         SW043N-SV1-TSP/SW043N-SV1-CTP

3. Function description:

   3.1 VGA,CVBS1,CVBS2,(optional)video signal input

   3.2 Power input:DC +12V

   3.3 Mutil function OSD operation

   3.4 Remote keyboard

4. Signal input standard: 4.1 CVBS: 1.0Vp-p75Ω

                                             4.2  VGA: 800*600  640*480

5. Operation environment: 5.1 Operation Temperature:-10℃~+60℃

                                                5.2 Operation Humidity: 90%RH

6. 6.1 Storage environment :6.1Storage Temperature: -20℃~+70℃

                                                   6.2 Storage Humidity: 90%RH

7. Working Voltage(4.3inch:

8. LCD specification

    8.1 Resolution(pixels);480*RGB*272 (Landscape)

    8.2 Active Area;95.04*53.86mm

    8.3 Pin NO: 40Pins

    8.4 Interface type: 8/16/18/24 bit RGB interface

    8.5 Backlight type and color:LED backlight/white

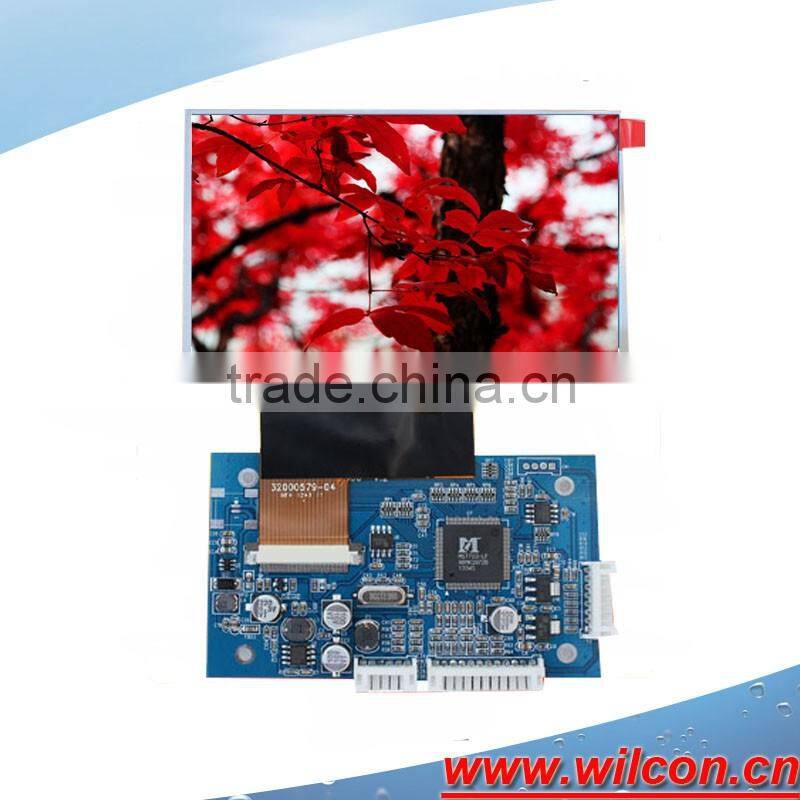

9.The lcd and board pic

10. The vga board

11.The VGA wire

12.The LVDS wire

13.The backlight wire

14.The power line
