5inch 800*480 IIC interface CTP
Part 1:5inch capacitive touch panel parameters
| 1 | Part NO | SW-2620 |
| 2 | Structure | G+G |
| 3 | Type | Projected touch panel |
| 4 | IC | FT5206 |
| 5 | Size | 5inch |
| 6 | Thickness | 1.45mm |
| 7 | Outline of cover Lens | 118.5*77.55mm |
| 8 | Outline of ITO Sensor | 117.5*76.05mm |
| 9 | Viewing Area | 109*66mm |
| 10 | Active Area | 110*67mm |
| 11 | Interface | IIC |
| 12 | Number of touch point | 5points |
| 13 | Input Voltage | 3.3V |
| 14 | Response Time | 10ms |
| 15 | Pressure endurance | 10g |
| 16 | Input Way | Hand writing or capacitive pen |
| 17 | Transmittance | >85% |
| 18 | Hitting life | 3,5000,000 times |
| 19 | Surface Hardness | 6H |
| 20 | Warranty | 12months |
| 21 | Packing material | box |
| 22 | Shipment | Express*Air*Sea |
| 23 | Application | Electric equipment and outomatic office facilities |
Part 2:Operation Speficifactions of 5inch capacitive touch panel
| 1 | Operature Temperature | -20 to 70℃ |
| 2 | Operature Humidity | <90%RH |
| 3 | Storage Temperature | -30 to 80 ℃ |
| 4 | Storage Humidity | <90%RH |
Part 3:Pin configuration
Part 4:Lead time for 5inch capacitive touch panel
1.Sample:2 working days
2.Mass production:2-4weeks

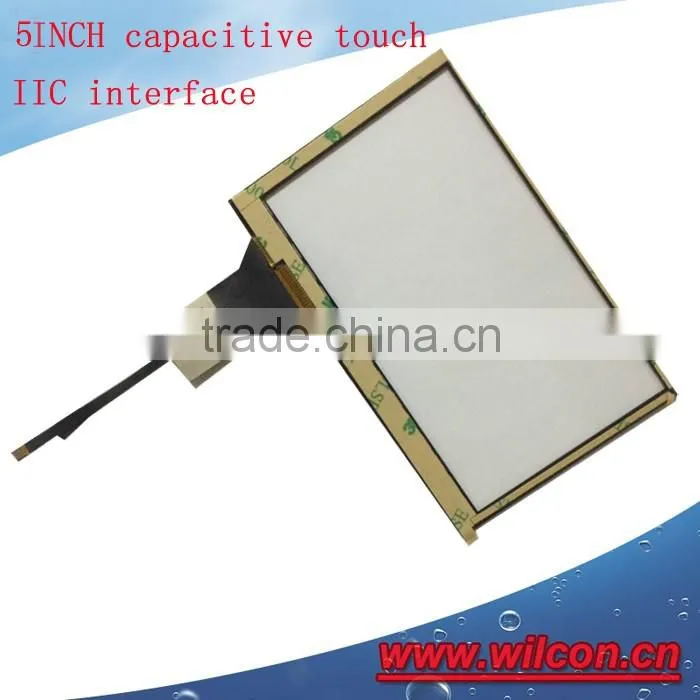

Part 5: 5inch capacitive touch panel front pic

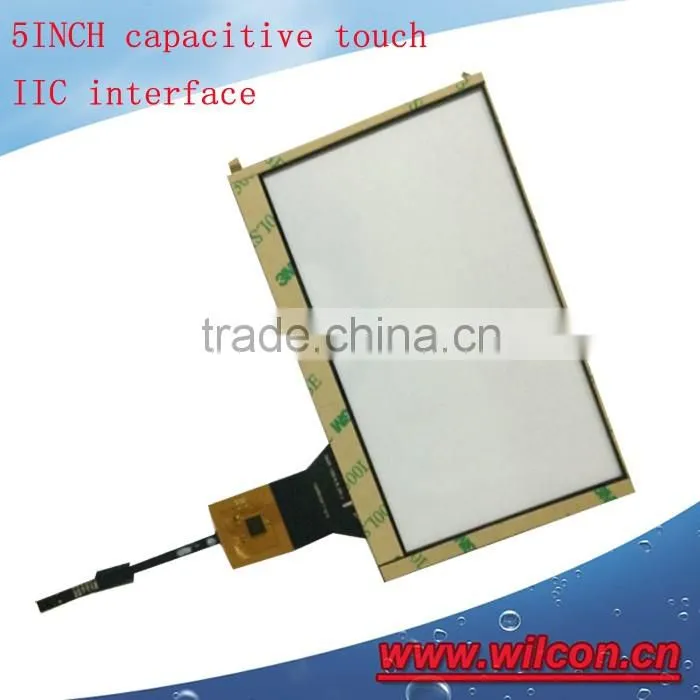

5inch capacitive touch panel back pic

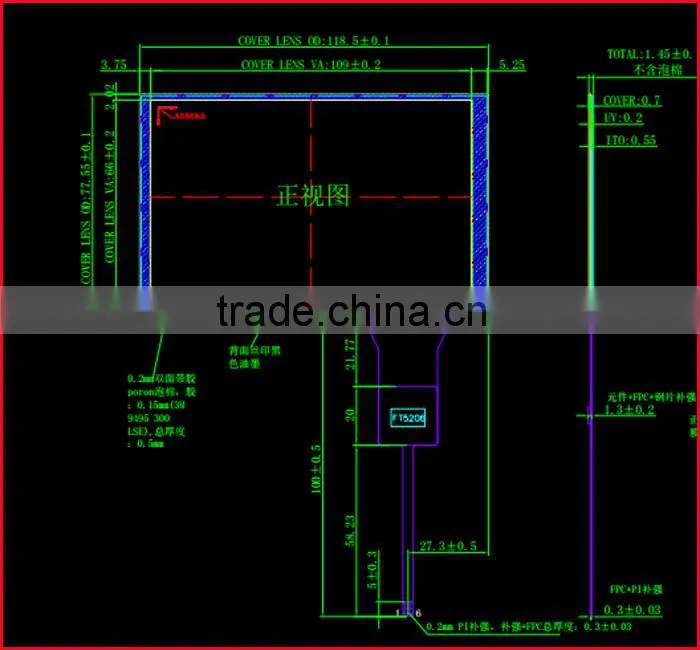

.Part 6:5inch capacitive touch panel drawing
Packaging & Shipping
Our Services
If you are interested in the 7inch capacitive touch panel ,pls contact us for more information
