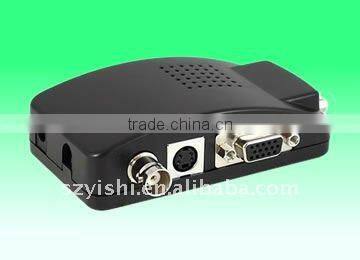

Help CenterBNC to VGA 1920 HD Video Converter AV01 CVBS S-Video to VGA Digital Video Converter
Related Products
-
5Km Wireless Usb Transmitter ReceiverUS$ 75 - 75MOQ: 2 Pieces -
H.264 Network 8ch Standalone DVR/ VGA USB Backup 1T HDD PTZ/ Cell Phone MonitorNegotiableMOQ: 1
-
DAR-8CH Telphone Phone Call Recording DeviceUS$ 148 - 180MOQ: 1 Piece
-
YS IP2031 Video Server / ip Cams / Covert CamerasNegotiableMOQ: 1
-
Analog to Digital Video Converter BNC RCA to Max 1920 High Definition VGA Video ConverterUS$ 15 - 17MOQ: 10 Units
Detailed Product Description
RCA to VGA, YS-BNC01, BNC/S-VIDEO signal into VGA Converter, Supports signal:VIDEO, S-VIDEO,CVBS,VGA; Support system: PAL/NTSC
Notice: It can support 1920X1200 High Definition output, greatly impressive. Needless to doubt that our price USD16.00 is the lowest price all over the world.
VIDEO CONVERTER USER MANUAL
AV/BNC TO VGA
Thanks for your purchase of this product. To enjoy your set to the fullest, read this manual carefully and keep it handy for future reference
Contents
1 Brief introduction …………………………………………………………………………..1
2 Features …………………………………………………………………………………....1
3 Operation ……………………………………………………………………………………2
4 Jacks ………………………………………………………………………………….……2
5 Accessories list ………………………………………………………………….………. 2
1 Brief introduction
This product(AV/BNC to VGA) convert the signal(CVBS, S-VIDEO, BNC) to VGA format, display the picture naturedly, and point to point on the screen. It is widely used in security surveillance, medical treatment and household domain, DVR, school, video booth, metro engineering and industry, to replace the old CRT displayer. It is small size, and easy to be restored.
2 Features
·Input: CVBS, S-VIDEO
Output: VGA
·Support PAL, NTSC, SECAM system
·VGA output resolution from 800X600 to 1920X1200
·Picture freeze
·Digital Comb filter to discrete the luminance and Chrominance
·3D motion adaptive processor
·Standard VESA signal output design
·Industrial product design, a 24-hour non-stop working, stable and reliable
·With small size and facilitates placement
·5V/1A power adapter
3 Operations
Name |
BNC to VGA convertor box |
(1)Input |
Video input source switch: CVBS>>S_VIDEO(C/Y)>>VGA |
(2) Standby |
Standby |
(3)Freeze/+ |
Press“ Freeze /+” to freeze and un-freeze the picture |
(4)Resolution/- |
press“ Resolution /-” to switch the out resolution 800X600@60HZ,800X600@75HZ,1024X768@60HZ,1280X1024@60HZ, 1440X900@60HZ,1680X1050@60HZ,1920X1080@60HZ,1920X1200@60HZ, Default value: 1024X768@60HZ |
Note: Press Input + Resolution system reset and recover the setting with default value
4 Jacks
Name |
Note |
VGA Out |
Connected to monitor |
AV(CVBS) In |
Connected to video source (such as DVD, camera, DVR) |
S-VIDEO In |
Connected to video source (such as DVD, video recorder) |
VGA In |
Connected to computer or others |
DC 5V |
Connected to power adapter |
LED |
Lighted when power on |
5 Accessories list
Main set |
1 |
Power adapter |
1(note: 5V/1A) |
AV cable |
1 (CVBS Jack is RCA, no this cable when BNC Jack version) |
SVIDEO cable |
1 |
VGA cable |
1 |
User manual |
1 |
I
