infinity phaeton digital flex solvent printing plotter 3.2M
Quite details:

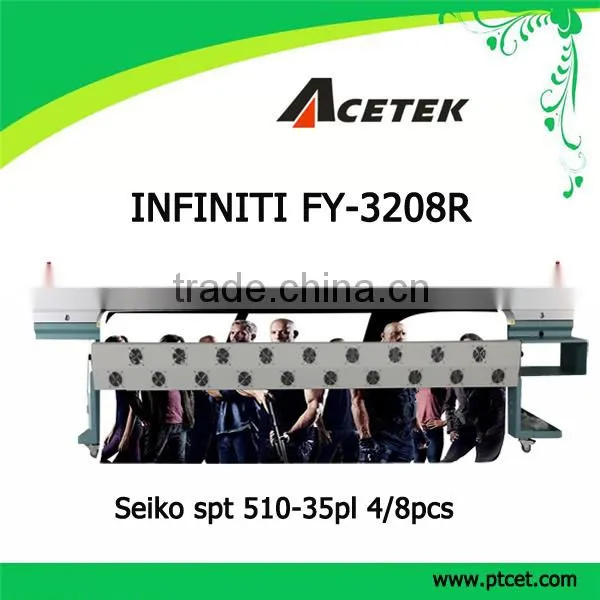

Product name: Infiniti FY-3208 solvent printer with spt head
Print head: 4/8 pcs SPT510/35PL printhead
Max printing width: 3.2m
Colors: 4 or double 4colors printing, C, M, Y, K,
Suitable ink: Infiniti SK-4 solvent ink, sk-4 solvent ink
1. Printer can choice to 4 or double 4color printing , Printing speed at the standard
model achieves 76 m2/hr.
2. The carriage can move more quickly and stable because of AC servo motor.
3. Print head with Individual color cleaning system, the minimizes waste of the ink .
4. 3 ways intelligent heater (front, middle, back) bring you more vivid output.
5. The alloy-aluminum printing platform and the girder is more strong and flat.
6. Printer adopt USB2.0 output system , it is faster and more flexible.
Specification:
Model |
FY-3208R |
|
Print Head |
Spt510/35pl |
|
Number of Print Head |
8 Heads |
|
Maximum Print Width |
3,200mm (125.98”) |
|
Print Speed |
Draft |
2 Pass 101 m2 /hr |
Standard |
3 Pass 76 m2/hr |
|
Quality |
3 Pass 51 m2/hr |
|
High Quality |
4 Pass 28 m2/hr |
|
Max. Media Width |
3,300mm (129.92 inch) |
|
Max. Media Weight |
80kg |
|
Media Type |
Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper… |
|
Media Thickness |
4mm (Max.) |
|
Heating System |
3 way intelligent heater |
|
Auto Media Feeding & Take-up System |
Equipped |
|
Ink |
Solvent Ink (C,M,Y,K) |
|
Auto Cleaning System |
Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System |
|
Print Interface |
USB 2.0 |
|
Power Specification |
AC 220V/230V 50Hz/60Hz; Printing: 770W Heater: 1980W |
|
Operational Environment |
Temperature: 20°C-28°C Humidity: 40%-60% |
|
Compatible RIP Software |
Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maintop |
|
Machine size |
L4460mm X W905mm X H1280mm 348kg |
|
Package size |
L4590mm X W1100mm X H940mm 553kg |
|
Photos showing:
digital printing plotter

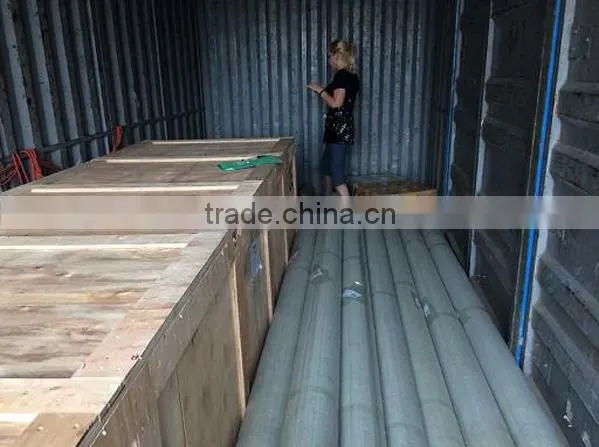

packing size: L4590mm X W1100mm X H940mm (seperate feet)
gross weight: 553KG
we have enough stock which can statify with our customer need
1. Every set solvent printer, eco solvent printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.
2. Our engineer full of experience, and they are english speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.
3. You are alway welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of solvent printer, eco solvent printer.
4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charge.
Note: before you place an order, customer can ask any technology problem, we can reply to you in time,
in addition, we aslo provide extra technology guide and parts, even if customer's machine is not from ours
our suggestion:
considering market has different kind of sk4 ink and almost every suppliers says that they are original, so we strongly suggest customer to distinguish which kind is original sk4 ink before buying.
our engineer Yang in Turkey

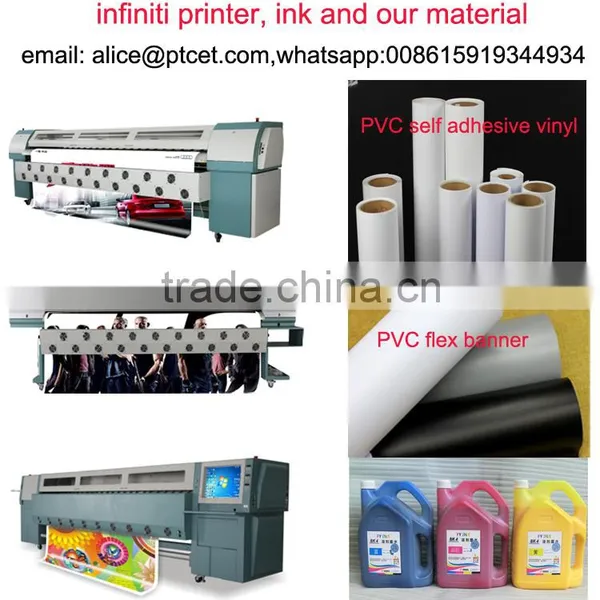

except to infiniti solvent printer, we aslo deal with series SK4 ink, SK1 ink, galaxy printer, DX5/DX7/DX8 series proudct, in addition, we aslo provide PVC flex banner, vinyl, laminaiton film....please check our loading

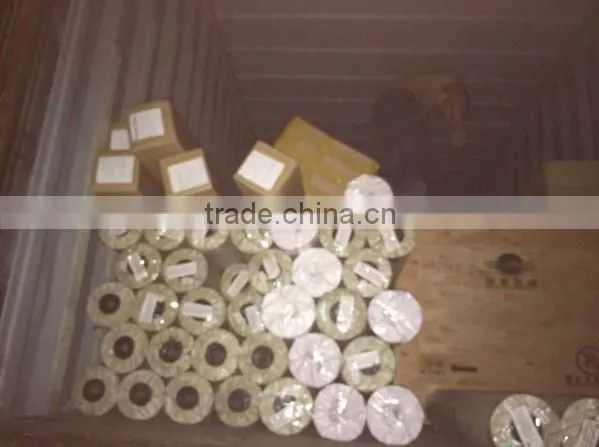

flex banner, vinyl ,sk4 ink and our machine mix one container
please check our related product :
1. Where is your factory and company?
Our factory is Guangzhou, you can come to my factory or our showroom to see printer, ink
and printing material together.
2. Can I get catalogue and free sample ?
Yeas, we provide free catalogue for our printer, ink and printing material
Printing ink, we provide 1L each color to our customer for testing
Printing material, we provide 1-2m blank material to customer for testing
3. Does your machine, ink and material have warranty?
A: about printer, we provide one year warranty for motor and boards
B: about ink and printing material, if any problem of quality, we can compensate all to my
customers.
4. Does your company can provide printing sample to us?
Of course, we can provide 1m free printing sample to our customer, we use our printer and ink.
5. Do you have engineer to provide technology on the line, it is very important for us
Yeah, we have professional engineers who can speak English, next we will have professional
engineers who can speak spanish , before customer buy our printer, welcome to ask any
technology problem, engineer can talk with customer directly.
6. If I pay to your engineer ticket and visa fees, you can send engineer to our country?
Yeah, we have 4 engineers and they mainly travel to customer’s home and work for our customers
7. Do you provide manual and viedo to your machine
Our all the machine attach manual and viedo, about viedo, you aslo can download from our facebook
8. Does your company travel business to visit to old customers?
Yeah, we have market manager,usually our market manager visit to our agent once every year and
talk business
...
