RF eas label with barcode 4*4 & EAS label with barcode 4*4 security & EAS label 4x4cm

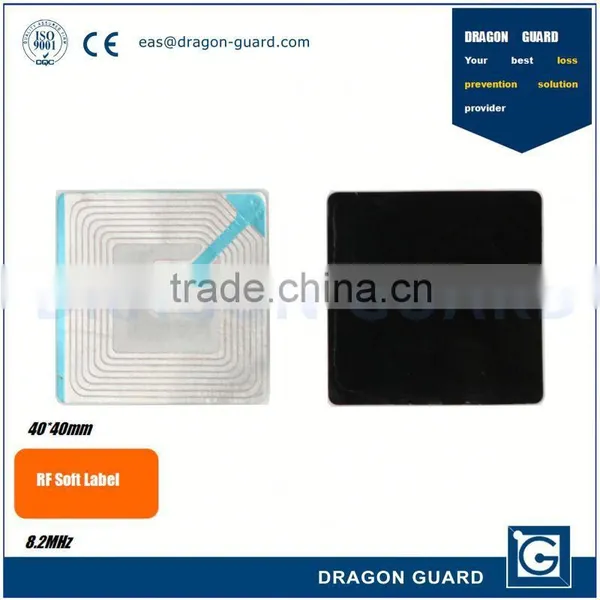

                                                      8.2 MHz EAS LAbel -- 40*40mm

Label Size (MD x TD)

40*40mm

Substrate

 20μm

Inductor Side

Aluminium, 60μm

Capacitor Side

Aluminium, 20μm

Max.Thickness

 200μm RF eas label with barcode 4*4

Shelf  life of 2 years if stored at

10°C  to 25°C(50° to 70°F)  and 35% to 65% RH

Service Temperature

 -40° to 60°C(-40°F 140°F)

Application Temperature

 Above 0°C(32°F)

Resonance Frequency

 8.2MHz(±3%)

Effective Signal Volume

  2000cm3 RF eas label with barcode 4*4

Quality Factor

 70

RF eas label with barcode 4*4 Color

Barcode/White/Black/Transparent/Thermal Paper/Customized

Quantity per Roll

1000pcs

Roll Length

 42.5

Rollo Diameter Outer

145mm

Cardboard Core Diameter Inner

76.2mm RF eas label with barcode 4*4

Box Packaging (Roll)

20 Rolls

Box Packaging (Labels)

20000 Labels

Box Gross Weight

11.0kgs

Box Dimension

29*29*23cm

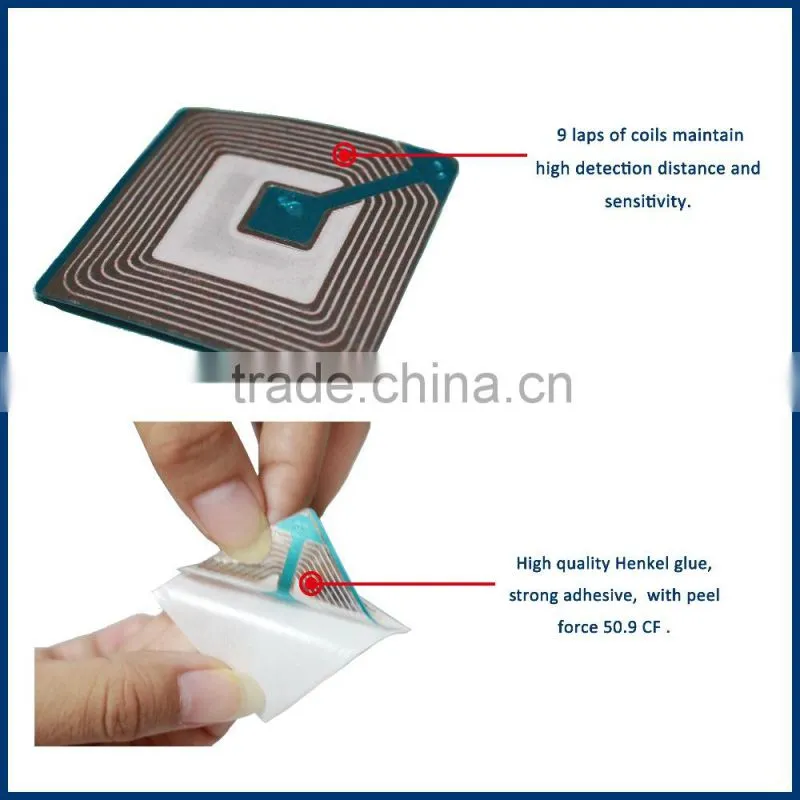

Adhesive test data(Peel Force)

First stick: 46 CF

20 min: 50.7 CF

24 hrs: 50.9 CF
