Column Lift

Name: Column Lift
Brand: Carjack
SKU: 112496221
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Design:

Other, Column Lift

Type:

One Cylinder Hydraulic Lift

Certification:

Other, TUV

Contact Supplier Request Quote Chat Now

Jia Meei Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Design Other, Column Lift

Type One Cylinder Hydraulic Lift

Certification Other, TUV

Lifting Capacity 7.5TON

Lifting Height(mm) 1700

Overall Width(mm) 1100

Place of Origin Shanghai, China

Brand Name Carjack

Model Number JMCL-16504

Specifications

1. Capacity: 7.5TON
2. Lifting Height: 1700mm
3. Type: One Cylinder Hydraulic Lift
4. Certification: TUV

Operation available at each column and the remote control handle.

The hydraulic electric system provides safe and high accurate real time control.

With up-to-date technology, SCM (Single Chip Microcomputer) control system ensures the lift’s synchronization.

Double safety system: mechanical lock and hydraulic check valve.

Waterproof design for use in commercial wash-bays.

Mobile and flexible, the system can be used indoor or outdoor.

Item No.

JMCL-16504

(4 columns)

JMCL-16506

(6 columns)

JMCL-19004

(4 columns)

JMCL-19006

(6 columns)

Lifting capacity

7.5TON (per column)

8.5TON (per column)

Technical specifications:

Max. lifting height:	1700mm	Lifting system:	Hydraulic
Power supply:	220V/ 380V/ 400V/ 415V 3 phase, 50/ 60Hz	Motor power:	2.2Kw (per column)
Supported wheel size:	500mm to 1120mm	Contactor:	ABB
Synchronization:	SCM	Relief valve pressure:	198Bar

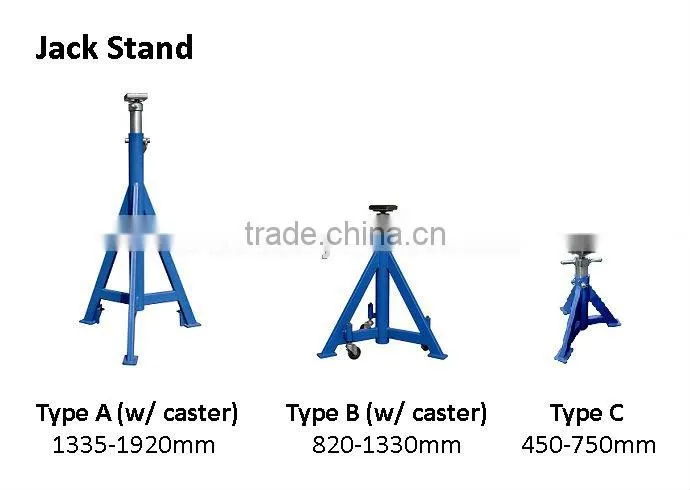

Operational voltage:	24V/DC	Optional accessories:	7.5TON Jack Stand (3 types)
Noise level:	70dB	Setup:	Indoor & outdoor
Floor load:	20-22kN (per column)	Floor pressure:	25N/mm²
Lifting time:	100s	Lifting height:	1700mm

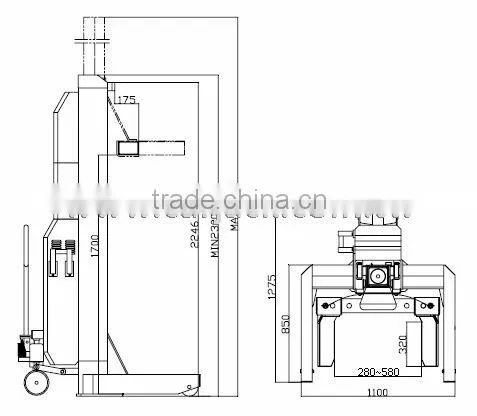

Weight:	580kgs (per column)	Column dimension:	2300(H) x 1100(W) x 1275(D)mm
