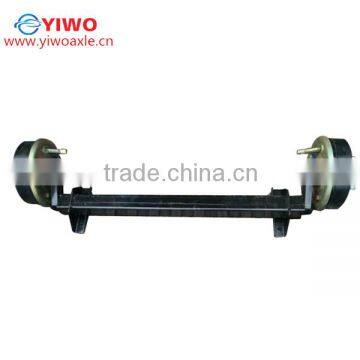

YIWO Rubber torsion axle
torsion drop axle trailer
A:Torsion Axle Series
YIWO Currently maufacturer 4 series half torsion Axle;

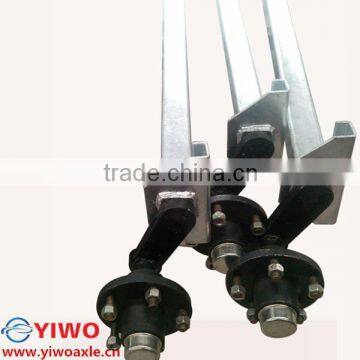

1. Half axle(stub axle)/Unbraked
Load capacity: 350 kg, 500 kg, 750 kg, 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500 kg.

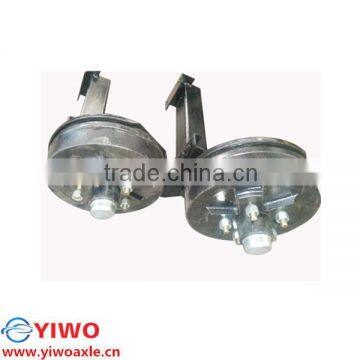

2. Half axle(stub axle) /Electric drum brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500kg
3. Half axle(stub axle) /Mechanical drum brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500kg
4. Half axle(stub axle) /Mechanical disc brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500kg
YIWO Currently maufacturer 4 series Solid torsion Axle;
1. Solid axle/ Unbraked
Load capacity: 350 kg, 500 kg, 750 kg, 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500
2. Solid axle/ Electric drum brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500
3. Solid Axle/Mechanical drum brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500kg
4. Solid Axle/Mechanical disc brake
Load capacity: 1000 kg, 1250 kg,
1500 kg,1800 kg, 2000 kg, 2200 kg, 2500kg

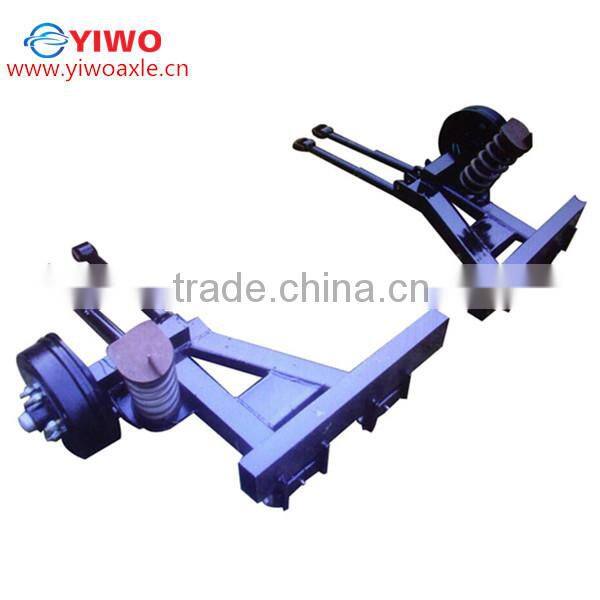

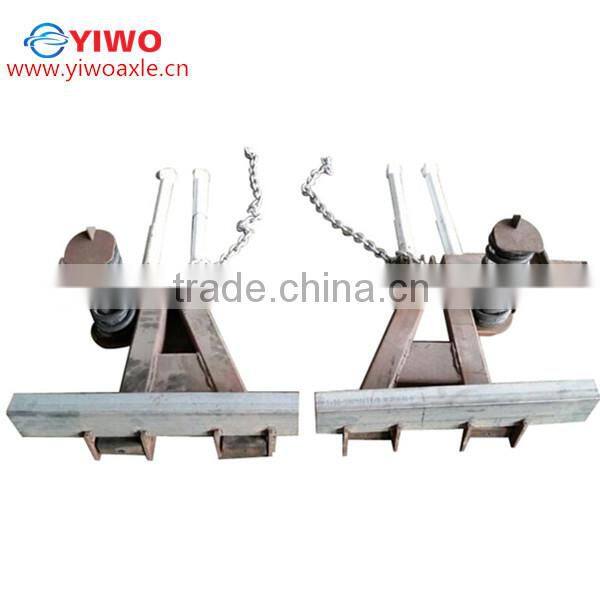

YIWO Currently maufacturer 2 series Independent Coil suspension axle;
B:Torsion Axle Parts introduce

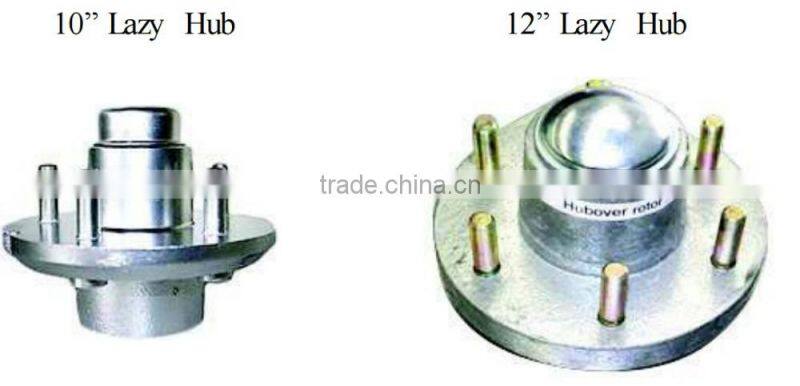

1. Unbraked axle Adopt Lazy hub
Lazy hub have Ford 5 studs pattern and Land cruiser 6 studs pattern

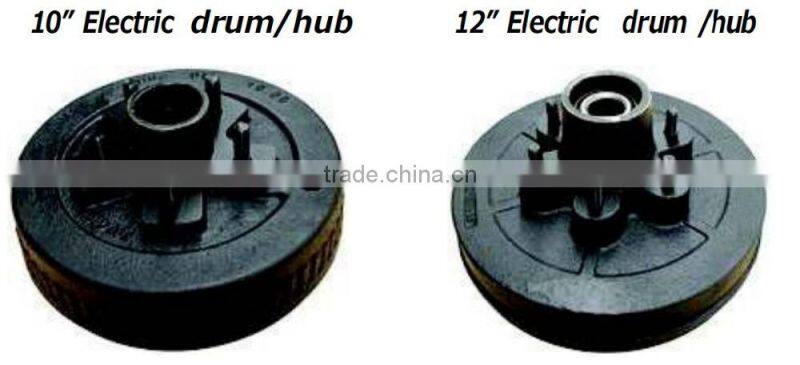

2. Braked Axle Adopt Electric hub
Electric hub have Ford 5 studs pattern and Land cruiser 6 studs pattern

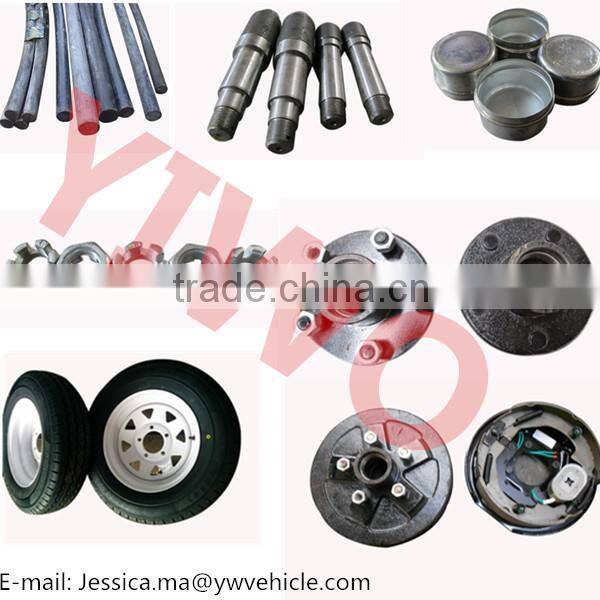

3. More parts:
C:Torsion Axle Order information
Please fill the details you need, we will give you our offer.
| Axle load capacity | KG |
| Axle beam Type | Straight beam or Half axle |
| Axle beam surface finish | Galvanize or Black Paint |

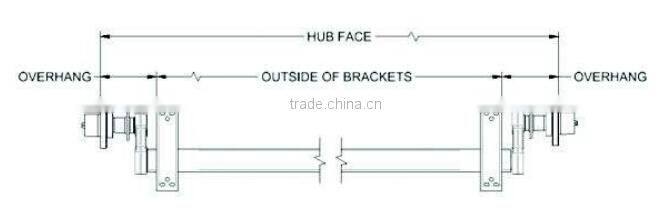

| Hub face to hub face | Customer advise mm |
| Outside to outside bracket | Customer advise mm |
| Brake Type | No brake or Electric brake |
| No brake-Lazy Hub type | Ford 5 studs pattern and Land cruiser 6 studs pattern |
| Electric brake- electric hub type | Ford 5 studs pattern and Land cruiser 6 studs pattern |
D:YIWO Torsion Axle Features
1. 4 rubber bar inside
2. Square Axle tube
3. Standard Trosion Angle:27 degree(Can custom)
4. The rubber bar will never out of the axle tube.

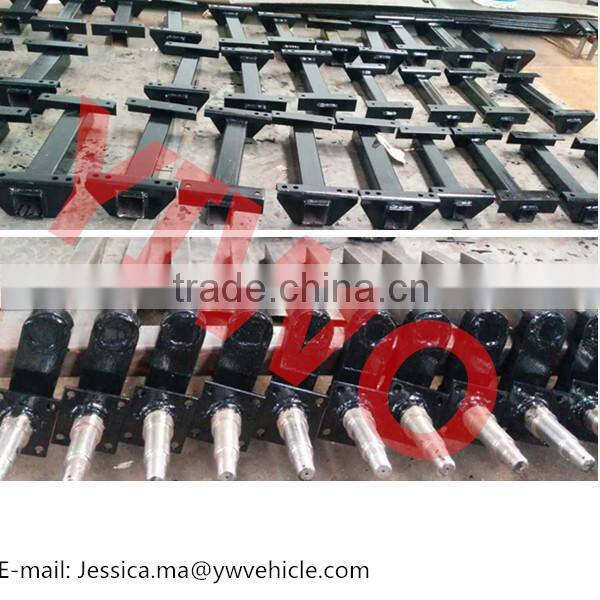

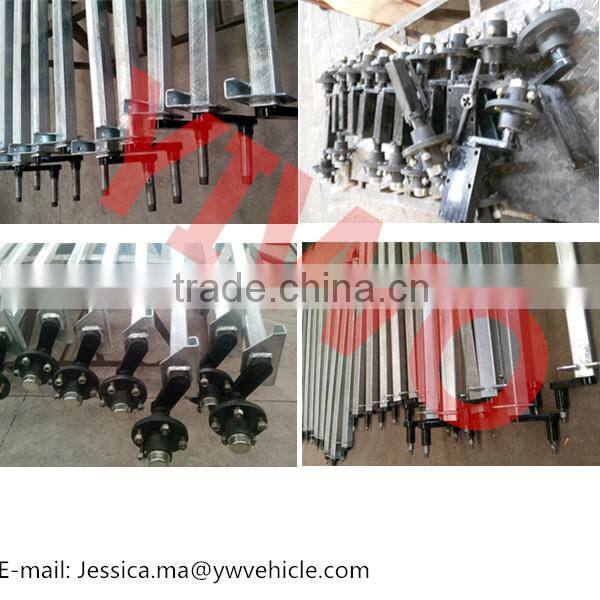

E:YIWO Rubber torsion axle Assemble Show
F:YIWO Rubber torsion axle Warranty Policy
All orders received by Shanghai YIWO are an indication that the customer had read, fully understands, and accepts all of the terms and conditions of this warranty policy.
This warranty policy is applicable only to rubber torsion axle.
(1) Warranty Coverage
Shanghai YIWO warrants their products to be free from defects in workmanship and material under normal use and service. The use of these products for other than their intended use or any alternations made to a product will render void all terms of this warranty.
The exclusive remedy offered under this warranty is repair or replacement of the defective item only. Shanghai YIWO shall determine and their discretion, whether repair or replacement is appropriate. Shanghai YIWO’S obligation under this warranty is limited to the repair or replacement of the defective part and is not liable for any incidental or consequential damage to property or persons.
On discovery of any defect in the Goods, the Customer must immediately notify the Company in writing of such defect. The Customer must not carry out any remedial work to the alleged defective Goods without obtaining the written consent of the Company to do so. Any avoidable consequential damage arising as a result of failure to seek advice from YIWO will render any warranty claim invalid and void.
(2) Warranty Duration
The warranty period of rubber torsion axles are effective from the date of original invoice and extends only to the original purchaser of the product only.
3 years : Torsion axle beams from structural defects
3 years: Torsion axle arms from structural defects
3 years: Torsion axle rubber cords(Never out of the beam)
Not covered: Wheel bearings, seals, spindles and brake pads.
(3) Warranty Exclusions This warranty does not extend to or cover defects caused by:
• Normal usage wear and tear
• Unreasonable operation and/or use
• Accidents
• Off-road use
• Failure to provide reasonable and/or necessary maintenance
• Improper installation or assembly performed by another party other than Shanghai YIWO. • Any alterations made to parts supplied
• Non standard production parts
• Improper wiring of the brakes to the trailers or tow vehicle
• The attachment of the axle assembly to the trailer
• Alignment
• Improper wheel nut torque
• The welding of supplemental mounting brackets or members to exiting axle beam
• Shanghai YIWO will not be responsible for additional costs incurred for replacement, removal or reinstallation of any parts supplied. This includes but is not limited to towing costs, storage costs, labor costs, travel costs, postage and freight costs, loss of income or any other cost or loss incurred. The liability of Shanghai YIWO is limited to the repair or replacement of the product purchased only.
(4) Warranty Service To obtain warranty service, the following information must be supplied by the purchaser:
• Proof of purchase
Full contact details of purchaser
• Where applicable, serial number, of product
• Detailed description of the defect
