Home > Manufacturing & Processing Machinery > Crane > Truck Crane > 25ton Mobile Truck Crane With Best Price

25ton Mobile Truck Crane With Best Price

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Rated Loading Capacity:

25000kg

Max. Lifting Load:

25000kg

Contact Supplier Request Quote Chat Now

Shandong Zot Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Rated Loading Capacity 25000kg

Max. Lifting Load 25000kg

Max. Lifting Height 47m

Span 6.15

Place of Origin Shandong, China

Brand Name ZOT

Model Number QL25

Certification ISO

Warranty 2years

After-sales Service Provided Overseas service center available

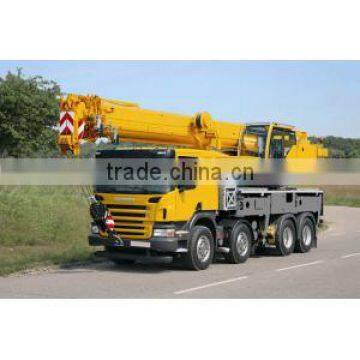

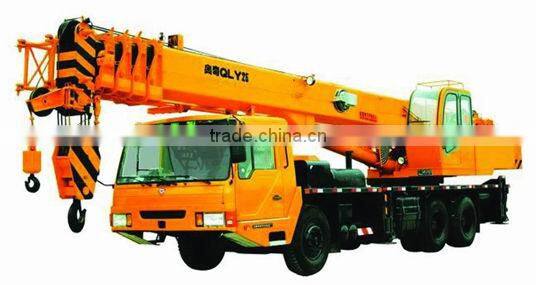

25 ton hydrualic truck mobile crane for sale

25 ton truck crane is hydraulic drive with full circle swinging telescopic booms. The stretch mode of the lifting boom is in sequence and synchronization, and the hoisting mechanisms are independent drive. The boom is made of high strength steel, HQ700, with main sectional plane of hexagon. The boom drive mechanism is in the inner arm to increase inner section dimensions and improve strength. Equipped with adjustable seat, PPC operation device and full automatic overload display unit, the operator's cab has an expansive field of view. Perfect and advanced safety device equipped in the crane can guarantee operation security. The lighting device is convenient for night operation. More selective equipment can be chosen by user, such as heating device, air conditioner, hydraulic pressure oil cooling system, etc.

QLY25 Hydraulic Truck Crane Parameter

ITEM	UNIT	DATA
Overall dimension
Overall length	mm	13125
Overall width	mm	2500
Overall height	mm	3550
Weight
Total weight in travel	kg	31424
Front axle load	kg	7474
Rear axle load	kg	23950
Engine
Engine model		WP10.270N
Engine rated power	Kw/(r/min)	199/1900
Engine rated torque	N.m/(r/min)	1100/1200-1600
Chassis
Max. travel speed	Km/h	74
Min. turning diameter	m	24
Min. ground clearance	mm	220
Approach angle	°	15.8
Departure angle	°	10
Max. grade ability	%	30
Fuel consumption for 100km	L	35
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.86
Max. lifting torque	KN.M	980
Base boom	m	10.4
Fully extended boom	m	39
Fully extended boom+ jib	m	47
Longitudinal outrigger span	m	5.41
Lateral outrigger span	m	6.15
Working speed
Boom luffing time	s	90
Boom full extension time	s	160
Max. swing speed	r/min	2.5
Max. speed of main. winch (single rope)	m/min	120
Max. speed of aux. winch (single rope)	m/min	≤120
