AZ3500 DUMP TRUCK MAIN TECHNICAL PARAMETER
ITEM |
UNIT |
DATA |
|
Overall dimension | |||
Overall length |
mm |
8730 |
|
Overall width |
mm |
3000 |
|
Overall height |
mm |
3540 |
|
Weight | |||
Total weight in travel |
kg |
50000 |
|
Vehicle weight |
kg |
18500 |
|
Pay load |
kg |
31500 |
|
Engine | |||
Engine model |
|
WD12.375 |
|
Engine rated power |
Kw/(r/min) |
276/2200 |
|
Engine rated torque |
N.m/(r/min) |
1500/1300~1500 |
|
Chassis | |||
Max. travel speed |
Km/h |
50 |
|
Min. turning diameter |
m |
≤20 |
|
Min. ground clearance |
mm |
320 |
|
Approach angle |
° |
31 |
|
Departure angle |
° |
45 |
|
Max. grade ability |
% |
51 |
|
Fuel tank capacity |
L |
380 |
|
Wheel base |
mm |
3710+1400 |
|
Front tread |
mm |
2458 |
|
Rear tread |
mm |
2258 |
|
Drive type |
6*4 |
||
Transmission speed ratio |
9 Forward speed,1 Reverse speed |
||
Tire size |
13.00-25 |
||
Steering system |
Mechanical steering ,hydraulic boosting |
||
Application |
Sand , Soil, Coal ,Ore etc. |
||
nudepacking and RORO shipping
oversales Engineers avilable

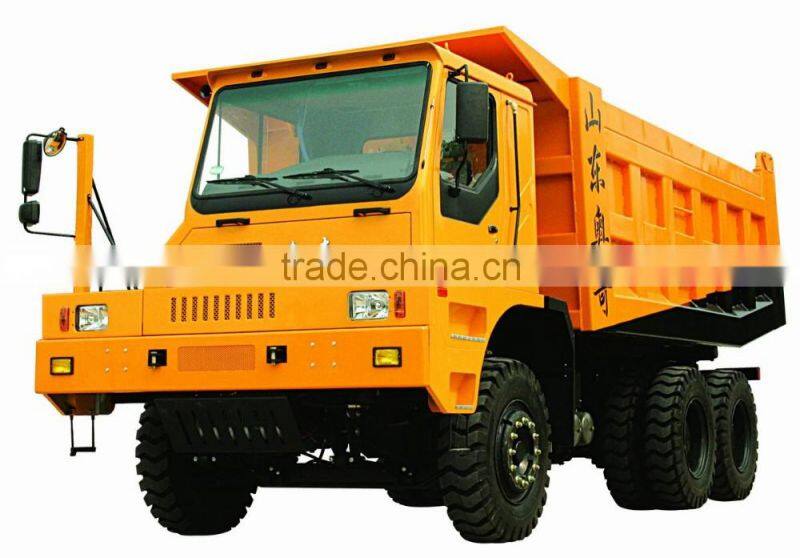

AZ3500 mining truck adopted the WEICHAI WD12.375 engine ,which has strong power and low consumption. The driver seat with air spring suspension makes driving more comfortable and weariness , this dump truck especially designed for mine with strength spring steel plate ,constructional tires and T-type air cleaner which is used for the desert area. Choosing the warm-up system under the trunk could increase the rate of outpouring in winter. The cabin adopted the offset cab which installs the A/C and warm air device and the seat may be adjusting from front to rear or from rear to front and self-height. The machine adopted the 9JS180 gear box by shanxi FAST manufactured.
Photos:
