Specifications

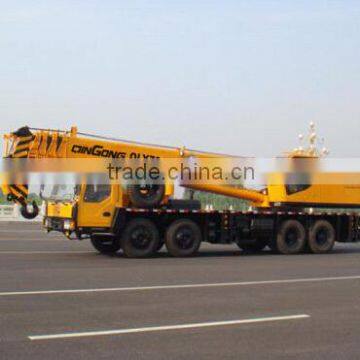

1. 70T hydraulic truck crane2. competitive price
3. good after-sale service
4. free spare parts
20T hydraulic mobile truck crane
1.Shandong ZOT Machinery Co.,LTD is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
2. The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of T series loader, G series loader, Backhoe loader, Road roller, Motor grader, Excavator, Paver, Bulldozer, Forklift, Truck crane, Rim, Valve, etc.
3. We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.
ITEM |
UNIT |
DATA |
Overall dimension | ||
Overall length |
mm |
14100 |
Overall width |
mm |
2750 |
Overall height |
mm |
3750 |
Weight | ||
Total weight in travel |
kg |
45000 |
Front axle load |
kg |
19000 |
Rear axle load |
kg |
26000 |
Engine | ||
Engine model |
|
L375 30 |
Engine rated power |
Kw/(r/min) |
276/2200 |
Engine rated torque |
N.m/(r/min) |
1480/1400 |
Chassis | ||
Max. travel speed |
Km/h |
75 |
Min. turning diameter |
m |
24 |
Min. ground clearance |
mm |
280 |
Approach angle |
° |
16 |
Departure angle |
° |
11 |
Max. grade ability |
% |
26 |
Fuel consumption for 100km |
L |
46 |
Main performance | ||
Max. rated total lifting capacity |
t |
70 |
Min. rated working radius |
mm |
3000 |
Turning radius at turntable tail |
m |
4.02 |
Max. lifting torque |
KN.M |
2352 |
Base boom |
m |
11.6 |
Fully extended boom |
m |
44 |
Fully extended boom+ jib |
m |
60 |
Longitudinal outrigger span |
m |
6.0 |
Lateral outrigger span |
m |
7.6 |
Working speed | ||
Boom luffing time |
s |
57 |
Boom full extension time |
s |
107 |
Max. swing speed |
r/min |
2.0 |
Max. speed of main. winch (single rope) |
m/min |
130 |
Max. speed of aux. winch (single rope) |
m/min |
≤130 |
There is a long period as 18 months of warranty for Beston's clients, and fully technical support by engineers
