Chinese Wheel Loader 5T

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

ZOT

Model Number:

956

Shandong Zot Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ZOT

Model Number 956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7920"*3050*3400mm

Rated Load 17100KG

Certification CE GOST

Warranty 1 year

Specifications

Wheel Loader 6t:
1)CUMMINS engine;
2)ZF transmission;
3)Rated power:175kw;
4)Rated load: 6t; Operating weight:18.2t;

5t wheel loader with CUMMINS engine

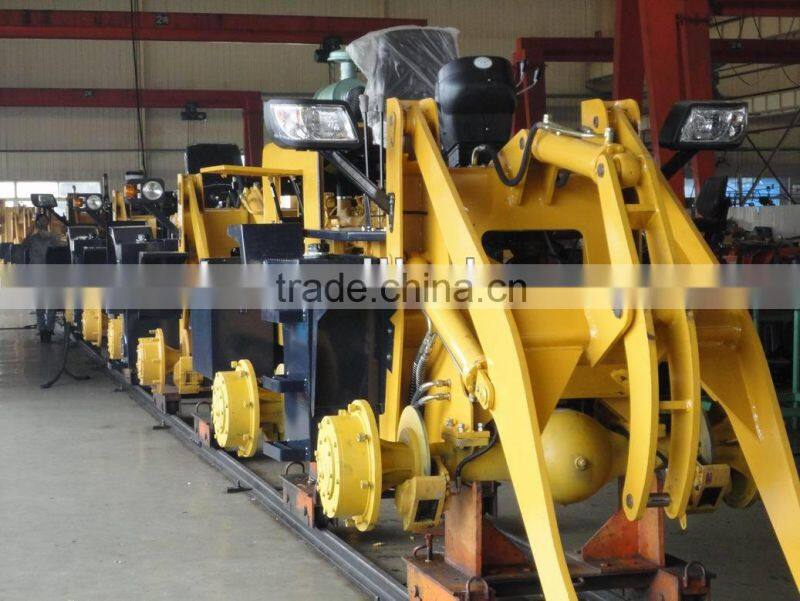

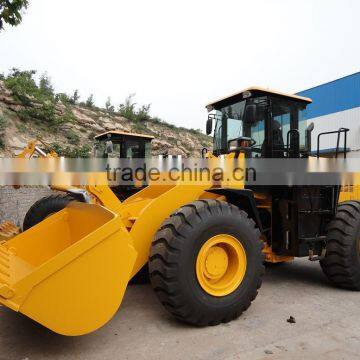

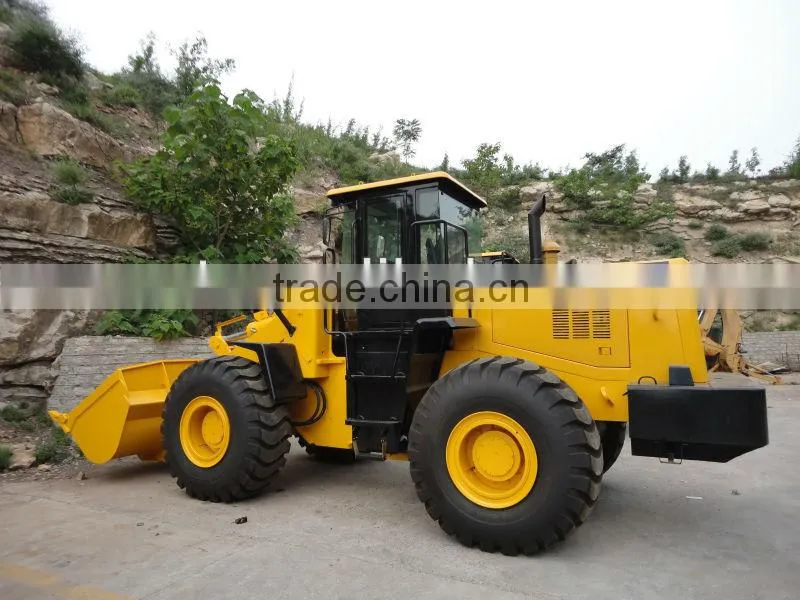

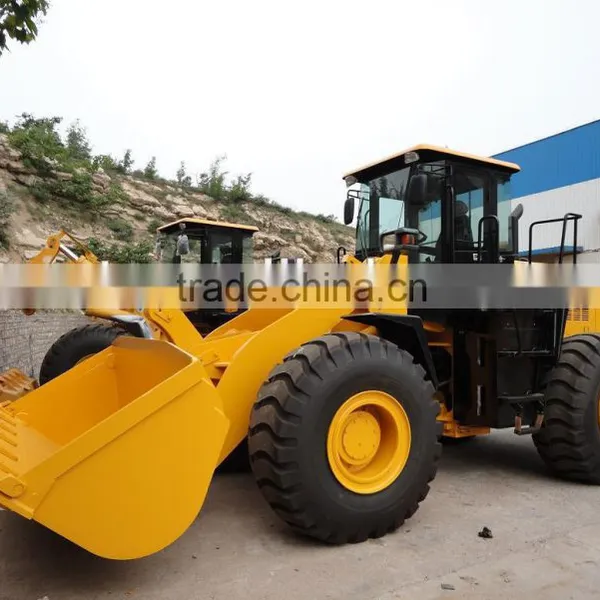

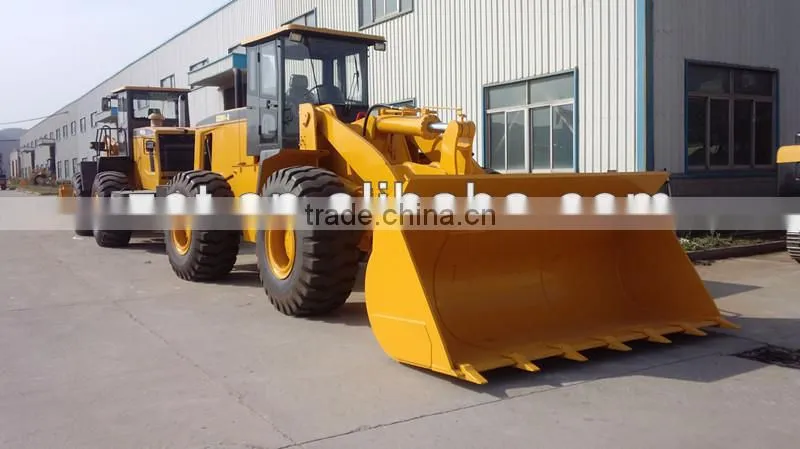

PHOTOS:

SPECIFICATIONS:

rated load	5000kg
overall weight	17100kg
rated bucket capacity	3m3
maximum tractive force	152KN
maximum breakout force	≥170KN
maximum grade ability	30°C
maximum dump height	3150mm
maximum dump reach	1250mm
overall dimension (L×W×H)	7920×3050×3400mm
minimum turning radius	6640mm
model	WD615G.220
type	lnline water cooling dry cylinder injection
No. of cylinder-bore/stroke	6-126×130mm
rated power	160kw--2200r/min
maximum torque	860N.m
min fuel-consume ratio	≤215g/kw.h
torque converter	HangchiWG180 (ZF technology)
gearbox mode	Power shift normally engaged straight gear
gear shift	4 forward shift 3reverse shift
maximum speed	38km/h
main reducing spiral	bevel gear grade 1reduction
decelerating mode	planetary reduction,grade 1
wheel base (mm)	3200mm
wheel tread	2250mm
minimum ground clearance	450mm
system working pressure	18MPa
boom lifting time	5.95±0.2s
total time	10.95±0.5s
fuel tank capacity	300L
function of leveling automatically	yes
service brake	air over hydraulic disc brake on 4 wheels
parking brake	manual parking brake
type specification	23.5-25
front tyre pressure	0.4Mpa
rear tyre pressure	0.35Mpa
