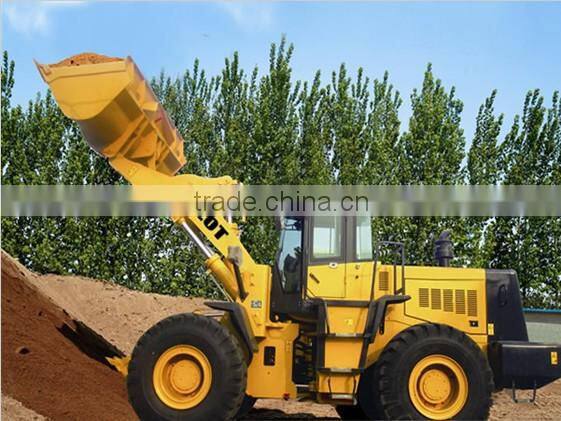

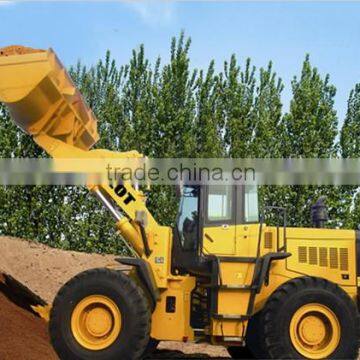

Wheel Loader
Under the working conditions of loading marble, the fuel consumption is reduced by 8.78%, and overall operating efficiency gains by 11.47%, thus an annual fuel consumption saving will be more than 39,500 RMB.
·Super traction power
Improve the allocating torque and engine, the power of inserting into material is more than 16.5 ton,the whole machine is equipped with high traction power.
·Perfect bucketing and grubbing capabilit and stability
Equipped with turning cylinder,the breakout force reach 17.5 ton.
Equipped with lifting cylinder, the lifting force at ground reach 15.4 ton.
Long shaft space, equipperd more , increase the machine’s stability. Overturning loading capability exceed 12.5 ton.
·Reliable structure
High rigidity structure can be competent for more complicated working condition , the frame experienced high intensity test for 200,000 times can still work reliably.
Item |
Specifications |
Overall working weight |
17250kg |
Rated bucket capacity |
2.7m³ |
Rated load |
5.0t |
Max. traction force |
≥160kN |
Max. breakout force |
≥180kN |
Max. grade ability |
30° |
Max. discharging height |
3180mm |
Dumping distance |
1090mm |
Overall dimension (L×W×H) |
8040×3060×3382mm |
Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
