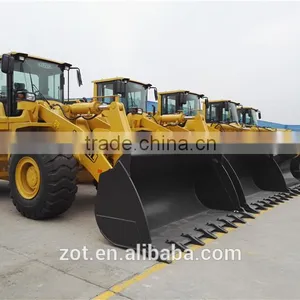

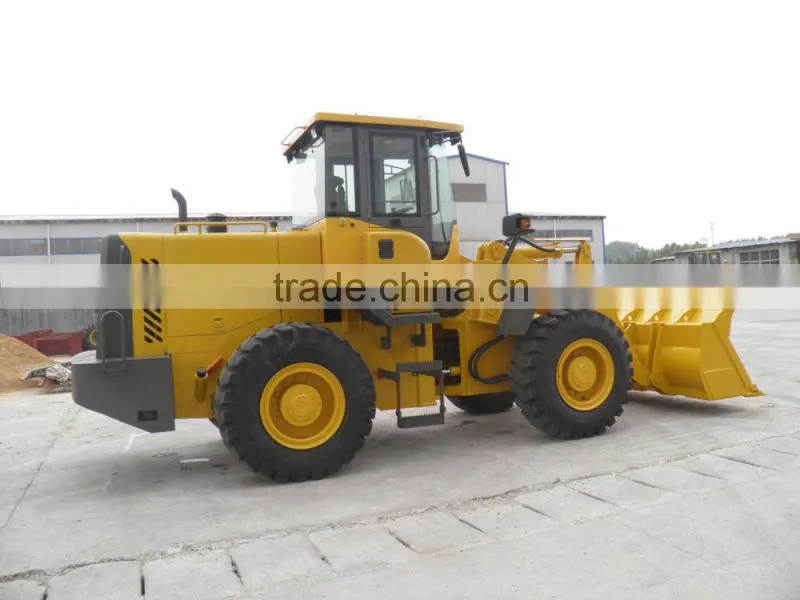

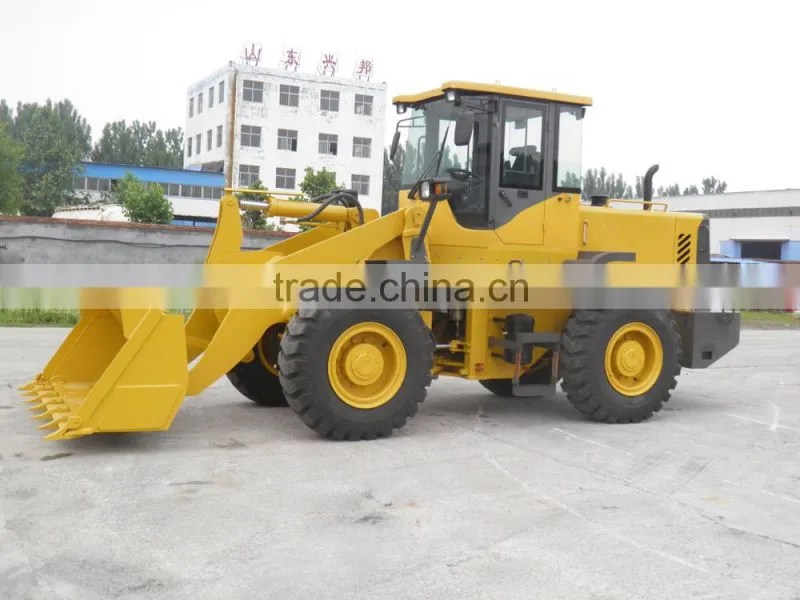

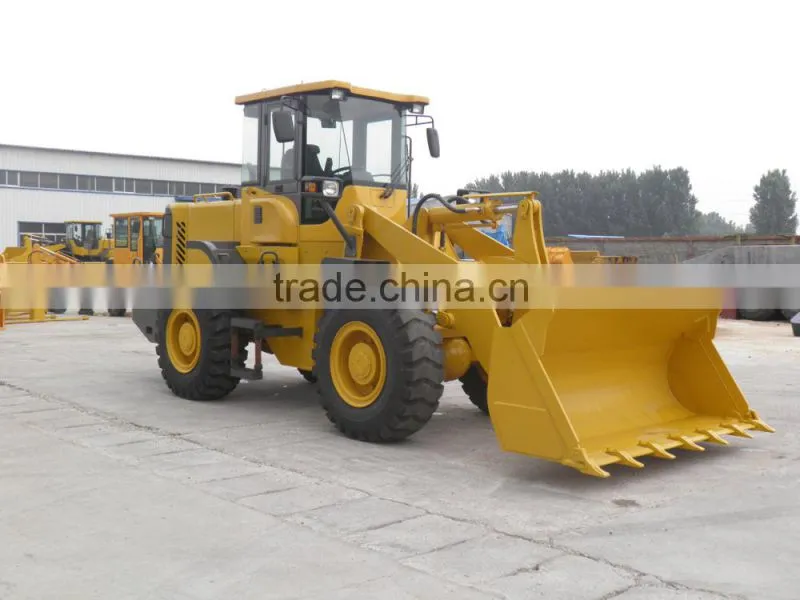

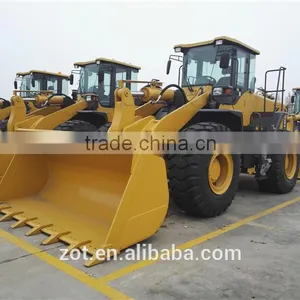

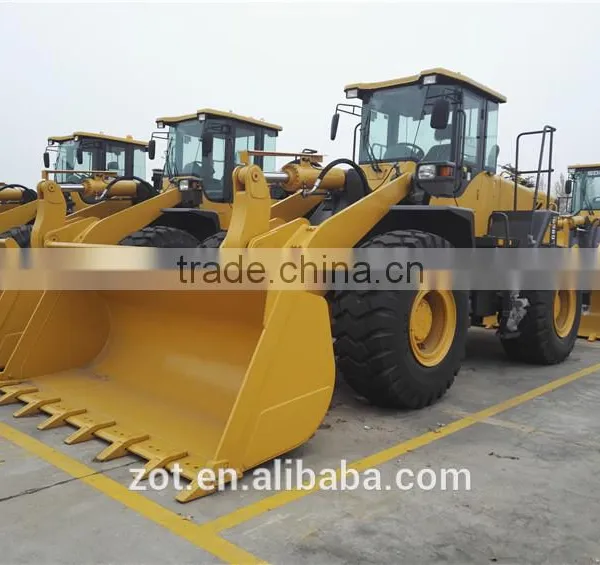

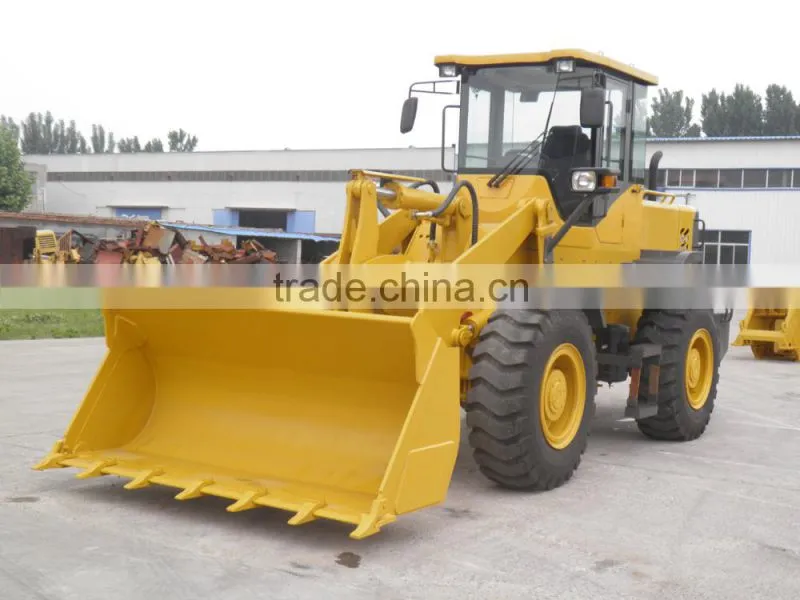

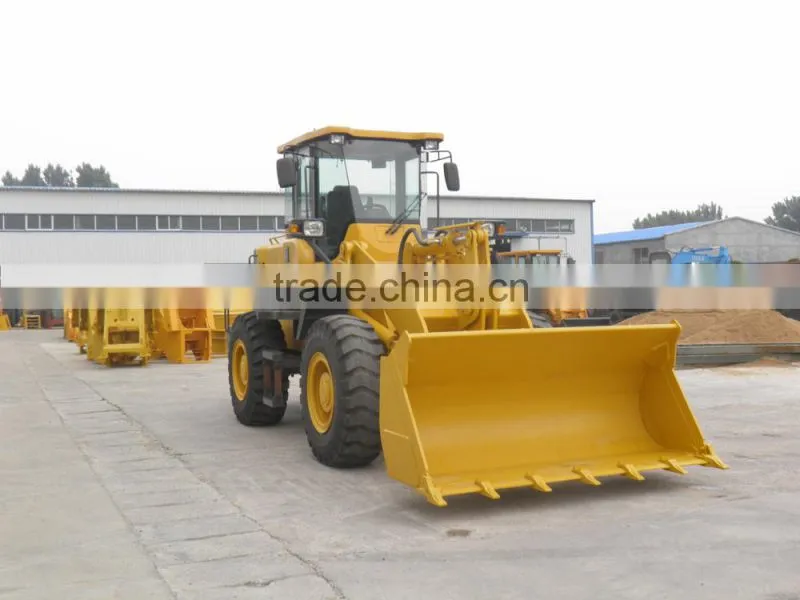

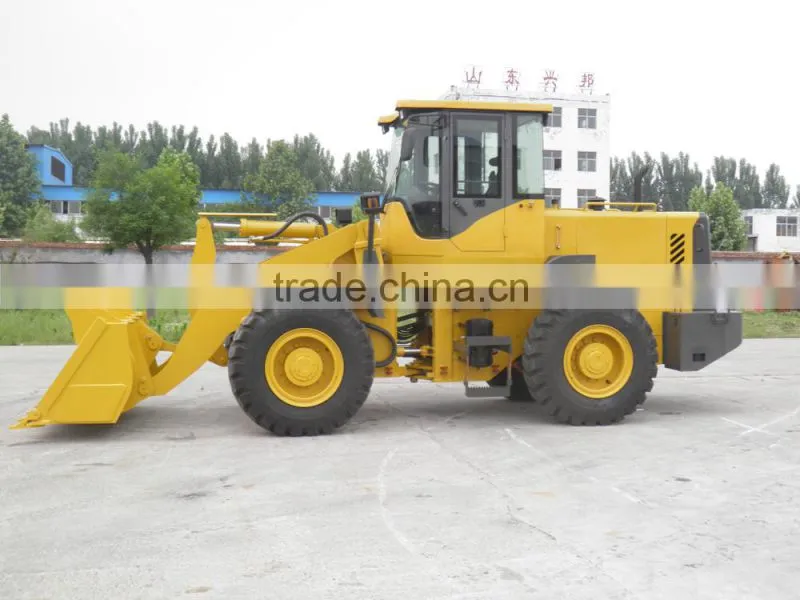

Help CenterSDLG 2016 New Model LG936L Wheel Loader for Exporting With Deutz Engine
Related Products
-
China Brand New 3ton Wheel Loader SDLG LG936L Only 25800usd per Unit DEUTZ EngineUS$ 29,800 - 42,800MOQ: 1 Unit -
3ton Wheel Loader SDLG LG936L Only 25800usd per Unit DEUTZ EngineUS$ 29,800 - 42,800MOQ: 1 Unit
-
Brand New SDLG 3 Ton Wheel Loader LG936L Only 27800usd per UnitUS$ 29,800 - 42,800MOQ: 1 Unit
-
China Made SDLG 3 Ton Wheel Loader LG936L Only 27800usd per UnitUS$ 29,800 - 42,800MOQ: 1 Unit
-
China Brand New 1.6ton CE916 Mini Wheel Loader With E3 Engine Pilot Contro and CE for EurozonesUS$ 12,800 - 24,500MOQ: 1 Unit

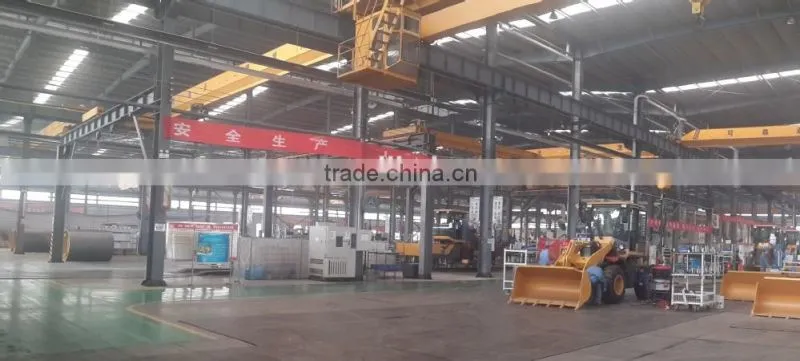

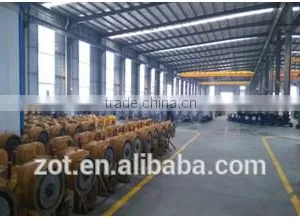

Shandong ZOT Machinery Co.,LTD. is a member of Lingong group , which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.

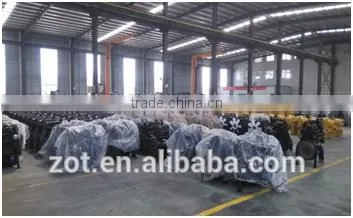

| 1.it's eqipped with yuchai turobocharged engine meeting the requirement of china II emission standard,with strong power and realiability,Weichai Deutz engine is Optional. | |||
| 2.Load-sensing full hydraulic steering system is used,with light and quick steering and realiable engeny-saving properties,mechanically-operated working device hydraulic system is used,with high performance reliability and is easy to operate,it is equipped with hydraulic element of famous brand and high realiability. | |||
| 3.It's applied 5T planetary transmission,with two forward and one reverse gear shifts position,and features easy operation and long service life,the single-stage,four element twin-turbine hydraulic torque converter configured offers large torque ratio and high transmission efficiency,the strengthened drive axle has large bearing capacity and high-reliability. | |||

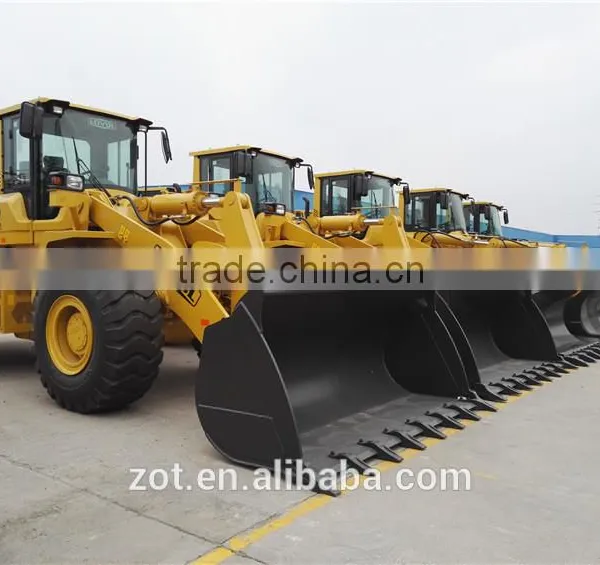

| 4.Bucekt is made of protruding type cutting board.The bottom antifriction plate is thickened,with little cutting resistance,high coefficient of fullness and reliable and high-efficient. | |||
| 5.Electrical apparatus elements of high-end and mature system of Lingong which makes it stable and realiable. | |||

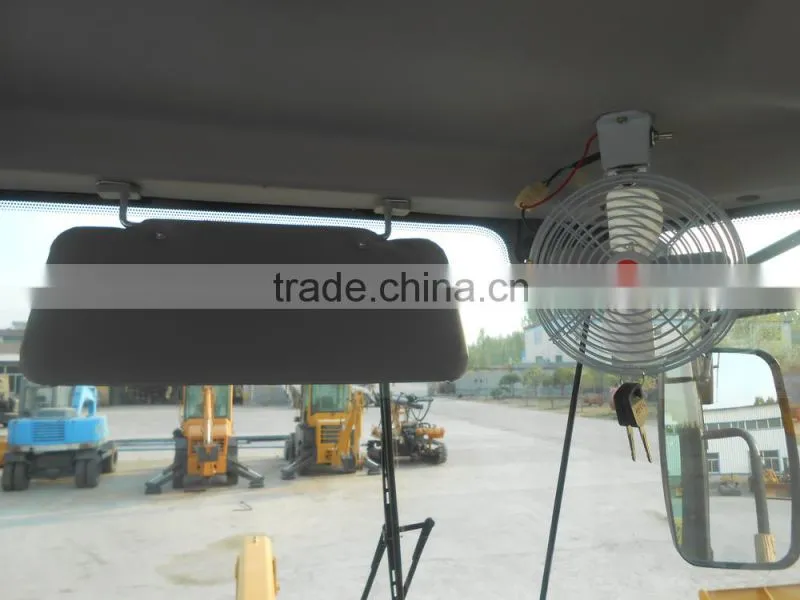

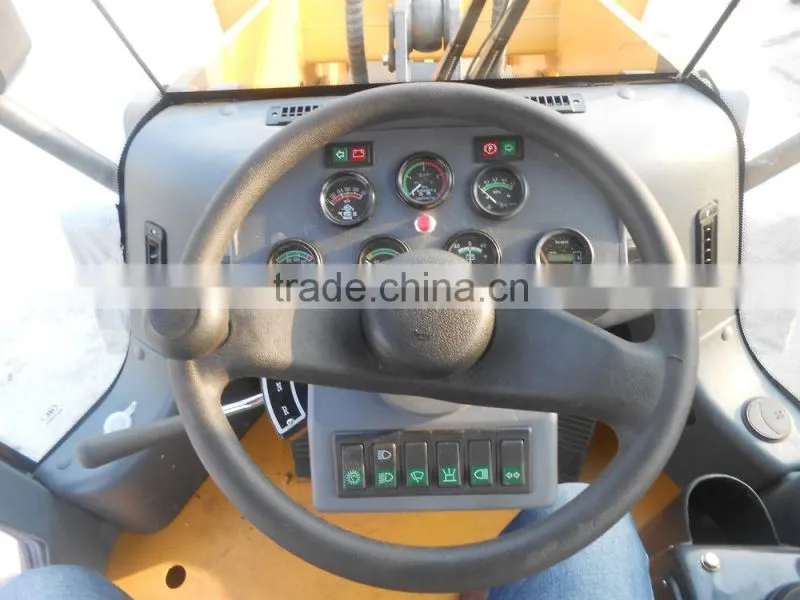

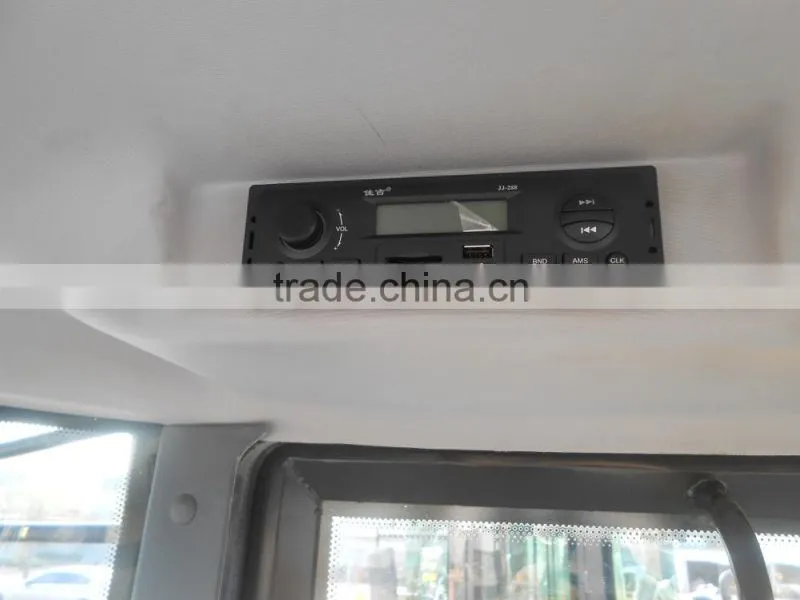

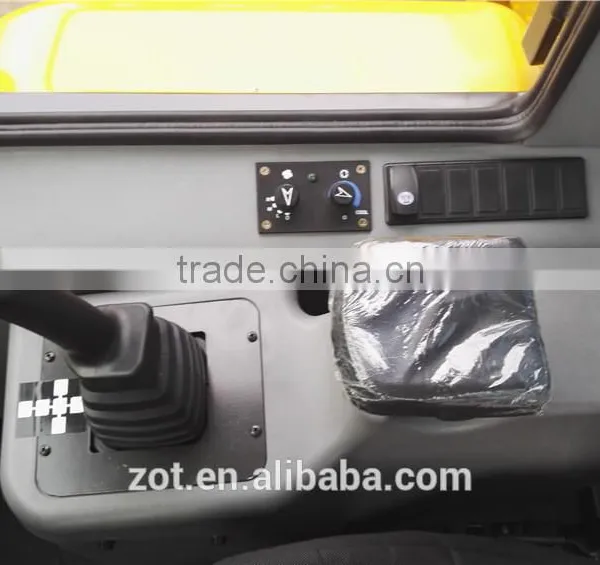

| 6.New steel structure cab is adopted,which ensures wide vision,a large operation space,good sealing performance,the AC can be installed optionally,which ensures good comfort. | |||
| 7.It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests,with strong bearing capactity,reasonable entire-machine load distribution and good stablity. |
Item |
Specification |
Item |
Specification |
|
Transmission system |
||
Overall working weight |
10200kg |
Torque converter type |
Single stage, three element |
Rated capacity |
1.8cbm |
Torque ratio |
3.25 |
Rated load |
3000KG |
Transmission type |
Planetary power shift |
Max tractive force |
96KN |
Gear shift |
2 forward ,1 reverse |
Max breakout force |
96KN |
Max speed |
40km/h |
Max grade ability |
30° |
Front and rear axles |
|
Max dump height |
3.1m |
Main transmission type |
Spiral gear, first stage decelerate |
Max dump distance |
1.05m |
Final decelerate type |
First stage, planetary gear decelerate |
Overall dimensions |
7100*2510*3087mm |
Tire |
|
Engine(Weichai Deutz) |
Type specification |
17.5-25 |
|
Model |
WP6G125E23 |
Front tire pressure |
0.333~0.353MPa |
Type |
Inline ,water cooling ,dry cylinder, direct injection |
Rear tire pressure |
0.275~0.294MPa |
Number of cylinder-bore/stroke |
6-108*125mm |
Steering system |
|
Max torque |
450N.m |
Type |
Articulated load-sensing hydraulic steering system |
Rated power |
92KW |
Steering angle |
R/L36° |
Rated speed |
2200r/min |
Min turning radios |
Outside of bucket5.882m outside of rear wheel 5.349m |
Min oil consumption |
≤227g/kw.h |
Brake system |
|
Hydraulic system |
Service brake |
Air over hydraulic disc brake on 4 wheels |
|
System working pressure |
16MPa |
Parking brake |
Manual parking brake |
Boom lifting time |
≤5.3s |
Fill capacity |
|
Total time |
≤9.2s |
Fuel |
140L |
Control type |
Priority Pilot Control |
Hydraulic oil |
130L |
if you want to get mroe inforamtion,pls connect with me as follow ways:
WECHAT:C880099
MOBILE:0086-15662660925
