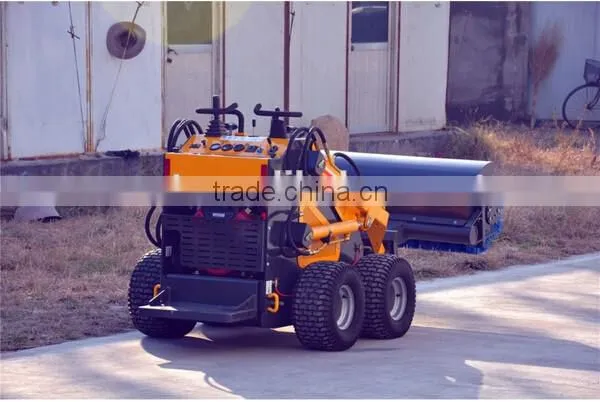

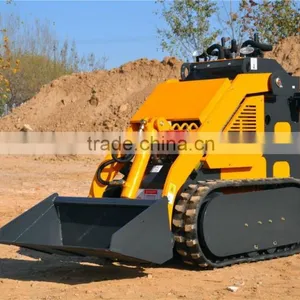

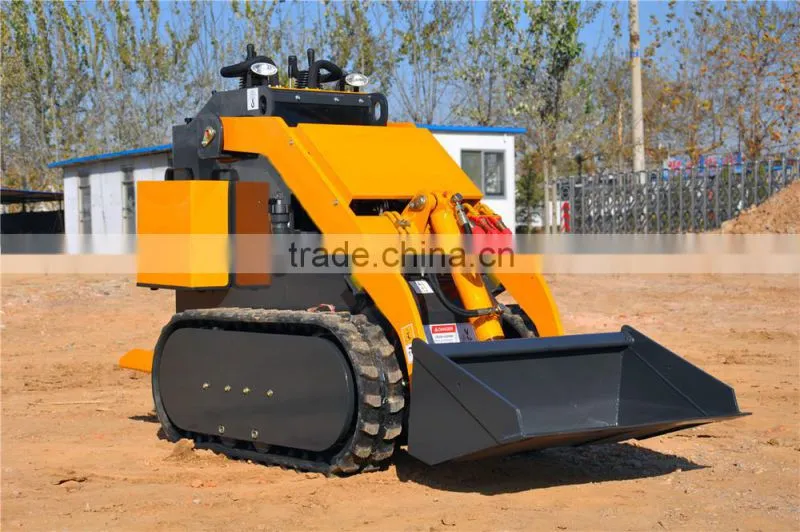

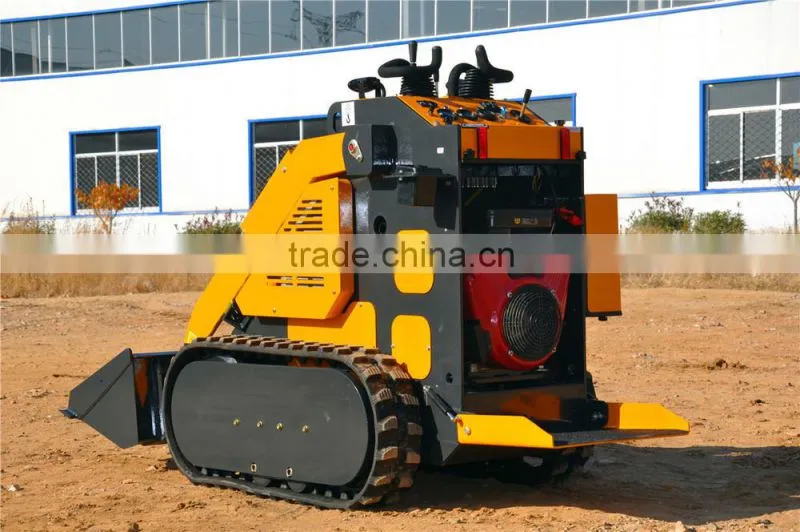

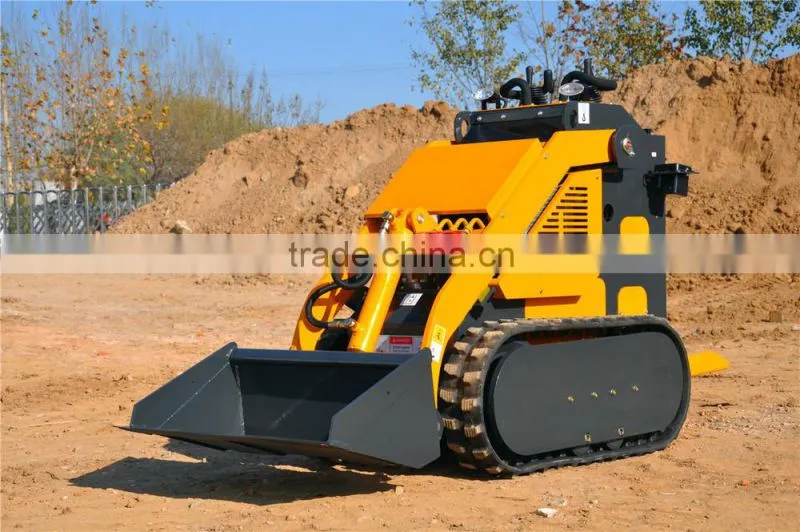

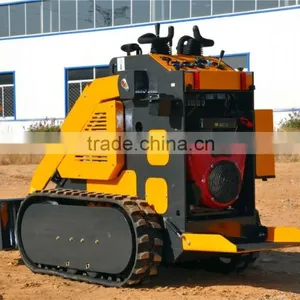

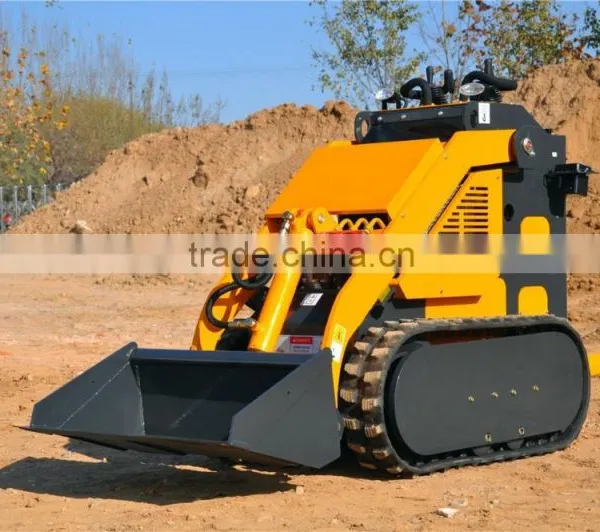

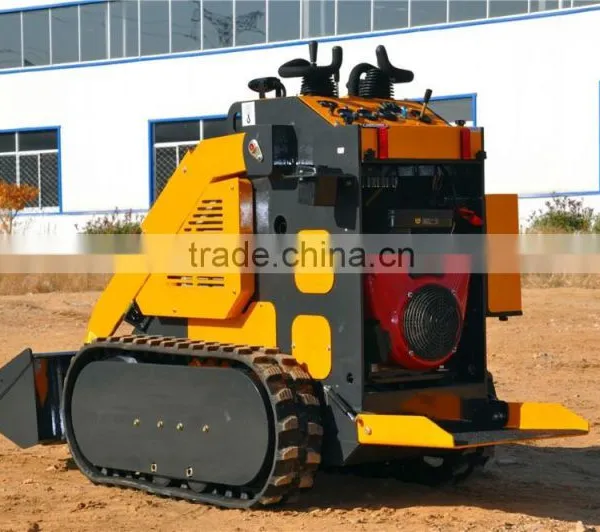

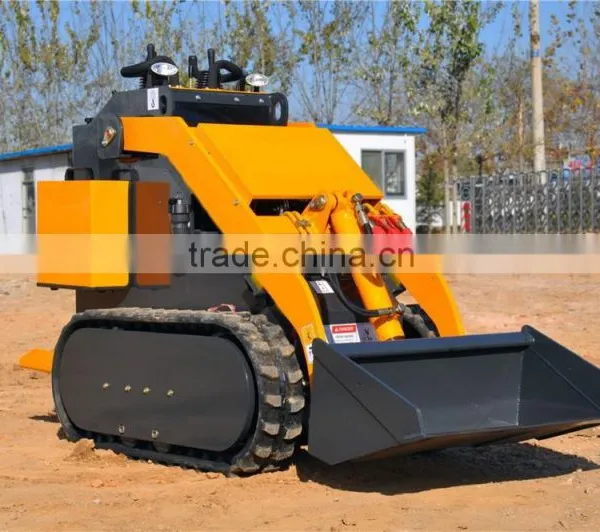

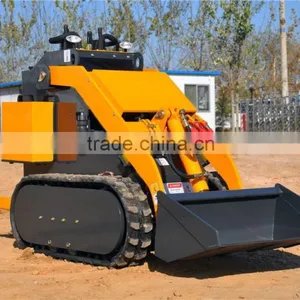

Help CenterChian Famous Brand Mini Skid Steer Loader Crawler Type TS280 With Briggs&Stratton Engine From USA
Related Products
-
Hot Sale: China Skid Steer Loader for Sale JC70 Deutz Diesel Engine Imported Hydraulic SystemUS$ 30,200 - 30,200MOQ: 1 Unit -
ZOT Brand Mini Skid Steer Loader TS380 With Briggs&Stratton Engine From USANegotiableMOQ: 1 Set
-
China Best Price 700kg Skid Steer Loader With AttachmentsUS$ 16000.00 - 16000.00MOQ: 1 Unit
-
2014 Hot Sale! New JC45 Skid Steer Loader With Deutz Engine,CE for SaleUS$ 15,000 - 18,000MOQ: 1 Unit
-
2014 Hot Sale! New 45HP Skid Steer Loader With Deutz Engine,CE for SaleUS$ 15,000 - 18,000MOQ: 1 Unit

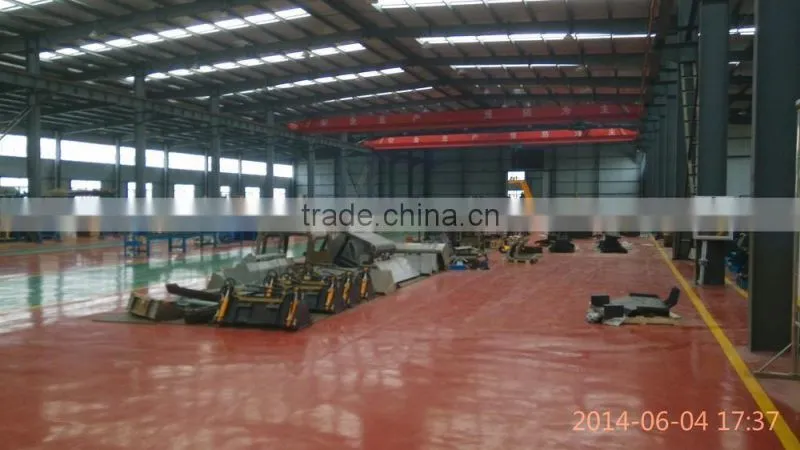

Shandong ZOT Machinery Co.,LTD. is a member of Lingong group , which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.
Item |
Data |
||||
Max Working Height (A) |
2143mm |
||||
Max Pin Height (B) |
1884mm |
||||
Max Dump Height (C) |
1488mm |
||||
Dump Distance at highest point (D) |
348mm |
||||
Bucket dump angle |
30degree |
||||
Bucket collectiong angle |
25degree |
||||
Departure angle |
11degree |
||||
Total Height (H) |
1233mm |
||||
Ground Clearance (F) |
118mm |
||||
Wheelbase (G) |
3636mm |
||||
Length without bucket (J) |
1752mm |
||||
Total Width (W) |
1160mm |
||||
Bucket Width (K) |
1150mm |
||||
Total Length (with bucket) (L) |
2206mm |
||||
Turning Radius |
1307mm |
||||
Engine |
Rated Power |
17.1Kw (23HP) |
|||
Rated Speed |
3600 rpm |
||||
Noise |
<=95Db |
||||
Hydraulic system |
Hydraulic Pressure |
17Mpa |
|||
Cycle time |
Raise |
Dump |
Lower |
||
4.27s |
1.34s |
3.31s |
|||
Load capacity |
200kg |
||||
Bucket Capacity |
0.15cbm |
||||
Max Lifting Force |
375kg |
||||
Speed |
0-5.5km/h |
||||
Total Weight |
890kg |
||||
Tyre model |
18*6.5-8 |
||||
one pcs packed in one wooden case.
