bus support axle front axle manufacturer bus front axle
bus axle
We have capacity to design axle and axle parts. Welcome to customize .
The front axle apply to all types of bus, truck, and are optional with ABS, disc brake and air suspension

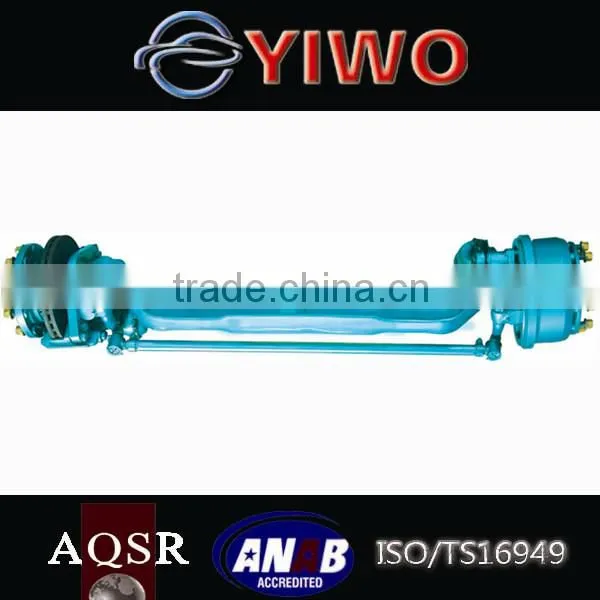

Name:4 Ton front axle
Main technical parameters
Specifications:4T
Payload (KG):4000
Max.steering angle of front inner wheel:48°
Self-weight (KG):380
Track (mm):1914
Leaf spring center distance (mm):830-850
Kingpin centre (mm):1723
Gap of front axle (mm):100
Diameter of hub bolt distributed cicular (mm):Φ285.75/Φ335
Brake specification:Φ400*100
Kingpin inclination angle (mm):6°
camber angle:1°
Toeing-in (mm):0-2
| 4 Ton front axle | |
| Specifications | 4T |
| Payload (KG) | 4000 |
| Max.steering angle of front inner wheel | 48° |
| Self-weight (KG) | 380 |
| Track (mm) | 1914 |
| Leaf spring center distance (mm) | 830-850 |
| Kingpin centre (mm) | 1723 |
| Gap of front axle (mm) | 100 |
| Diameter of hub bolt distributed cicular (mm) | Φ285.75/Φ335 |
| Brake specification | Φ400*100 |
| Kingpin inclination angle (mm) | 6° |
| camber angle | 1° |
| Toeing-in (mm) | 0-2 |
| The front axle apply to all types of bus, truck, and are optional with ABS, disc brake and air suspension | |
About Us
Shanghai YIWO Part&Equipment Co.,Ltd, engages in manufacturing Truck axles & Trailer axles & Tractor axles and axle parts since 1986 years, having achieved ISO/TS16949 Accreditation in 2002.
Now Shanghai YIWO is producing over 200 sorts axles, which are well known home and abroad.
Main products includes:Lightweight truck axle & Midium truck axle & heavy duty truck axle & off road wide body truck axle & BPW trailer axle & Fuwa trailer axle & big horsepower tractor axle & axle parts & Air Suspension & Single Point Suspension (Bogie / Boogie)& Suspension Parts and so on .
All the Above axle including front axle & rear drive axle & rear non drive axle & Suport axle & steering axle and so on.
We also Produce off road mining dump haul truck, including 40 ton, 60 ton ,70 ton mining haul truck.Now our mining haul truck occupy 50% China Market.
1. Shanghai YIWO is Supplier of China best brand truck, Like FAW,FOTON,SINOTTUK,Beiben,JAC and so on.
2. Shanghai YIWO OEM factory All kinds of Truck axles & Trailer axles & Tractor axles and axle parts
3. Any requests or drawings are welcome.
Sincerely do expect to enter into business relations with you soon.
