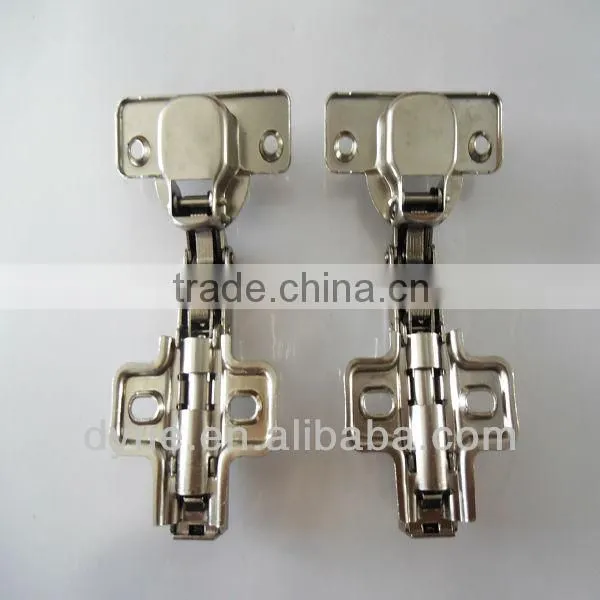

Help CenterHydraulic Hot Sale Cabinet Hardware Hinges
Related Products
Specifications
1.cabinet hinge2.high quality hydraulic system
3.over 50000 open-colse SGS test
4.slide-on system concealed hinge
Soft closing,clip on, furniture joint connector
1.Opening angle:90-105°
2.Depth of hinge cup:11.3mm
3.Cup diameter:35mm
4.Hole pitch: 45mm,48mm,52mm
5.Material:Steel cup nickel plated
6.Cup fixed: Wood screw 3.5*16mm;Dowels 8mm/10mm
7.Crank height:inset(c=17);half overlay(c=8);full overlay(c=0)
8.Hinge arm material thickness:1.0mm,1.2mm
9.Hinge arm screw: Clip on
10.plate height:H=(2,4)mm
11.Plate material thickness:1.0mm,1.2mm
12.Dimension of door:3-7mm
13.Range for door thickness:16-18mm
14. Certification:ISO9001
15.Test:SGS
16.Usage:door
17.Finish: Nickel plated

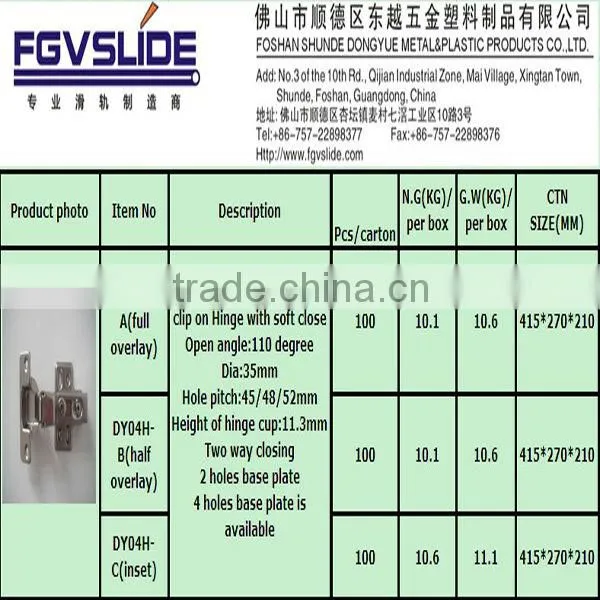

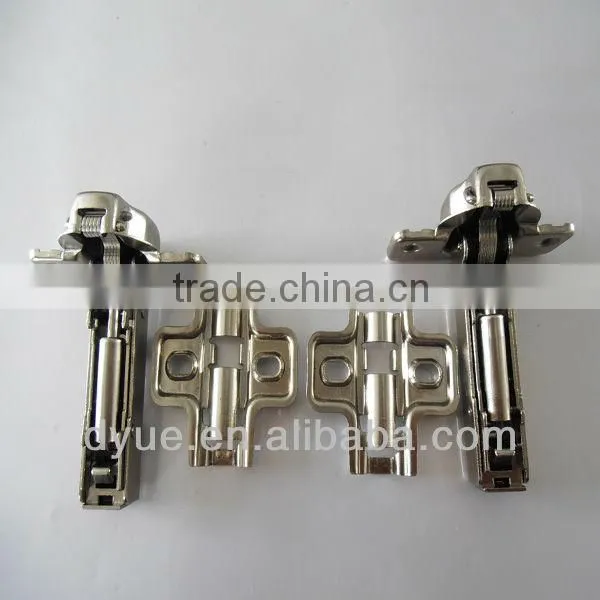

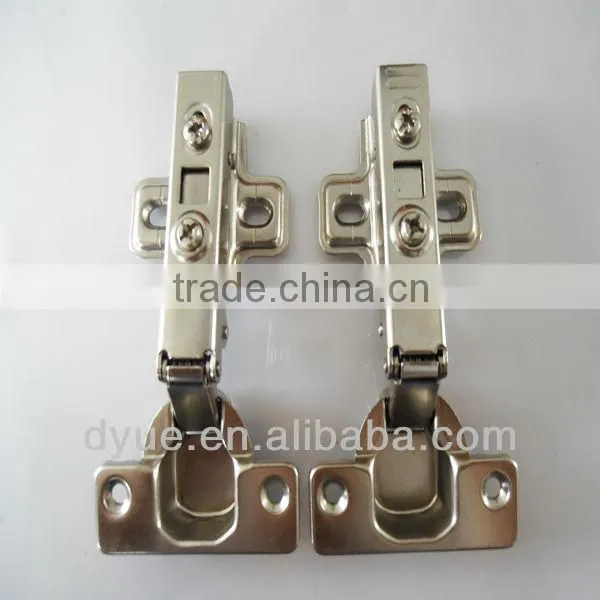

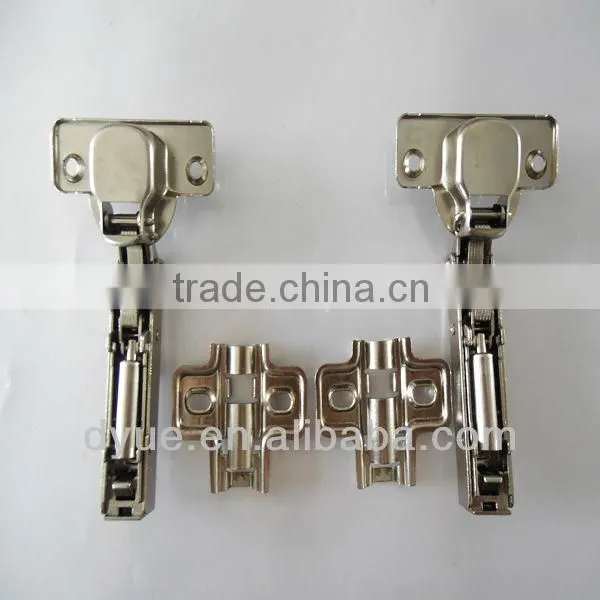

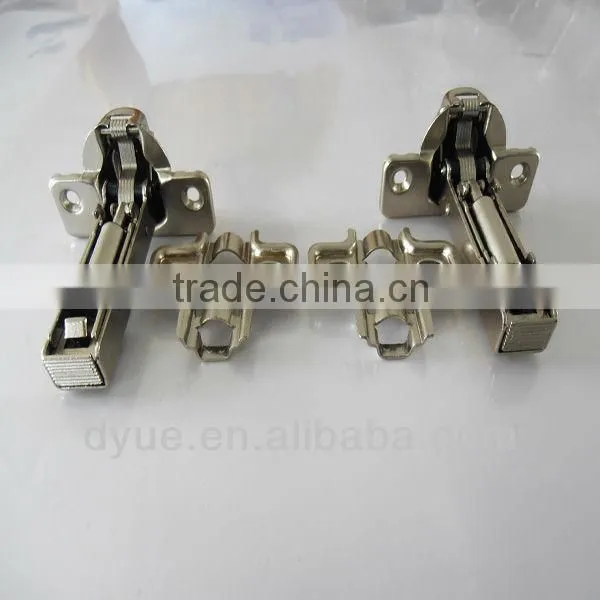

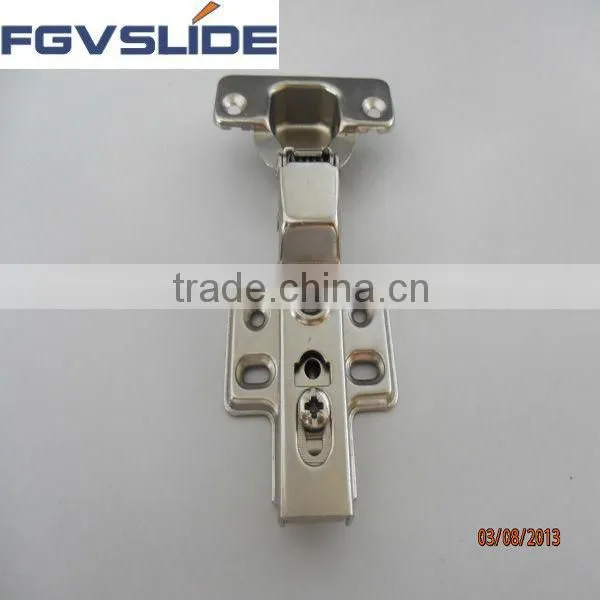

Product show& Packing detail
Factory Profile:
If you have any interest in our products,please contact me.Our sales team is responsible and active.We can provide you fast and reliable response,send your inquiry now,and we will reply you as soon as possible.
Send Inquiry to This Supplier
