front steering axle

We have capacity to design axle and axle parts. Welcome to customize .

The front axle apply to all types of bus, truck, and  are optional with ABS, disc brake and air suspension

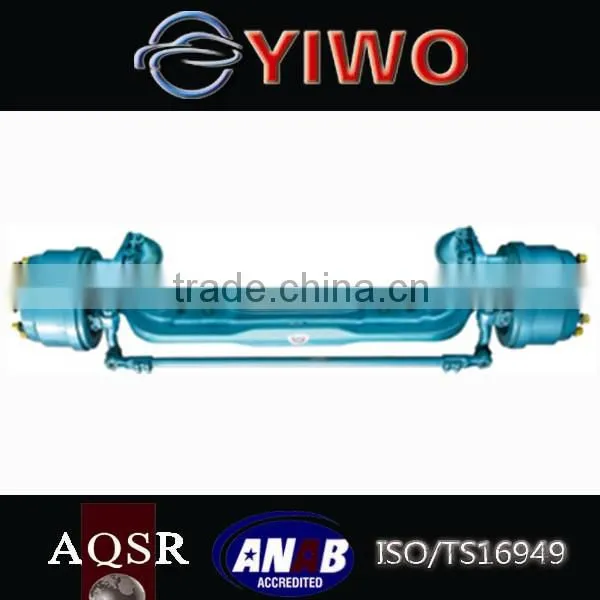

Name:9 Ton front axle (front steering axle)

Main technical parameters
Specifications:90Baxle 95Aaxle
Payload (KG) 90Baxle:9000 95Aaxle:9000
Max.steering angle of front inner wheel 90Baxle:47° 95Aaxle:42°
Self-weight (KG) 90Baxle:520 95Aaxle:540
Track (mm) 90Baxle:2028 95Aaxle:2050
Leaf spring center distance (mm) 90Baxle:860-900 95Aaxle:850-890
Kingpin centre (mm) 90Baxle:1748 95Aaxle:1790
Gap of front axle (mm) 90Baxle:127 95Aaxle:127
Diameter of hub bolt distributed cicular (mm) 90Baxle:Φ335 95Aaxle:Φ335
Brake specification 90Baxle:Φ420*175 95Aaxle:Φ420*175
Kingpin inclination angle (mm) 90Baxle:6.75° 95Aaxle:6°
camber angle 90Baxle:0.25°95Aaxle:1°
Toeing-in (mm) 90Baxle:0-2 95Aaxle:0-2

About Us

Shanghai YIWO Part&Equipment Co.,Ltd, engages in manufacturing Truck axles & Trailer axles & Tractor axles and axle parts since 1986 years, having achieved ISO/TS16949 Accreditation in 2002.

Now Shanghai YIWO is producing over 200 sorts axles, which are well known home and abroad.

Main products includes:Lightweight truck axle & Midium truck axle & heavy duty truck axle & off road wide body truck axle & BPW trailer axle & Fuwa trailer axle & big horsepower tractor axle & axle parts & Air Suspension & Single Point Suspension (Bogie / Boogie)& Suspension Parts and so on .
All the Above axle including front axle & rear drive axle & rear non drive axle & Suport axle & steering axle and so on.

We also Produce off road mining dump haul truck, including 40 ton, 60 ton ,70 ton mining haul truck.Now our mining haul truck occupy 50% China Market.

1. Shanghai YIWO is Supplier of China best brand truck, Like FAW,FOTON,SINOTTUK,Beiben,JAC and so on.
2. Shanghai YIWO OEM factory All kinds of Truck axles & Trailer axles & Tractor axles and axle parts
3. Any requests or drawings are welcome.

Sincerely do expect to enter into business relations with you soon.
