Specifications
1. 12T hydraulic roller2. Cummins /SHANGCHAI
3. Hydraulic
4.single drum
5. good quality and competitive price

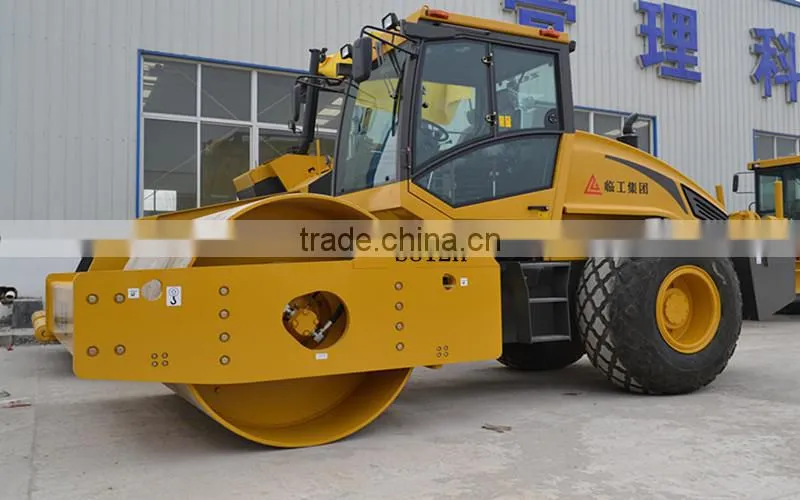

12T HYDRAULIC SINGLE DRUM ROAD ROLLER
I . Company Information
1.Shandong ZOT Machinery Co.,LTD is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
2. The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of T series loader, G series loader, Backhoe loader, Road roller, Motor grader, Excavator, Paver, Bulldozer, Forklift, Truck crane, Rim, Valve, etc.
II. Product Description
SDLG-ZOT brand road roller,
Hydraulic driving type: S812H,S814H,S816H,S818H,S820H,S822H (10t-22t)
Shangchai engine, Cummins engine, Detuz engine
SDLG axle
SAUER or PERMCO hydraulic system
Delivery time: 7-10 days normaly
Mechanical driving type: S812C, S814C, S816C,S818C, S820C, S822C, S826C(14t-26t)
Shangchai engine, Cummins engine,
SDLG axle
SAUER or PERMCO hydraulic system
Delivery time: 7-10 days normal
Technical specification
Type |
Unit |
S812H |
S814H |
S816H |
S818H |
Operating weight |
kg |
12000 |
14000 |
16000 |
18000 |
Weight on front drum |
kg |
6700 |
7000 |
7700 |
9000 |
Static linear load |
N/cm |
308 |
322 |
362 |
422 |
Speed range |
km/h |
0~10.4 |
0~10.5 |
0~10.51 |
0~10.51 |
Theoretical gradeability |
% |
45 |
30 |
30 |
30 |
Min. external turning radius |
mm |
6800 |
6800 |
6500 |
6500 |
Steering angle |
° |
±30 |
±30 |
±33 |
±33 |
Oscillating angle |
° |
±10 |
±11 |
±11 |
±11 |
Vibration frequency(L/H) |
Hz |
30 |
28 |
28 |
28 |
Nominal amplitude(H/L) |
mm |
1.80/0.9 |
1.9/0.95 |
1.9/0.95 |
1.9/0.95 |
Excitation force(H/L) |
kN |
290/180 |
274/137 |
290/145 |
320/160 |
Drum width |
mm |
2130 |
2130 |
2130 |
2130 |
Engine model |
|
Cummins 4B3.9 |
SC5D125G2B1 |
SC8D156.2G2B1 |
SC8D156.2G2B1 |
Type |
|
Water cooled, turbo-charged, air intercooling |
Water cooled, pressurized |
Water cooled, pressurized |
Water cooled, pressurized |
Rated power |
kW |
93 @2200r/min |
92 @2200r/min |
115@1800r/min |
115@1800r/mi |
III. Shipping means
18T road roller can be put in the 40HQ container, should remove the cabin.
