Specifications
22 wheels TPMS1.200 psi TPMS
2.instant installation
3.Improve fuel saving
4.Extend tire life

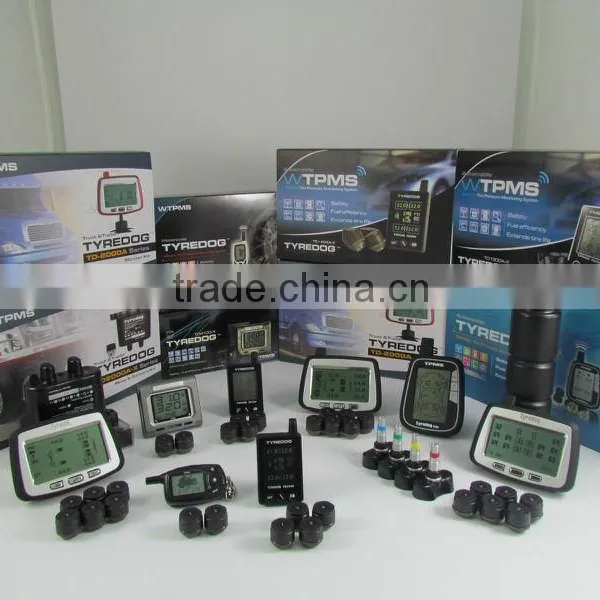

1. TD2000 AX Product package information
l Monitor kit
l Relay & sensor kit
2. TD2000 AX technical specification:.
Sensor Specification | |
Frequency |
315MHz |
Pressure range |
0 ~ 180PSI. |
Accuracy |
Tire pressure ±3 PSI / temperature ±2 °C |
Operating voltage |
3V DC |
Operating temperature |
-40°C~125°C |
Dimensions |
20.5mm X 20mm |
Weight |
10g(±1g) |
Battery life |
1~2 years (depends on working hours per day) |
Monitor Specification | |
Frequency |
315 MHz / 433.92MHz/2.4GHz |
Operating voltage |
3VDC |
Operating temperature |
-20°C~80°C |
Dimensions |
102mm X 72mm X29mm |
Weight |
143 g |
Battery life |
1 year (depending on daily operation time) |
Relay Specification | |
Frequency |
315 MHz / 433.92MHz/2.4GHz |
Operating temperature |
-40°C~85°C |
Dimensions |
105mm X 50mm X85mm |
Weight |
200g |
3. Product features:
DIY installation
Simply screw the sensors onto the valve stems in the place of valve stem caps.
Light and compact
Extremely lightweight and compact with specially designed electronic sensors.
Accurate tyre pressure sensors
Electronic tyre pressure sensors are accurate to /- 1 PSI.
RoHS compliance
All components are complied with environmental protection requirements.
Abnormal pressure warming
The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.
Anti theft sensor mounting design
Each of the tyre pressure sensor is provided with a specially designed locknut. This secured it tightly onto the valve stem and prevents easy removal.
Transmission status display
The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.
Biggest capacity tp support
Support up to 22 wheels in the 1 st version;36 wheels support is coming in the next version.
180 P.S.I
Truck sensor can support monitoring tyre preddure to 180 P.S.I
Auto switching process
Switching trailers without manual setting.
Battery power status display
The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.
LCD monitor
The LCD monitor displays the 22 tyres pressures. This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.
4. Other Series
5.Certificates
6.Welcome to visit my website:.tw/index.asp
