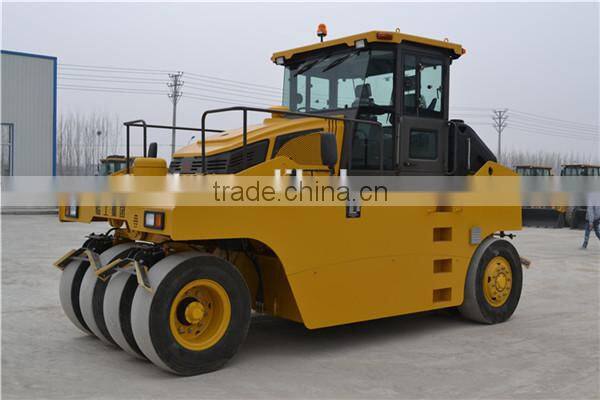

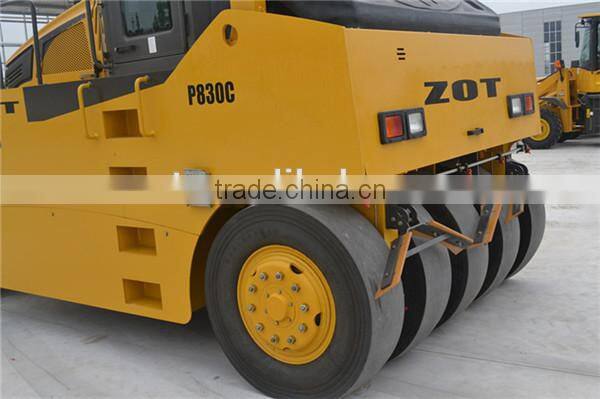

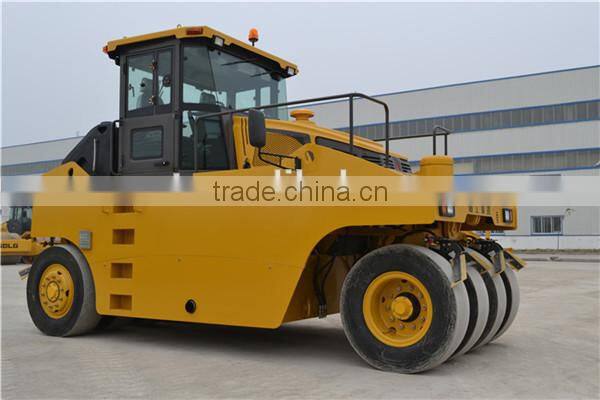

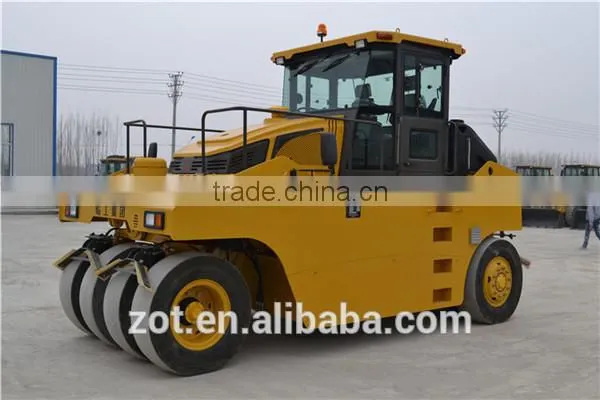

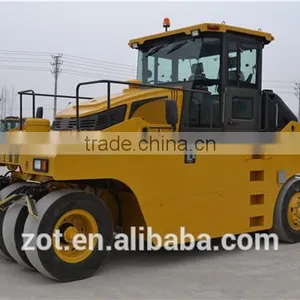

Help CenterVOLVO SDLG Made 30ton Tyres Model Road Roller P830 Popular for SAUDI
Related Products
-
3 Ton Double Drum Road Roller With Cheap PriceUS$ 2,000 - 2,350MOQ: 1 Unit -
Double Drum Road Roller 3 TonUS$ 2,000 - 2,350MOQ: 1 Unit
-
Small Hydraulic Vibratory Road Roller 4tonsUS$ 2,000 - 2,350MOQ: 1 Unit
-
10T Full Hydraulic Double Drive Road Roller With Cummins Engine ,sheep Foot for SaleUS$ 30,000 - 70,000MOQ: 1 Unit
-
12T Full Hydraulic Double Drive Road Roller With Cummins Engine ,sheep Foot for SaleUS$ 30,000 - 70,000MOQ: 1 Unit
Specifications
1,Heavy load 30tong model road roller.2,cummins and shanghai diesel engine.
3,reliable in action,high quality..SDLG
| Model | Unit | P830 |
|---|---|---|
| Min. working weight | kg | 16000 |
| Max. working weight | kg | 30000 |
| Water counterweight weight | kg | 1600 |
| Counterweight weight | kg | 11500 |
| Theoretical gradeability | % | 20 |
| Min. turning external radius | mm | 9000 |
| Min. ground clearance | mm | 290 |
| Tyre overlap amount | mm | 70 |
| Front wheel swing range | mm | ±50 |
| Compaction width | mm | 2365 |
| Ground pressure | kPa | 250~460 |
| Wheel base | mm | 3840 |
| Travel speed | km/h | 0~8 |
| km/h | 0~20 | |
| Tyre specification | 13/80-20 | |
| Tyre tread | Smooth | |
| Tyre amount | Front 4 rear 5 | |
| Engine model | D6114ZG10B | |
| Rated speed | r/min | 2000 |
| Rated power | kw | 115 |
| Engine oil consumption | g/kW•h | 224 |
| Water tank capacity | L | 1600 |
| Hydraulic oil tank capacity | L | 100 |
| Fuel tank capacity | L | 180 |
MODEL |
|
S814C S812C |
Operating mass |
Kg |
14000 12000 |
Static linear load |
N/cm |
315 |
Vibration amplitude |
Hz |
30 |
Vibration fraquency |
mm |
1.8/1.0 |
Centrifugal force |
kN |
261/145 |
Travel speed |
|
|
1st gear |
Km/h |
2.6 |
2nd gear |
Km/h |
4.6 |
3rd gear |
Km/h |
10.5 |
Grade ability |
% |
30 |
Turning angle |
o |
32 |
Ground clearance |
mm |
433 |
Bectrical voltage |
v |
24 |
Turning radius |
mm |
6400 |
Vertical oascill ation |
|
8-10 |
Type size |
|
23.1-26 12pr |
Overall length |
mm |
5990 |
Overall width |
mm |
3038 |
Overall hieght |
mm |
3050 |
Vibration round width |
mm |
2130 |
Drum diameter |
mm |
1600 |
Drum rim thickness |
mm |
24 |
Wheelbase |
mm |
3160 |
Diesel model |
ENGINE |
Shanghai SC5D125G2B1 (CUMMINS FOR OPTIONAL) |
Diesel power |
kW |
92 |
Diesel speed |
r/min |
2200 |
Fuel tank capacity |
L |
200 |
Hydraulic tank capacity |
L |
200 |
1.Delivery Time: Cat engine have in stock,cummins engine need 15 working days after receiving down payment.
2.Guarantee Time: one year or 1800 working hours which comes first after the date of B/L.
3.Payment Terms: By TT--30% should be paid after singing contract, and 70% should be paid before goods dispatching from the factory.
